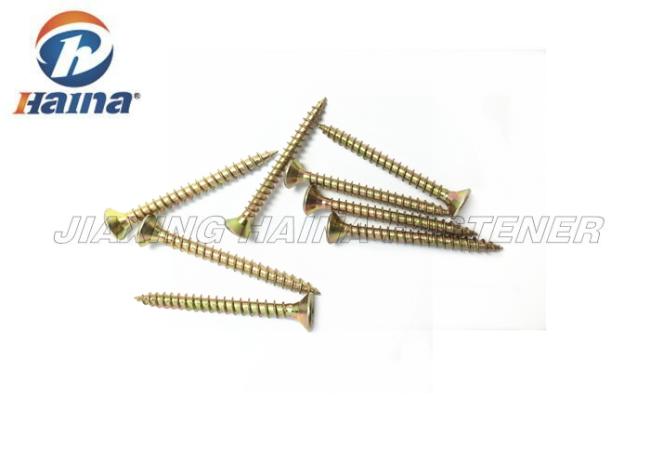

DIN7505 5X30mm Pozi Drive Csk Head Self Tapping Screws Yellow Zinc Plated 30MM Length
DIN7505 5X30mm Pozi Drive Csk Head Chipboard Screws Self Tapping Metal Screws
Description:
Chipboard screws are a ind of product which is through heat treatment process. It is suitable for power tools to install. The chipboard screws are mainly used for wood panels, wooden boards and steel sheet and the connection between the fastening. To a large extent, it can replace the use of ordinary wood screws (wood screws without heat treatment). At the same time, wood screws present, first proposed by beacons shrink rod production process, not only to save material, and thread sharper. It is sinmilar with the drywall screws. Drywall screws are different to the exterior in the feature is the trumpet shape, which is divided two-lane fine pitch drywall screws and drywall screws coarse thread single line. the biggest difference between the two is that the former is a dual thread screw for gypsum board with a thickness of not connect more than 0.8mm of metal between the keel, which is suitable for plasterboard and wood keel connection.
Drywall screw fastener product line throughout the series is the most important categories. The product is mainly used for a variety of gypsum board, light wall and ceiling mounting ceiling series.
Specification:
Name: |
3.5*25mm C1022 Hardend Steel Black Phosphated Drywall Screws Self Tapping Metal Screws |
Raw Material : |
CARBON STEEL C1022A |
| Quality : | Grade A Quality |
| MOQ : | 300,000PCS |
| Specifications: | Different shape size according to client's requirement |
| Surface : | Yellow Zinc, Galvanized (Various of color), blackened, phosphating |
| Professional: | Specialized in fastener products more than 10 years |
| Packing : | IN BULK :canton/pallet, Small Boxs/carton/ pallet, or customer request |
| Payment terms : | T/T,L/C,D/P,WESTERN UNION ,ETC... |
| Delivery time : | In 20-30 Days |
| SIZES | PCS/BOX | KGS/BOX | LBS/BOX | BOX/CTN | PCS/CTN | KGS/CTN |
| 3.5*16 | 1,000 | 0.90 | 2.0 | 16 | 16,000 | 14.4 |
| 3.5*19 | 1,000 | 1.00 | 2.2 | 16 | 16,000 | 16.0 |
| 3.5*25 | 1,000 | 1.20 | 2.6 | 12 | 12,000 | 14.4 |
| 3.5*32 | 500 | 0.78 | 1.7 | 16 | 8,000 | 12.5 |
| 3.5*35 | 500 | 0.82 | 1.8 | 16 | 8,000 | 13.1 |
| 3.5*38 | 500 | 0.90 | 2.0 | 12 | 6,000 | 10.8 |
| 3.5*41 | 500 | 0.96 | 2.1 | 12 | 6,000 | 11.5 |
| 3.5*45 | 500 | 1.00 | 2.2 | 12 | 6,000 | 12.0 |
| 3.5*51 | 500 | 1.15 | 2.5 | 8 | 4,000 | 9.2 |
| 3.5*55 | 500 | 1.21 | 2.7 | 8 | 4,000 | 9.7 |
| 3.9*64 | 250 | 0.85 | 1.9 | 12 | 3,000 | 10.2 |
| 3.9*70 | 250 | 0.95 | 2.1 | 12 | 3,000 | 11.4 |
| 3.9*76 | 250 | 1.00 | 2.2 | 12 | 3,000 | 12.0 |
| 4.2*19 | 1,000 | 1.45 | 3.2 | 16 | 16,000 | 23.2 |
| 4.2*25 | 1,000 | 1.80 | 4.0 | 12 | 12,000 | 21.6 |
| 4.2*32 | 500 | 1.10 | 2.4 | 16 | 8,000 | 17.6 |
| 4.2*35 | 500 | 1.20 | 2.6 | 16 | 8,000 | 19.2 |
| 4.2*38 | 500 | 1.28 | 2.8 | 12 | 6,000 | 15.4 |
| 4.2*41 | 500 | 1.38 | 3.0 | 12 | 6,000 | 16.6 |
| 4.2*45 | 500 | 1.50 | 3.3 | 12 | 6,000 | 18.0 |
| 4.2*51 | 500 | 1.60 | 3.5 | 8 | 4,000 | 12.8 |
| 4.2*55 | 500 | 1.75 | 3.9 | 8 | 4,000 | 14.0 |
| 4.2*64 | 250 | 0.95 | 2.1 | 12 | 3,000 | 11.4 |
| 4.2*70 | 250 | 1.00 | 2.2 | 12 | 3,000 | 12.0 |
| 4.2*76 | 250 | 1.10 | 2.4 | 12 | 3,000 | 13.2 |
| 4.2*90 | 250 | 1.32 | 2.9 | 12 | 3,000 | 15.8 |
| 4.2*100 | 200 | 1.42 | 3.1 | 12 | 2,400 | 17.0 |
| 4.8*90 | 200 | 1.48 | 3.3 | 12 | 2,400 | 17.8 |
| 4.8*95 | 200 | 1.60 | 3.5 | 12 | 2,400 | 19.2 |
| 4.8*102 | 200 | 1.65 | 3.6 | 12 | 2,400 | 19.8 |
| 4.8*127 | 100 | 1.05 | 2.3 | 12 | 1,200 | 12.6 |
| 4.8*152 | 100 | 1.25 | 2.8 | 12 | 1,200 | 15.0 |
Mainly sizes:
| #8*13 | # 12 X 40 |
| #8*15 | # 12 X 50 |
| #8*19 | # 12 X 57 |
| #10*16 | # 12 X 60 |
| #10*19 | # 12 X 65 |
| #10*22 | # 12 X 75 |
| #10*25 | # 12 X 85 |
| #10*40 | # 12 X 90 |
| # 12 X 20 | #12*115 |
| # 12 X 25 | #12*125 |
| # 12 X 30 | # 14 X 25 |
Application:
Chipboard screw is a kind of after heat treatment process, is suitable for the products, electric tools installation is mainly used for wooden board, wooden board and the connection between the steel sheet and tighten.
Advantages:
1. Over world market;
2. Less MOQ;
3. Competitive Price;
4. Quick response;
5. Short Delivery time;
