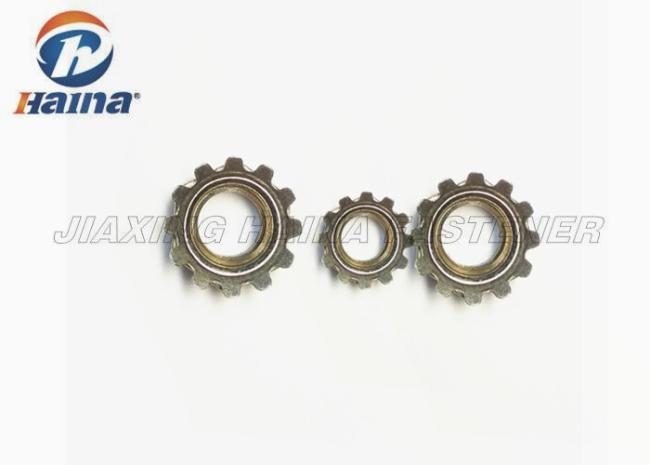

Stainless Steel 18 - 8 Plain Color Keps K - Lock Nuts With Free Spinning Washer
Stainless Steel 18 - 8 Plain Color Keps K - Lock Nuts With Free Spinning Washer
1. Product Description
A Keps nut, also called a K-nut or washer nut, is a nut with an attached, free-spinning washer. It is used to make assembly more convenient. Common washer types are star-type lock washers, conical, and flat washers
Hex Nut with assembled free spinning External Tooth Lockwasher. The lockwasher creates the locking feature against the bearing surface of the nut and the mating surface.
K-lock Nut (Keps nuts) have a ring of "teeth" on one side of them. These teeth will grip the piece they are being installed on. This means you DO NOT need to use an open-ended wrench to tighten them (but it is still recommended). These nuts are installed with the teeth facing the structure. These nuts can loosen up over time if not properly tightened; however they will work great in most applications.
2. Specification
| K-Lock Nut Size (mm) | ||||
| Thread | Pitch | A.W | H.T | A.F |
| M2.5 | 0.45 | φ 6.00-φ 6.3 | 2.5-2.7 | 4.5-5.0 |
| M3 | 0.5 | φ 7.00-φ 7.26 | 2.9-3.3 | 5.3-5.5 |
| M4 | 0.7 | φ 7.85-φ 8.15 | 3.8-4.2 | 8.0-8.2 |
| M5 | 0.8 | φ 9.05-φ 9.30 | 4.8-5.2 | 7.78-8.0 |
| M6 | 1 | φ 10.85-φ 11.15 | 5.8-6.2 | 9.78-10.0 |
| M8 | 1/1.25 | φ 14.70-φ15.00 | 7.5-7.9 | 14.6-14.8 |
| #4 | 0.635 | φ7.00-φ7.26 | 2.7-3.0 | 6.12-6.35 |
| #6 | 0.793 | φ8.60-φ8.80 | 3.3-3.75 | 8.7-8.9 |
| #8 | 0.793 | φ9.40-φ9.60 | 3.8-4.2 | 8.43-8.73 |
| #10 | 1.058 | φ10.00-φ10.30 | 3.85-4.25 | 10.4-10.6 |
3. Application
is another type of lock nut. Its a hex nut pre-assembled with a free spinning external tooth lock washer. The teeth pattern of the washer bite into both the nut and the base material to prevent loosening caused by vibration. The locking action is achieved when the nut is tightened against a bearing surface as the teeth of the lock washer dig into it. Click here for dimensions of or Metric
4. Advantages
As a family owned business, our goal has always been to provide customers with unmatched personalized service and support. Knowledge gained as both an applicator and a chemical manufacturer gives us extra insight and control over how to meet even the toughest requirements. Our processing divisions deal directly with regional customers and pride themselves on their quality and delivery.
As a fully integrated company, we do it all. We make the materials, build the application equipment and handle all aspects of operations from formulating custom chemical compositions and coating fasteners to providing advanced in-line inspection, packaging and delivery services. Find out how we can assist you on your next project.
5. More pictures
