Blue / White Stainless Steel Hooks M6 - M24 Full Thread Grade 8.8 Screw Eye
Blue / White Stainless Steel Hooks M6 - M24 Full Thread Grade 8.8 Screw Eye
Description:

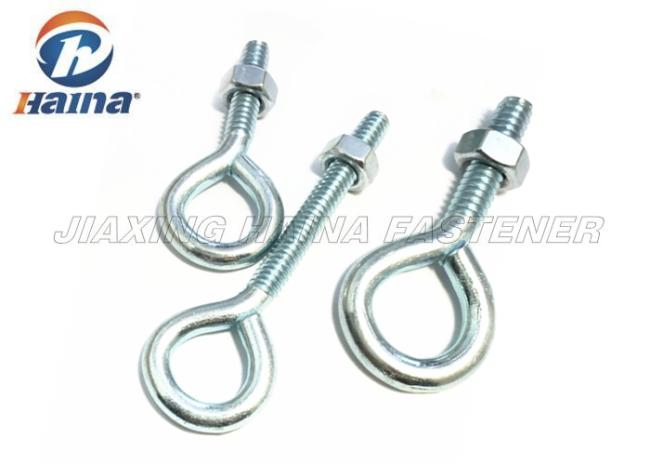

Eye bolts, also known as eye screw, etc., are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration. An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it.
Refinement eyebolt can improve the integrated quality of your product.Screw rings forging a whole, and by normalizing treatment and removal of scale; forgings no over-burning, crack defects; screw rings unity through hardness test, hardness value HRB67 ~ 95. Crown screw rings force strength rating 12.9.
Screw rings must be mounted vertically with the upper plane of the workpiece, and the joints should be smooth, engaging require close. You must adjust to the stretching direction of the screws to avoid contact with sharp edges of objects.
Specification:
| Name | Blue / White Stainless Steel Hooks M6 - M24 Full Thread Grade 8.8 Screw Eye |
| Place of O rigin | Jiaxing,Zhengjiang,China |
| Size | M6-M24 |
| Length | non - standard as request & design |
| Standards | GB, DIN, ISO, ANSI/ASTM |
| Material | Carbon steel etc. |
| Surface | Oassivation,Plain,hot galvanized, bule white, etc |
| Delivery | 15-20days |
| Package | 25KG/CTN,36CTNS/PLT, or according to customers' requirement |
| Payment | T/T 30% per 70%balance before shipment |
| Non-standards | OEM is available if you provide a drawing or sample. |
| Samples | Samples are free. |
| Website | www.hainafastener.com |
| SIZE(inch) | W.L.L.(lbs) | THREAD LENGTH(inch) | I.D.OF EYE(inch) | N.W.(lbs/100pcs) |
| 1/4x2 | 650 | 1 1/2 | 1/2 | 6 |
| 5/16X2-1/4 | 1200 | 1 1/2 | 31/50 | 18 3/4 |
| 3/8X2-1/2 | 1550 | 1 1/2 | 3/4 | 24 32/97 |
| 3/8X6 | 1550 | 2 1/2 | 3/4 | 43 3/4 |
| 1/2X6 | 2600 | 3 | 1 | 62 1/2 |
| 1/2X10 | 2600 | 3 | 1 | 88 |
| 5/8X4 | 5200 | 2 | 1 1/4 | 101 1/4 |
| 5/8X8 | 5200 | 3 | 1 1/4 | 131 |
| 5/8X12 | 5200 | 4 | 1 1/4 | 175 |
| 3/4X6 | 7200 | 3 | 1 1/2 | 180 |
| 3/4X10 | 7200 | 3 | 1 1/2 | 237 1/2 |
| 3/4X15 | 10600 | 5 | 1 1/2 | 300 |
| 7/8X8 | 10600 | 4 | 1 3/4 | 325 |
| 1X6 | 13300 | 3 | 2 | 425 |
| 1X12 | 13300 | 4 | 2 | 550 |
| 1-1/4X8 | 21000 | 4 | 2 1/2 | 750 |
| 1-1/4X20 | 21000 | 6 | 2 1/2 | 1150 |
Application:
Eye bolt are widely used in ports, power, steel, shipbuilding, petrochemical, mining, railways, construction, metallurgy, automobile manufacturing, plastics machinery, industrial control, highways, large transport, pipelines and auxiliary set, slope tunnels, wells control protection, salvage, ocean engineering, airport construction, bridges, aviation, aerospace, and other important venues and infrastructure construction industry, machinery and equipment.
Advantages:
1. Professional manufacturer for bolt, screw, nut, washer, threaded rod, anchor
2. More than 8 years experience.
3. 100% inspection on critical dimensions.
4. Small orders are acceptable,
5. Strong ability for R&D.
