ASME Standard High Strength Metric Stainless Steel U Bolts For Pipe
ASME Standard High Strength Metric Stainless Steel U Bolts For Pipe
Description:

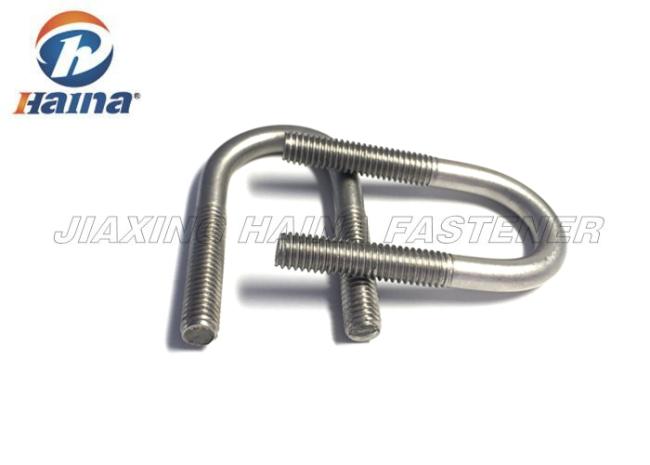

A U-bolt is a bolt in the shape of the U with thread on both ends. It also has square shape.
U-bolts have mainly been used to support pipe use, pipes through which fluids and gasses pass. As such, U-bolts were measured using pipe-work engineering speak. A U-bolt would be described by the size of pipe it was supporting.
For example, a 40 Nominal Bore U-bolt would be asked for by pipe work engineers, and only they would know what that meant. In reality, the 40 nominal bore part bears little resemblance to the size and dimensions of the U-bolt.
The nominal bore of a pipe is actually a measurement of the inside diameter of the pipe. Engineers are interested in this because they design a pipe by the amount of fluid / gas it can transport.
The material can be stainless steel and carbon steel, or we can produce as customer requirements.
Specification:
| Name: (Maichuan) | ASME Standard High Strength Metric Stainless Steel U Bolts For Pipe |
| Thread Type | UNC, UNF, UNEF, M, BSW, BSF, TR, ACME, NPT TP |
| Material | Alloy Steel(40Cr/35CrMo/4140) Stainless Steel 304 316 316L |
| Dimension | Metric size from 6mm-100mm, Inch size from 1/8"-3-1/2". |
| Surface treatment | Plain, black finished, Zinc plated (Galv), Hot DIP Galvanized, Nickel, phosphate black, DACRO coating, etc. |
| Production Technique | Cold forging, Hot forming, Machining, Heat treatment, Staming, etc |
| Grade | A2 A4 |
| Tolerance | 6g |
| Material | C | Si | Mn | P | S | Ni | Cr | Mo |
| 201 | 0.15 | 1 | 5.5-7.5 | 0.06 | 0.03 | 3.5-5.5 | 16-18 | |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.0-10.0 | 18-20 | |
| 304L | 0.03 | 1 | 2 | 0.045 | 0.03 | 8.0-12.0 | 18-20 | |
| 321 | 0.08 | 1 | 2 | 0.045 | 0.03 | 8.0-13.0 | 17-19 | |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.0-14.0 | 16-18 | 2-3 |
| 316L | 0.03 | 1 | 2 | 0.045 | 0.03 | 10.0-15.0 | 16-18 | 2-3 |
| 410 | 0.15 | 1 | 0.03 | - | 11.5-13.5 | |||
| 420 | 0.26-0.4 | 1 | 0.03 | - | 12-14 | |||
| 430 | 0.12 | 0.75 | 1 | 0.04 | 0.03 | - | 16-18 |
Application:
Oil and Gas. Pipe use
Advantages:
1. Specialized in manufacturing electric power fittings.
2. Rich manufacture experience.
3. High quality with competitive price.
4. Domestic and Overseas markets.
5. Well equipped with complete facilities.
6. Strict quality control and excellent after-sales service.
7. Strict quality control
