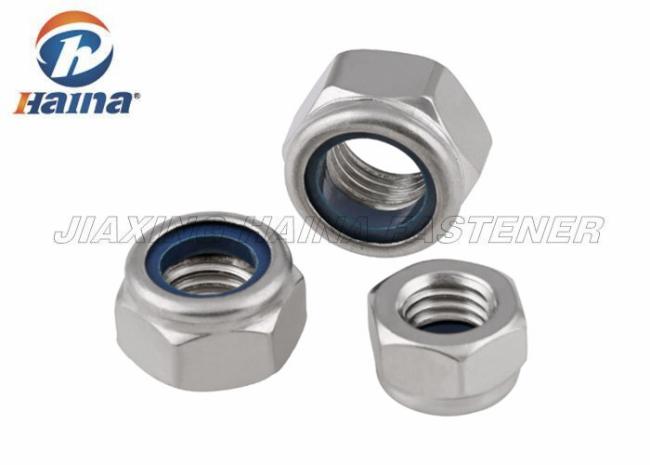

Stainless Steel 304 DIN985 DIN982 Metric Thead Hex Nylon Inset Lock Nuts
Stainless Steel 304 DIN985 DIN982 Metric Thead Hex Nylon Inset Lock Nuts
1. Product Description
A nylock nut, also referred to as a nylon-insert lock nut, polymer-insert lock nut, or elastic stop nut, is a kind of nylock nut It is a nut with a nylock collar insert that resists turning.
Rely nylon washers to play a role in the locking nut, called nylon lock nuts, commonly referred to within the industry Nepalese cap. Mainly with threaded screw or bolt connection with the use, after locking nylon ring will be deformed, connecting both ends of the member to fill the gap, and thus play a role in locking.
One common problem with standard nut-and-bolt fasteners is that they can become loose or even work themselves free over time and with vibration. Chemical thread-locking compounds work well at reducing the occurrence of loosening nuts, however, this can be very time-consuming and, in difficult-to-reach areas, nearly impossible. The nyloc nut allows a bolt to be tightened without fear of it loosening under nearly any condition, and typically there is no more difficulty in installing the nylon locking nut than a conventional non-locking nut. One drawback to using a nyloc nut is that the nut cannot be threaded tight by using fingers alone. The nylon insert requires that a wrench be used on the nut once the threads come into contact with the nylon inside the fastener.
2. Specification
| DIN 985 nylon lock nut | |||||||||||||
| d1 | M2 | M2.5 | M2.6 | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 |
| e min. | 4.91 | 5.51 | 5.51 | 6.01 | 6.64 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 |
| h max. | 2.5 | 3.8 | 3.8 | 4 | 4.5 | 5 | 5 | 6 | 7.5 | 8 | 10 | 12 | 14 |
| m | 1.6 | 2 | 2 | 2.4 | 2.6 | 2.9 | 3.2 | 4 | 4.7 | 5.5 | 6.5 | 8 | 9.5 |
| s | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 16 | 18 | 21 |
| d1 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 |
| e min. | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 72.09 | 76.95 | 82.6 |
| h max. | 16 | 18.5 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 |
| m | 10.5 | 13 | 14 | 15 | 15 | 17 | 19 | 22 | 25 | 27 | 29 | 32 | 36 |
| s | 24 | 27 | 30 | 34 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 |
3. Application
Application: locking connector through the wire, or other tube.
Nut works by using friction between the nut and bolt self-locking. However, in such a dynamic load lock reliability is reduced. In some important occasions and we'll take some anti-loosening measures to ensure the reliability of the locking nut. Locknut is one of them against rotation.Role: Principles for locking effect: Vice screw during installation, the threaded bolt nut embedded in nylon extrusion, such as nylon deformed after installation, and nylon thread completely press contact, extruded nylon bolt produces a lot of resilience, this force so that the bolt is not easy to loose nylon self-locking nut is a new high-vibration-resistant locking fasteners, can be applied to a temperature of -50 ~ 100 ℃ various mechanical, electrical products .
4. Advantages
As a fully integrated company, we do it all. We make the materials, build the application equipment and handle all aspects of operations from formulating custom chemical compositions and coating fasteners to providing advanced in-line inspection, packaging and delivery services. Find out how we can assist you on your next project.
1. Top quality control. Quality is the soul of company, is the impulsion to drive us forward constantly.
2. Competitive price.
3. Customer's design and logo are welcome.
4. Good after sales service. Any small problems will be solved at once.!
5. Efficiency! The many years of experience of the team can help you with your requirements.
5. More pictures
