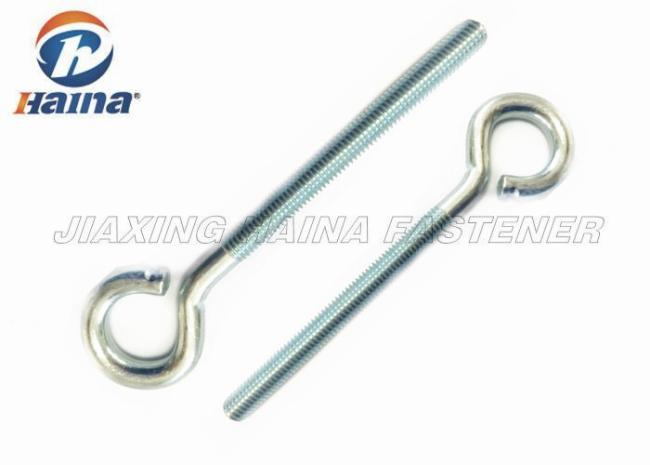

Yellow Zinc Plated Custom Fasteners 1/4"-20 X 1-1/2" Shank Length Turned Eye Bolt
Yellow Zinc Plated Class 4.8 Steel 1/4"-20 x 1-1/2" Shank Length Turned Eye Bolt
1. Product Description
Sheep eye bolts, also known as sheep eye, sheep eye, sheep eye nail sheep eye screws, etc., are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration.
Eye bolts feature a closed loop design that secures cables and chains in order to support the weight of heavy hanging objects such as plumbing pipes and wires.
When the user simply wants to hang an item on a wall, she can push the point of the screw into the wall and rotate it by holding on to the circular end. If the wall or wood is soft enough, the screw will go in. If not, a wrench or other tool may be required. Once the thread has been screwed into the wall, a wire or a hook is placed through the circular end to support the item. If the eye screw is removed, a small hole will be left behind unless the owner has it filled in.
Eye bolt surface treatment: hot-dip galvanizing, black, white coating, plating color, and other anti-corrosion measures,
materials are: Q235,45 #, 40Cr, 35CrMoA, stainless steel 304 316 stainless steel and the like.
2. Specification
| Size (B) |
Inside Eye Diameter (D) |
Overall Length (E) |
Thread Length (F) |
|---|---|---|---|
| 8-32 (A) | |||
| 1-1/8 | 1/4 | 1-5/8 | 1 |
| 10-24 (A) | |||
| 3/4 | 3/8 | 1-1/2 | 3/4 |
| 1 | 3/8 | 1-3/4 | 7/8 |
| 1-5/16 | 5/16 | 2 | 1-5/16 |
| 1-1/2 | 3/8 | 2-1/4 | 1-3/8 |
| 1-3/4 | 3/8 | 2-1/2 | 1-5/8 |
| 2 | 3/8 | 2-3/4 | 1-7/8 |
| 2-1/4 | 3/8 | 3 | 2-1/8 |
| 12-24 (A) | |||
| 1-1/2 | 3/8 | 2-3/8 | 1-3/8 |
3. Application
The advantage of an eye screw is that it allows the user to hang things from it and takes little time to install. It may be used to attach two materials together or simply to hang a picture on a wall. They are also used to hook cables together for supporting objects. The eye screw can only hold a certain amount of weight, however, and is best for holding light to medium-weight objects. For this reason it is not the best choice to use in heavy construction.
Turned Wire with machine threads create the Turned Eye Bolt. Turned Eye Bolts are often used to guide wire or rope. They can, also, be used for in a tie-down application. Turned Eye Bolts should be used for light-duty applications and never used for overhead lifting applications. Zinc plating, retards the corrosion rate in a normal atmosphere.
4. Advantages
Jiaxing Haina Fastener Co. Ltd provide you with the highest quality products and services, and welcomes your comments, questions and concerns. Please complete the form below to send a message to our customer service department and a representative will get back to you as soon as possible.
5. More pictures
