Description:

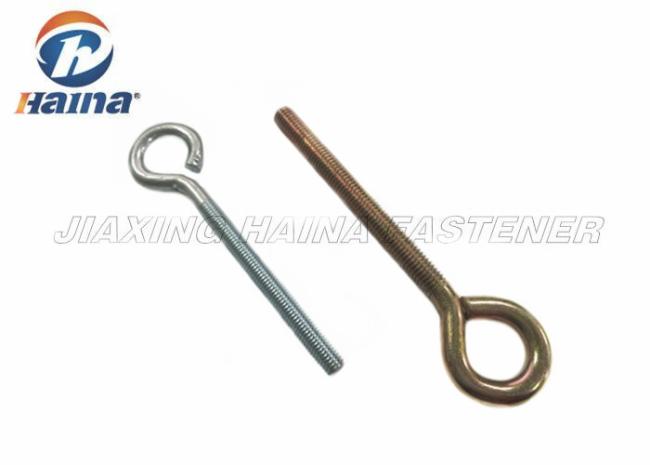

Screw eye, also called eye screw, is a wood screw with a head in the form of a loop.
Eye bolts, also known as eye screw, etc., are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration. An eye bolt is a bolt with a loop at one end. They are used to firmly attach a securing eye to a structure, so that ropes or cables may then be tied to it.
The material can be Stainless Steel 18-8, Brass, Carbon Steel, Aluminum and so on. The surface treatment can be zinc plated, plain,polish and black, ect.
Wire eye lags (also called as screw thread eye bolts, eye screws, or turned/bent eye lags, screws eye, eye hook, eye hook screw) have a wood screw thread for use in wood or lag anchors. Like wire eye bolts, wire eye lags are intended for soft applications.
There are many types of eye screws: such as forged eye bolt with nuts, wire eye bolts, forged machine eye bolt, forged eye bolt with shoulder, weld rye bolt, weld lag screws and so on.
My company supply various kinds of eye screw, such asBest Eye Bolt Stainless Steel Bolt Eye Screw Hook Screw Eye, stainless steel DIN580 eye bolt, DIN580, DIN580 eye bolt, din444 eye bolt, which is made of different material, stainless steel eye screw,screw eye hook, carbon steel eye screw,screw eye hook, galvanized steel eye screw,screw eye hook,, zinc plated eye screw,screw eye hook,, and any other types eye bolt according to customers' request, and many types of bolts, screws, washers, etc.
If you are interested in our products, welcome to give us a call or send us an e-mail with your request for quote or stock checks.
Specification:
| Name | Galvanized Stainless Steel Wire Eye Lag Eye Bolts Eye Screws for Rigging with Weld Hook |
| Place of Origin | China |
| Length | non - standard as requirement & design |
| Standards | GB, DIN, ISO, ANSI/ASTM |
| Material | Carbon steel, stainless steeletc. |
| Surface | Oassivation,Plain,hot galvanized, bule white, etc |
| Delivery | 10-20days |
| Package | 25KG/CTN,36CTNS/PLT, or according to customers' requirement |
| Payment | T/T 30% per 70%balance before shipment or against the copy of BL. |
| Non-standards | OEM is available. |
| Samples | Samples are free. |
| Website | www.hainafastener.com |
| SIZE(inch) | W.L.L.(lbs) | THREAD LENGTH(inch) | I.D.OF EYE(inch) | N.W.(lbs/100pcs) |
| 1/4x2 | 650 | 1 1/2 | 1/2 | 6 |
| 5/16X2-1/4 | 1200 | 1 1/2 | 31/50 | 18 3/4 |
| 3/8X2-1/2 | 1550 | 1 1/2 | 3/4 | 24 32/97 |
| 3/8X6 | 1550 | 2 1/2 | 3/4 | 43 3/4 |
| 1/2X6 | 2600 | 3 | 1 | 62 1/2 |
| 1/2X10 | 2600 | 3 | 1 | 88 |
| 5/8X4 | 5200 | 2 | 1 1/4 | 101 1/4 |
| 5/8X8 | 5200 | 3 | 1 1/4 | 131 |
| 5/8X12 | 5200 | 4 | 1 1/4 | 175 |
| 3/4X6 | 7200 | 3 | 1 1/2 | 180 |
| 3/4X10 | 7200 | 3 | 1 1/2 | 237 1/2 |
| 3/4X15 | 10600 | 5 | 1 1/2 | 300 |
| 7/8X8 | 10600 | 4 | 1 3/4 | 325 |
| 1X6 | 13300 | 3 | 2 | 425 |
| 1X12 | 13300 | 4 | 2 | 550 |
| 1-1/4X8 | 21000 | 4 | 2 1/2 | 750 |
| 1-1/4X20 | 21000 | 6 | 2 1/2 | 1150 |
Application:
Eye hook screws are widely used in jewelry, hanging accessories, but also one of the common hardware accessories architectural decoration.
Advantages:
1. Professional in bolt, screw, nut, washer, threaded rod, anchor
2. Rich experience.
3.100% inspection on critical dimensions.
4. Small orders are acceptable,
5..Non-standard/standard/OEM/ODM/Customized service are provided.
