SS316 SS304 316L Plain Color Steel Flat Washer A2 -70 Flat Metal Washers
SS316 SS304 316L Plain Color Steel Flat Washer A2 -70 Flat Metal Washers
1.Product Description
Stainless steel A2-70 cushion, used to prevent loosening, cushion can protect the contact surface of the elastic pad lock mainly in order to keep a pre-tightening force between fasteners in its elastic deformation range.
The main function of the flat cushion is to increase the contact area between the washer bolt or nut and the surface of the parts. At the same time, the spring washer plays a locking role.
When using flat washer, we should pay attention to the strength and thickness of the washer. The main purpose of flat washer is to protect the surface fasteners and prevent scratching. Spring cushion is anti-loosening. But some important connectors, such as compression friction, mainly rely on local power transmission, not using spring cushion, with R. Strict compliance with requirements will not cause unnecessary trouble.
2.Specification
| Item | Flat washers | ||||||
| Standard: | DIN 125 | ||||||
| Material | Stainless Steel: SS201 SS304/SS304L SS316/SS316L SS904 |
||||||
| Production Process |
M2-M100 | ||||||
| Stock Products | Stainless steel: All DIN Standard stainless steel products |
||||||
|
d |
dc | h | |
|---|---|---|---|
| 1.6 (1.7-1.84) |
3.7-4 |
0.3±0.05 | |
| 1.7 (1.8-1.94) | 4.2-4.5 | 0.3±0.05 | |
| 2(2.2-2.34) | 4.7-5 | 0.3±0.05 | |
| 2.3(2.5-2.64) | 5.7-6 | 0.5±0.05 | |
| 2.5 (2.7-2.84) | 5.7-6 | 0.5±0.05 | |
| 2.6 (2.8-2.94) | 6.64-7 |
0.5±0.05 |
|
| 3 (3.2-3.38) | 6.64-7 | 0.5±0.05 | |
| 4(4.3-4.48) | 8.64-9 | 0.8±0.05 | |
| 5(5.3-5.48) | 9.64-10 | 1±0.05 |
3.Classified
Washers are classified as: flat washer-C, large washer-A and C, super large washer-C, small washer-A, flat washer-A, flat washer-chamfer-A, high strength washer for steel structure, spherical washer, conical washer, square oblique washer for I-shaped steel, square oblique washer for groove steel, standard spring washer, light spring washer, heavy bullet. Spring washer, internal tooth lock washer, internal saw tooth lock washer, external tooth lock washer, external saw tooth lock washer, single ear stop washer, double ear stop washer, external tongue stop washer, round nut stop washer.
4.Application
1.Surface lip and tongue
2.Excellent resistance
3.An excellent immersion effect.
4.Excellent weather resistance
5.Stainless steel stability
6.Customer drawings can be accepted for non-standard customization.
5.Advantage
Reduce pressure.
Flat gaskets are usually thin pieces of various shapes, used to reduce friction, prevent leakage, isolate, prevent loosening or pressure dispersion. Many materials and structures have such parts to perform similar functions.
Due to the material and process limitations of threaded fasteners, the supporting surfaces of fasteners such as bolts are not large, so gaskets are used to reduce the compressive stress of the bearing surface to protect the surface of the joints.

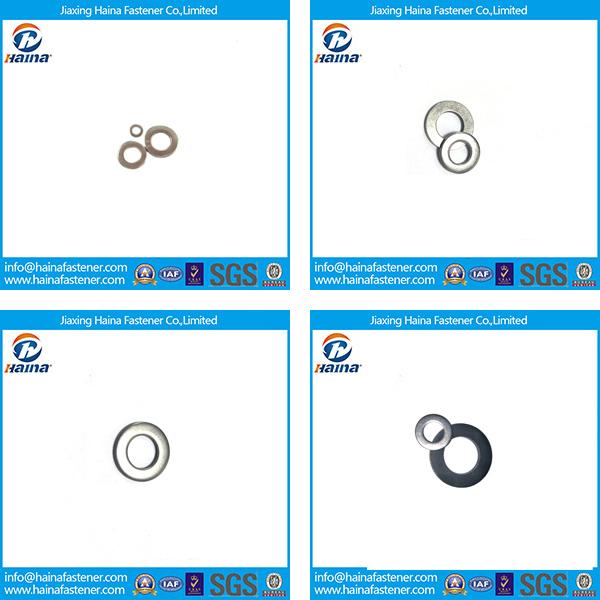

6.more pictures
