FLOWMONSTER DAA AXIAL PUMP WOBBLE PLATE DIRECT DRIVE
FLOWMONSTER DAA AXIAL PUMP WOBBLE PLATE DIRECT DRIVE
MANIFOLD
Forged brass
CRANKCASE
Aluminum alloy, die-cast, anodized
WOBBLE PLATE
Aluminum forged
Cast iron(optional)
BEARING
Dual thrust bearing
PLUNGER
Solid stainless steel, heat treatment
Ceramic coating(optional)
PLUNGER SEALS
Germany Parker, U type
LUBRICATION
Splash type, oil type 15W-40
UNLOADER
Integrated with manifold, internal bypass trap type, built with detergent injector
INLET: 3/4inch BSP or NH thread
OUTLET: M22 male
SPECIFICATIONS

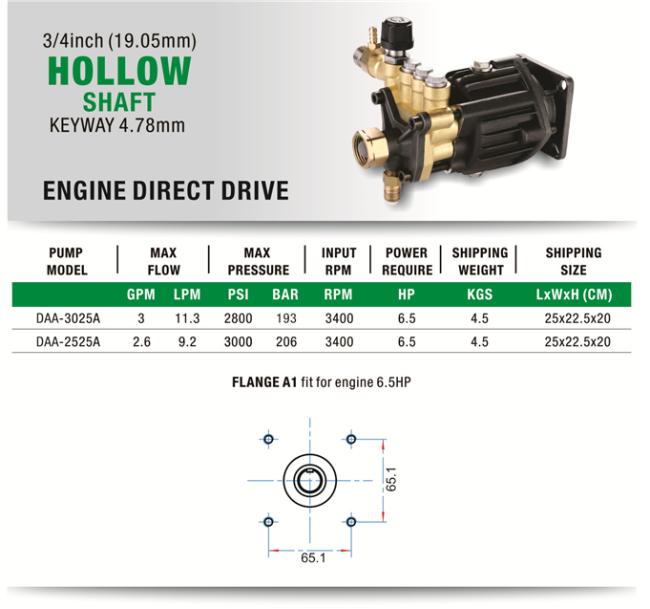

DAA-3025A
High Pressure Plunger Pump
BorexStroke: 15 x 6.3mm
Max.Power Rating: Up to 6.5hp
Working Pressure: 193Bar/2800psi
Max.Flow Rate: 11.3Lpm/3.0Gpm
Max.Input Rpm: 3400r/min
Head Material: Stainless Steel
Overall Dimension: 22x21x24cm
Shipping Weight: 4.4kgs
DESCRIPTION
| Pump Model: | DAA-3025A | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 6.3mm | |
| Fluid End/Manifold Material: | Brass Forged | |
| Version/Type: | A Version,Engine Direct Drive | |
| Flange Type: | A(Fit for engine 6.5hp) | |
| Shaft Dia.: | Male shaft 3/4in,19.05mm | |
| Max Input POWER: | 6.5hp | |
| Max Input RPM: | 3400RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 22x21x24cm | |
| Shipping Weight.: | 4.4kgs | |
| Application: | High Pressure Water |

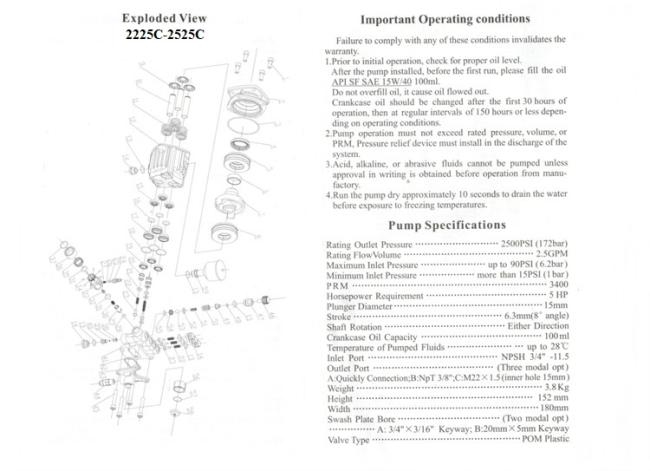

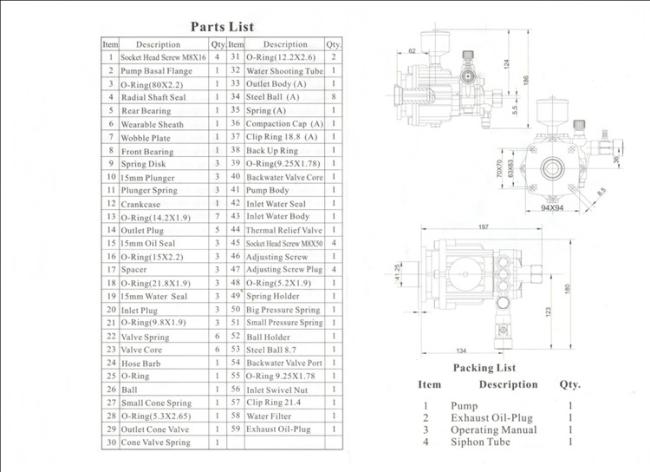

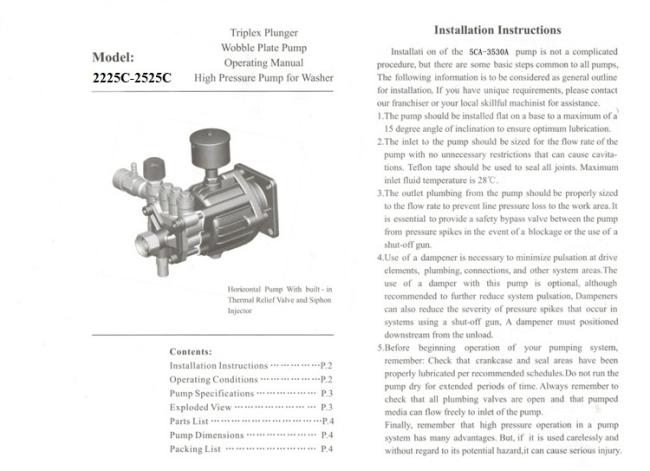

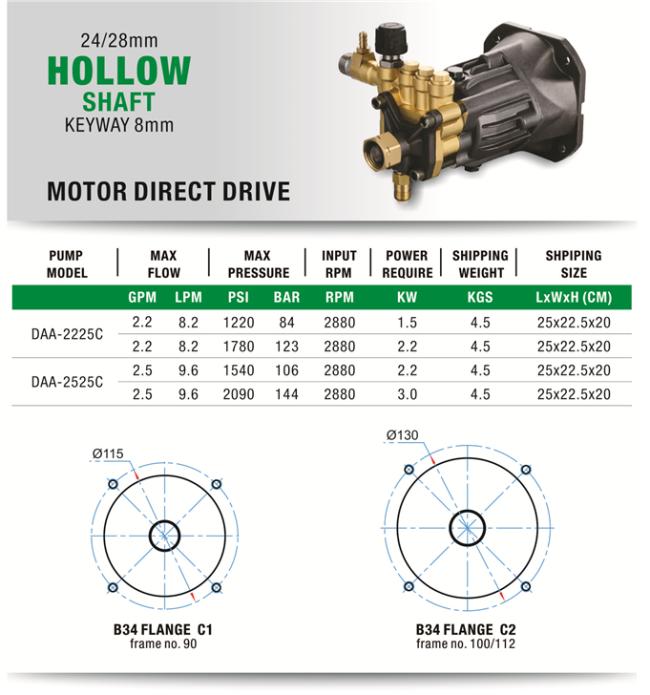

DAA-2225C
High Pressure Plunger Pump
BorexStroke: 15 x5.4mm
Max.Power Rating: Up to 1.5kw
Working Pressure: 90Bar/1300psi
Max.Flow Rate: 8.2Lpm/2.2Gpm
Max.Input Rpm: 2880r/min
Head Material: Brass Forged
Overall Dimension: 22x21x24cm
Shipping Weight: 4.7kgs
DESCRIPTION
| Pump Model: | DAA-2225C | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 5.4mm | |
| Fluid End/Manifold Material: | Brass Forged | |
| Version/Type: | AC Version,Motor Direct Drive | |
| Flange Type: | AC2(Fit for Motor 1.5kw) | |
| Shaft Dia.: | Hollow shaft 24mm;28mm | |
| Max Input POWER: | 1.5kw | |
| Max Input RPM: | 2880RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 22x21x24cm | |
| Shipping Weight.: | 4.7kgs | |
| Application: | High Pressure Water |
DAA-2525C
High Pressure Plunger Pump
BorexStroke: 15 x6.3mm
Max.Power Rating: Up to 2.2kw
Working Pressure: 110Bar/1600psi
Max.Flow Rate: 9.6Lpm/2.5Gpm
Max.Input Rpm: 2880r/min
Head Material: Brass Forged
Overall Dimension: 22x21x24cm
Shipping Weight: 4.7kgs
DESCRIPTION
| Pump Model: | DAA-2525C | |
| Bore/Plunger Dia.: | 15mm | |
| Stroke: | 6.3mm | |
| Fluid End/Manifold Material: | Brass Forged | |
| Version/Type: | AC Version,Motor Direct Drive | |
| Flange Type: | AC2(Fit for Motor 2.2kw) | |
| Shaft Dia.: | Hollow shaft 24mm;28mm | |
| Max Input POWER: | 2.2kw | |
| Max Input RPM: | 2880RPM | |
| Port On Pump: | Outlet M22 Male, Inlet G3/4” Female | |
| Oil Bath Capacity: | 550ml (half level of oil gauge) | |
| Oil Type: | SAE 15W/40 Non-Detergent | |
| Water Inlet Pressure: | 0-50psi/3.5bar | |
| Max Inlet Water Temp.: | 50℃/122℉ | |
| Shipping Size.: | 22x21x24cm | |
| Shipping Weight.: | 4.7kgs | |
| Application: | High Pressure Water |
