high quality and best price mini 2500Liters dongfeng petrol diesel delivery tanker truck fuel bowser tanker truck

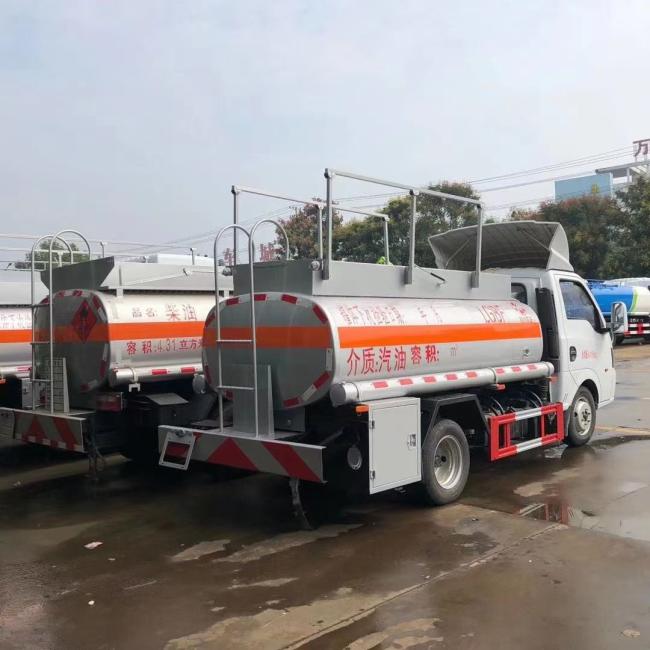

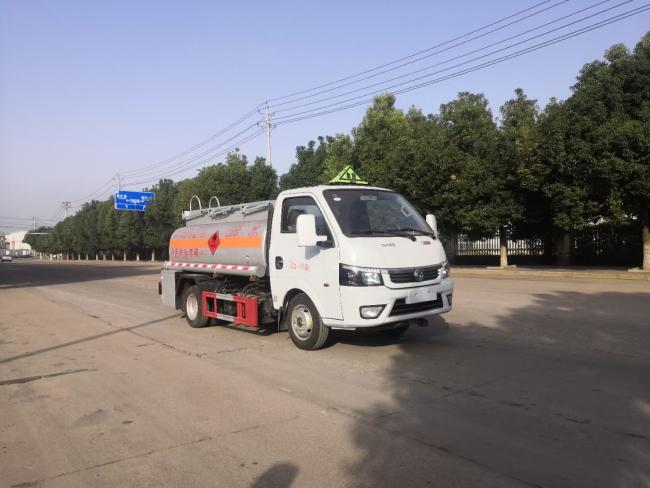

Mini 2.3cbm fuel bowser truck for sale
DONGFENG TUYI single row driver cab,
4*2 LHD,
2800mm wheelbase
Q23-95E60 quanchai 95hp diesel engine
5+1 gears, manual gears,
1.5T front axle/3T rear axle
185R14 tires*6+1 spare
Power steering+oil cut braking+central door locks +electric windows and door+etc.
The volume of the dongfeng tuyi fuel oil dispensing truck is 2.3CBM.
Total mass: 4495kgs
Curb mass: 2865kgs
Rated mass: 1500kgs
Overall dimension(L*W*H): 5500×1900×2300mm
General of the fuel bowser vehicle is as below
1.1 The Purpose and Application Range of the Refueller.It is mainly used for refuelling and defuelling the aircraft which equipped underwing refuelling interface in airport.1.2 Working conditionThis refueller is used on flat concrete or bitumen road in airport.
Temperature : -30°C~+46°CRelative humidity:≤ 95%(25°C)
Main Function of JAC brand aircraft refueler vehicle manufactured by Chengli Special Automobile Co., Ltd. as below.
1) Underwing refuelling--after filtering and measuring, the fuel oil in the refueller‘s oil tank is filled into the plane’s oil
box(or other containers) by the hose and underwing nozzle on the reel or platform.
2) Defuelling--after filtering and measuring, the fuel oil in the plane’s oil box(or other containers) is filled into this
refueller’s oil tank by the hose and underwing nozzle on the reel or platform..
3) Cycling--use pump to stir oil in a cycling way.
4) Loading-- use the oil pump and other equipments to fill fuel oil into the tank through the bottom of it.
The fuel trucks is also called refuel truck, fuel dispenser truck, refuel tanker truck, oil dispensing truck, oil tanker truck, oil delivery truck, etc. The oil tanker truck is mainly used to transport oil, fuel, gasoline, diesel, etc. It can be equipped fuel dispenser and fuel pump to refuel for other automobile. The shape of the fuel tanker is elliptical or rectangular and the material can be high quality carbon steel plate Q235 , stainless steel or aluminium alloy. Whole tank was divided into two compartments or more compartments with several inner baffles to reinforce the tank strength and prevent longitudinal surge during move.
In order to prevent corrosion, the surface of the tank was printed anticorrosive paint and decorative paint. The middle side of the tank was equipped indicator which can indicate the filled oil volume when pump oil. As a professional mobile oil tank trucks manufacturer, the mobile refueling trucks for sale is from 5000 liters to 45000 liters. They are from 4*2 fuel trucks to 6x4 fuel tank trucks. Besides oil tanker truck, our factory also produce fuel tanker trailer and the fuel tank capacity is from 30000 liters to 60000 liters.
