HOT SALE! brand 4*2 diesel mini refrigerated van truck, cold van box truck for sale, frozen van truck for sale
Advantages of Insulated/Freezer Van Body manufactured by Chengli Special Automobile Co., Ltd. as below.
1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.
2. Light in weight: 40% lighter than metal body.
3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.
4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers a very good thermal insulation performance.
5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat preservation, box open model: Rear double-open or Side-open.
6. Refrigeration unit Brand Optioanl: American Carrier, Thermo King. South Korea Hanya. China Songhan, Hanxue, etc. The Temperature range can be 0° C ~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.
If you're interested in our refrigerated van truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com

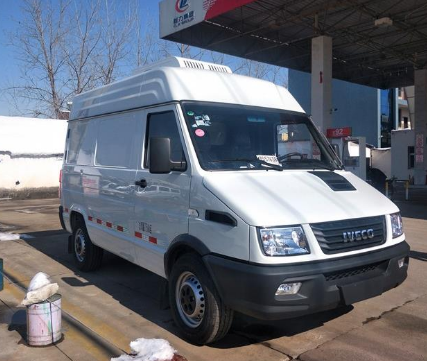

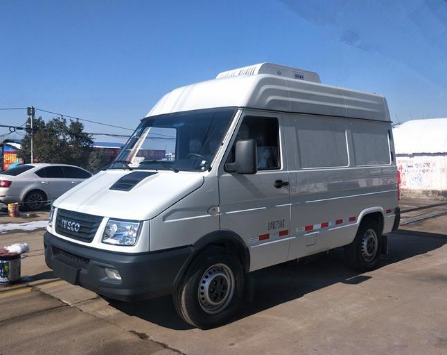

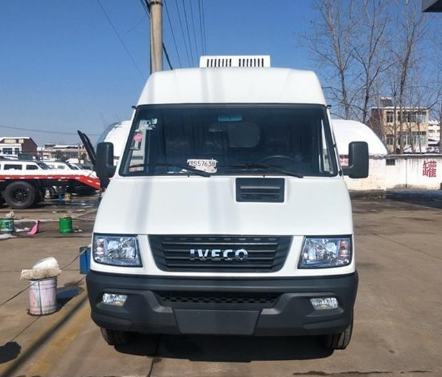

More pictures of brand diesel refrigerated van truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! brand refrigerated van truck for sale
customized brand diesel freezed van truck for sale
Main technical parameters of brand refrigerated van truck manufactured by Chengli SPecial Automobile Co., Ltd. as below.
| Product Name | freezer refrigerated truck | |
| Cab | Single row cab, two doors, rated passengers 2 or 3 | |
|
Chassis |
Brand | |
| Chassis model | NJ1044ACCQ | |
| Drive type | 4*2 | |
| Tire | 215/75R16LT with 1 spare tire | |
| Wheelbase | 2800mm | |
| Braking System | oil brake | |
| Transmission | Manual , 5 forward and 1 reverse | |
| Engine | Model | SOFIM8140.43S4 |
| Fuel type | Diesel | |
| Horse Power(kw/hp) | 95kw/130hp | |
| Displacement(ml) | 2798ml | |
| Emission standard | Euro 4 | |
|
Dimension & weight |
Overall dimension (L*W*H/mm) | 4840x2000x2170mm |
| Axles No. | 2 | |
| Payload | 1000kg | |
| Curb Weight(kg) | 2725 | |
| Max speed(km/h) | 90 | |
| Performance parameter | Body inner demension | 2100x1630x1520mm |
| Compartment material | FRP inside and outside, 8cm polyurethane foam middle, | |
| Compartment structure | Don't open at the top, rear door opening, equipped with Stainless door frames and door accessory | |
| Refrigerated Unit | High quality independent refrigeration unit | |
| Minimum temperature | -15 °C. | |
| Temperature control | Manual control in the cab | |
