factory selling dongfeng tianjin 4x2 190hpmeat hook refrigerator truck for sale, 15tons cold room truck for TOGO
factory selling dongfeng tianjin 4x2 190hp 12cbm meat hook refrigerator truck for sale, 15tons cold room truck for TOGO
Functin explain on the refrigeration systerm:
* Temperature range is -18°c to 10°c.
* Air conditioner external unit use of good quality plastic shell and Indoor air conditioning use aluminum material, the use of a good painting, to prevent corrosion, nontoxic and beautiful.
* Temperature control systerm uses a computer control technology, and accurate control the temperature.
If you're interested in our refrigerated truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Technical specification for dongfeng tianjin 190hp 15tons refrigerator box truck
|
Products Technical Specification
|
|
| Brand & Series | Dongfeng kingrun 4*2 Refrigerated truck |
| Fuel type | Diesel |
| Emission Standard | Euro 2 or 3 |
| Cabin | Kingrun,Single row,with A/C,Radio, cassette |
| Overall dimensions (L×W×H) | 9990*2490*3850mm |
| G.V.W | 16000kg |
| Curb weight (chassis) | 6805 kg |
| Loading capacity | 9000kg-12000kg |
| Engine & Chassis | |
| Engine model | B190 33 |
| Maximum power | 140kw/190hp |
| Displacement | 2999 |
| Number of cylinders | 4 |
| Engine Manufacturer | Dongfeng cumminse engine Co. Ltd. |
| Wheel base | 5600mm |
| Gear box | Fast,8 forward gears & 1 reverse |
| Drive Axle | 6T/10T |
| Brake system | Oil braking |
| Steering wheel | Left hand drive |
| Electric device | 24V |
| Tyres & Quantity | Factory Standard 9.00-20 & 6+1(Spare tire) |
| 9.00R20, 10.00-20, 10.00R20,255/70R22.5 Optional | |
| Cooling box Description | |
| Cooling box dimensions (L×W×H) | 7400*2280*2400mm |
| Cooling box Volume | 12m³-15m³ |
| Cooling box material | FRP inside & outside of the van, |
| polyurethane as the insulation | |
| Cooling box thickness | 800 mm Optional 100mm |
| Back Door | Hinged door |
| Side door | Optional |
| Refrigeration systems | Equipped with DT-230,South korean Hanya Brand |
| Temperature Range | Normal temperature 35°C |
| ,refrigeration temperature reached -18°C to 0°C | |
| Optional -10°C to 0°C,-18°C to 5°C ,-20to 30°C,etc | |
| Others | Stainless Steel door frame,Stainless steel corrugated |
| floor, Mark lamp at the four (4) corners f the | |
| body,Room lamp will be provided inside the cabin. | |
| Optional Configuration (√:Standard Equipment o:Optional ×:Not Available) | |
| A/C | √ |
| Power Steering | √ |
| Side bumper | √ |
| Rear bumpe | √ |
| Wind deflector | √ |
CNHTC HOWO refrigerator truck for frozen food transportation
Mechanical Refrigerator Truck is also called Refrigerated van Truck refrigeration transport truck, insulation truck, refrigeration van truck, freezer truck, mechanical refregerated truck,etc. It is fully enclosed truck which is mainly used in transporting frozen or fresh goods,such as frozen foods,milk products, vegetable,fruit,vaccine, medicines,etc. It usually equips with refrigeration unit and polyurethane heat insulation case. It is refrigeration special transport trucks.
Product Freatures:
1. Mechanical Refrigerated Truck adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded tog with high stength glue ,overall thickness is 8cm.(optional 10cm or 20cm)
2. Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel
3. "CLW" seried refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength ,light weight,good chemical stability, long life,etc.

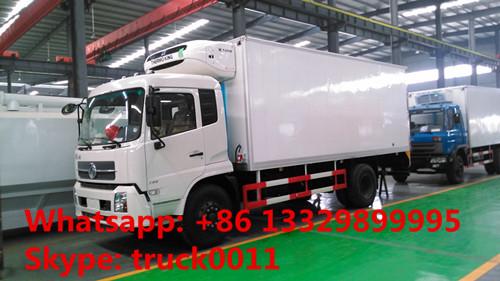

More pictures of hot sale refrigerated truck as below

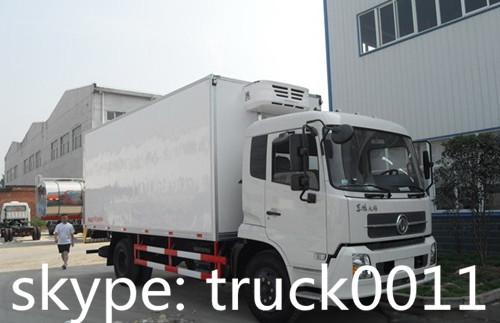

hot sale dongfeng 190hp diesel cold room truck
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
