CLW Brand mini 5,000L surface lpg gas storage tank for sale, ASME standard 5M3 bulk lpg gas storage tank for sale
CLW Brand mini 5,000L surface lpg gas storage tank for sale, ASME standard 5M3 bulk lpg gas storage tank for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’development, Chengli Special Automobile Co., Ltd. can supply surface lpg gas storage tank(5m3-200m3), underground lpg gas storage tank(10m3-80m3), lpg gas trailer(40,5m3-59.6m3), lpg gas truck(5m3-35.5m3), skid lpg gas plant(5-120m3), etc.And in 2016s, we have achieved the US ASME certificate for lpg gas pressure vessels, meaning we can design and mnufacture ASME standard lpg gas pressure vessels in our company and exporting, too.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The specification sheet of 5M3 pressure vessel product data sheet, hot sale 5,000L bulk lpg gas storage tank with factory price
|
Equipment catalogue |
Stationary pressure vessel |
Varieties of pressure vessel |
Storage |
||||||
|
Product name |
LPG (propane) storage tank |
Product no. |
G150208 |
||||||
|
Equipment no. |
/ |
Category of pressure vessel |
Ⅲ class |
||||||
|
Product standard |
GB150 NB/T47042 |
Designed working life |
15 |
||||||
|
Main data |
Volume |
5m3 |
Internal diameter
|
1600 |
Tank length |
3070*1620*2210mm |
|
||
|
Material |
Body |
Q345R |
Thickness |
Body |
10mm |
Body weight |
2030kg |
|
|
|
Head |
Q345R |
Head |
10mm |
Inside components weight |
/kg |
|
|||
|
Lining |
/ |
Lining |
/mm |
Filling weight |
1995kgs |
|
|||
|
Interlining |
/ |
Interlining |
/mm |
|
|||||
|
Designed pressure |
Shell side |
1.77Mpa |
Designed pressure |
Shell side |
50 ℃ |
Max working pressure |
Shell side |
/ |
|
|
Tube side |
/Mpa |
Tube side |
/℃ |
Tube side |
/ |
||||
|
Interlining side |
/Mpa |
Interlining side |
/℃ |
Interlining side |
/ |
||||
|
Medium of shell side |
Liquid petroleum gas(propane) |
Medium of tube side
|
/ |
Medium of interlining side |
/ |
||||
|
Form of structure |
Main structure form |
Ellipse head, round body |
Installation |
Fixed horizontal installation |
|||||
|
Bearing type |
Saddle support |
Heat preservation heat insulation way |
- |
||||||
|
Testing |
Method of non-destructive testing |
RT PT |
Non-destructive testing rate |
100% |
|||||
|
Pressure test type |
Hydrostatic test |
Puncture test pressure |
2.22MPa |
||||||
|
Heat treatment method |
Stress relieving heat treatment |
Heat-treatment temperature |
620±15℃ |
|
|||||
|
Safety accessories |
|||||||||
|
Name
|
Type |
Size |
Quantity |
Self-contained |
|||||
|
Magnetic flap liquid level |
UZFAI-2.5RF-2940-0.50 |
DN25 |
1 |
HG21584 |
|||||
|
Safety valve |
A42F-25 |
DN100 |
1 |
GB12243, Pz=1.69MPa, K=0.65 |
|||||
|
Pressure gage |
Y-150 |
M20×1.5 |
1 |
0-4MPa, 1.6 grade |
|||||
|
Thermometer |
WTQ-280 |
M33×2 |
1 |
-40℃-60℃, 1.5 grade |
|||||
|
Manufacture and supervisory situation |
Supervisory |
Hubei Institute of Special Equipment Inspection And Test |
|||||||
|
|
Organization code |
42000423-5 |
Organization Verification Certificate N0. |
TS711-215-2019 |
|||||
More pictures of hot sale 5,000L surface lpg gas storage tank as below.

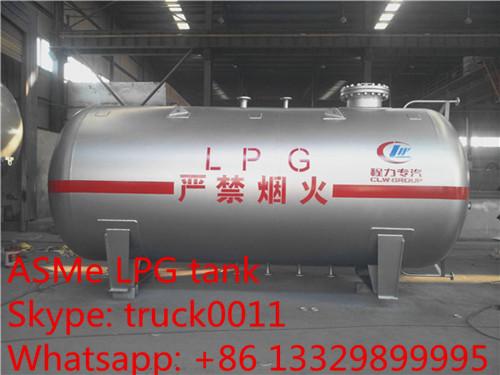

best price 5,000L surface lpg gas storage tank for sale
hot sale mini ASME standard 5,000L surface lpg gas storage tank
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
