best price factory direct sale 10MT bulk surface lpg gas storage tank for sale, 10m3 surface lpg gas tank for sale
10MT bulk surface lpg gas storage tank for sale, ASME standard 10 metric tons surface lpg gas propane tank for sale
CLW brand ASME lpg gas tank, hot sale ASME bulk lpg storage tank,
Chengli Special Automobile Co., Ltd. is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication. And recently, our CLW brand lpg gas products have passed ASME standard.
1. we have the biggest LPG trailer in the world, the valid volume is 58.5cbm; low transport costs, more profit.
2. we have the biggest LPG truck in China, it's valid volume is 35.5cbm;
3. our LPG storage tank ranged from 5cbm to 200cbm. both on the floor ones and in the ground ones.
4 It is used for storing gas, liquid, and vapour mediums, for example, propane, propene,dimethyl ,liquid ammonia,aldehyde and other mediums.It is widely used in oil, chemical industry, machinery, electric power areas.
5 .A, B Class 100% ray weld inspection, II level qualified C, D Class welds 100% magnetic particle inspection, I level qualified.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/ Mob.: +86 13329899995.
The specification sheet of 10MT lpg gas pressure vessels, 10,000kgs bulk surface lpg gas storage tank as below
|
Equipment catalogue |
Stationary pressure vessel for sale |
Varieties of pressure vessel |
Storage |
||||||
|
Product name |
LPG (propane) storage tank |
Product no. |
G150208 |
||||||
|
Equipment no. |
/ |
Category of pressure vessel |
Ⅲ class |
||||||
|
Product standard |
GB150 NB/T47042 |
Designed working life |
15 |
||||||
|
Main data |
Volume |
25m3 |
Internal diameter
|
2200mm |
Tank length |
7008*2224*2814mm |
|
||
|
Material |
Body |
Q345R |
Thickness |
Body |
12mm |
Body weight |
11749kg |
|
|
|
Head |
Q345R |
Head |
14mm |
Inside components weight |
/kg |
|
|||
|
Lining |
/ |
Lining |
/mm |
Filling weight |
9975kgs |
|
|||
|
Interlining |
/ |
Interlining |
/mm |
|
|||||
|
Designed pressure |
Shell side |
1.77Mpa |
Designed pressure |
Shell side |
50 ℃ |
Max working pressure |
Shell side |
/ |
|
|
Tube side |
/Mpa |
Tube side |
/℃ |
Tube side |
/ |
||||
|
Interlining side |
/Mpa |
Interlining side |
/℃ |
Interlining side |
/ |
||||
|
Medium of shell side |
Liquid petroleum gas(propane) |
Medium of tube side
|
/ |
Medium of interlining side |
/ |
||||
|
Form of structure |
Main structure form |
Ellipse head, round body |
Installation |
Fixed horizontal installation |
|||||
|
Bearing type |
Saddle support |
Heat preservation heat insulation way |
- |
||||||
|
Testing |
Method of non-destructive testing |
RT PT |
Non-destructive testing rate |
100% |
|||||
|
Pressure test type |
Hydrostatic test |
Puncture test pressure |
2.22MPa |
||||||
|
Heat treatment method |
Stress relieving heat treatment |
Heat-treatment temperature |
620±15℃ |
|
|||||
|
Safety accessories |
|||||||||
|
Name
|
Type |
Size |
Quantity |
Self-contained |
|||||
|
Magnetic flap liquid level |
UZFAI-2.5RF-2940-0.50 |
DN25 |
1 |
HG21584 |
|||||
|
Safety valve |
A42F-25 |
DN100 |
1 |
GB12243, Pz=1.69MPa, K=0.65 |
|||||
|
Pressure gage |
Y-150 |
M20×1.5 |
1 |
0-4MPa, 1.6 grade |
|||||
|
Thermometer |
WTQ-280 |
M33×2 |
1 |
-40℃-60℃, 1.5 grade |
|||||
|
Manufacture and supervisory situation |
Supervisory |
Hubei Institute of Special Equipment Inspection And Test |
|||||||
|
|
Organization code |
42000423-5 |
Organization Verification Certificate N0. |
TS711-215-2019 |
|||||

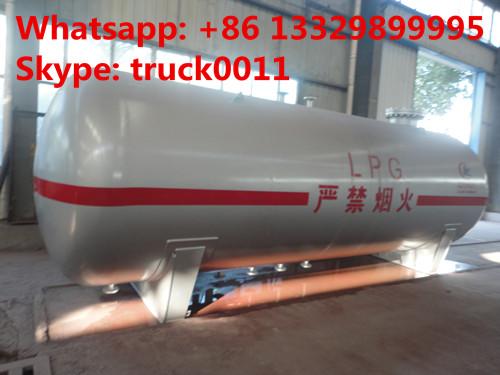

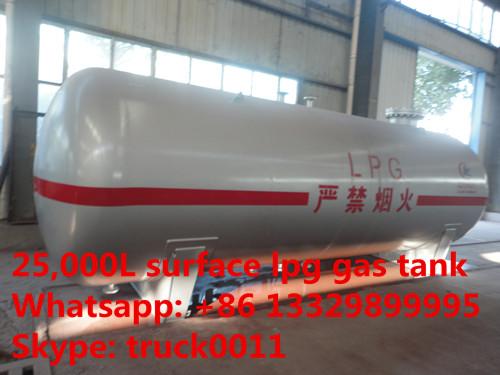

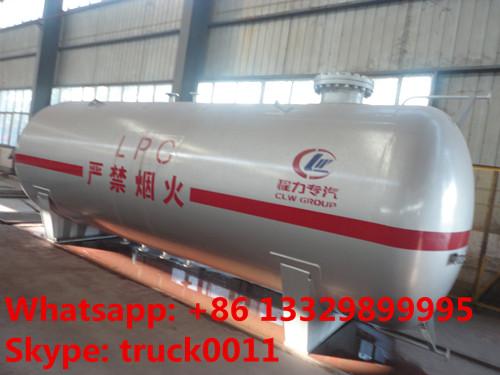

More pictures of hot sale 10MT lpg gas storage tank as below.
More information, please feel free to contact Ms. Anita Deng.
