export model 65,000L 26MT bulk surface lpg gas storage tank for sale, 65m3 propane gas storage tank for Nigeria market
export model 65,000L 26MT bulk surface lpg gas storage tank for sale, HOT SALE! 65m3 propane gas storage tank for Nigeria market
The horizontal tank is the special equipment used for storage of liquefied petroleum gas (LPG) when the saturated vapor pressure is less than 1.77Mpa at the temperature 50℃ and the safe loading capacity of 25.935tons. The storage tank is designed according to the TSG R0004-2009 “stationary Pressure Vessels Safety and Technical Supervision Regulation” and requirements of GB 150 “Pressure Vessel”. Manufacturers should have the A2 level manufacturing license issued by the state administration of quality supervision, inspection and quarantine administration of boiler and pressure vessel. At any time, the factory should accept the inspection and supervision by the boiler pressure vessel examination board in local technical supervision bureau in the process of designing, fabricating, inspecting, delivering and any other production step and get the inspection reported issued by them. The inspection report with built drawings, product quality certificate, certificate of quality, brand extension and design calculation and other technical information issued by manufacturers should be given to users. Users with above data go to register in the local boiler pressure vessel inspection agencies. Products can be put into use after getting the registration number.
If you're interested in our lpg gas storage tanker, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: +86 13329899995.
The main parameters of hot sale 65,000L bulk surface lpg gas storage tank manufactured by Chengli Special Automobile Co., Ltd. as below
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank(65000L) | |
| Product model | CLG2700-65 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 11832*2728*3318 |
| Tank dimension(inner diameter*thickness*length) | mm | DN2700*14*11832 |
| Tank volume | m3 | 65 |
| Tank thickness | mm | 14 |
| End heads thickness | mm | 16 |
| Curb mass | kg | 13590 |
| loading capacity | Kg | 25935 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R,16Mnlll | |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
| Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
The accessories for 65,000L lpg tank as below.
| Chengli Special Automobile Co., Ltd. | Safety assembly | Product model 65m3 LPG tank (DN2700) |
|||
| List | Model | Name | Nos. | Remark | |
| 1 | J41N-2.5-50 | Cut-off valve DN50 | 6 | flange connecting term: RF | |
| 2 | J41N-2.5-25 | Cut-off valve DN25 | 2 | flange connecting term: RF | |
| 3 | J41N-2.5-100 | Cuf-off valve DN80 | 1 | flange connecting term: RF | |
| 4 | J24W-320-DN6 | J24W model Needle valve M20×1.5 | 1 | ||
| 5 | HG21584-95 | Magnetic reversible plate level gauge UZFAL-2.5RF-2940-0.50 | 1 | flange connecting term: RF | |
| 6 | A42F-25-100 | Safety valve DN100 | 1 | flange connecting term: RF | |
| 7 | Y-100T | Pressure gauge M20×1.5 1.5 grade 0～4MPA | 1 | ||
| 8 | WTQ-280 | Thermometer M33×2 2.5 grade | 1 | -40℃～60℃(45℃ and 50℃ with red remark | |

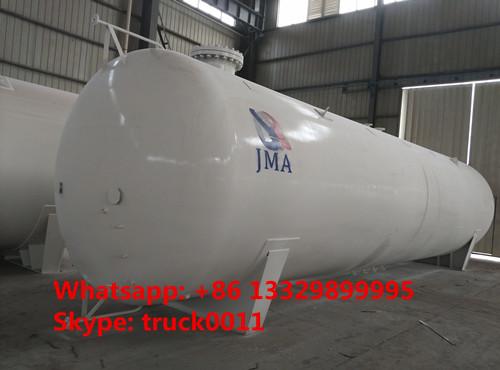

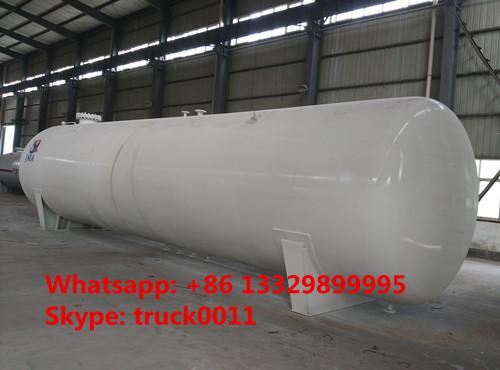

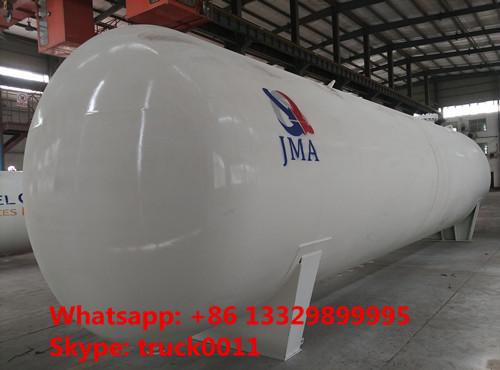

More pictures of hot sale 65m3 26MT bulk lpg gas storage tank as below.
65,000L surface lpg gas storage tank for sale
best price 65,000L stationary lpg gas storage tank for sale
