50ton lpg gas tanker propane for sale, 100cbm surface lpg gas cooking storage tank for sale, CLW brand lpg gas tank
50ton lpg gas tanker propane 100cbm lpg tank 100m3 lpg bobtail bullet tank 40cbm surface propane gas storage tank for sale
More and more African friends come to Chengli Special Automobile Co., Ltd. buying lpg gas storage tank, mobile lpg gas truck, lpg gas tank semitrailer, skid lpg gas tank, etc. for their moneytree-lpg gas plant.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’development, Chengli Special Automobile Co., Ltd. can supply surface lpg gas storage tank(5m3-200m3), underground lpg gas storage tank(10m3-80m3), lpg gas trailer(40,5m3-59.6m3), lpg gas truck(5m3-35.5m3), skid lpg gas plant(5-120m3), etc.And in 2016s, we have achieved the US ASME certificate for lpg gas pressure vessels, meaning we can design and mnufacture ASME standard lpg gas pressure vessels in our company and exporting, too.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
main technical parameters of hot sale CLW Brand 80m3 surface lpg gas storage tank as below
|
Specification of 40TON LPG Tank |
|||
|
Volume of Tank |
80CBM 80,000liters |
||
|
Filling Weight |
39900kg |
||
|
Tank Weight |
17000kg |
||
|
Thickness of Shell (mm) |
16mm |
||
|
Thickness of Endplate (mm) |
18 mm |
||
|
Tank Diameter (mm) |
3200 mm |
||
|
External Dimensions (mm) (length x width x height) |
11166*3132*3722mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420-590 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
|
|||
|
Specification of 50TON LPG Tank |
|||
|
Volume of Tank |
100CBM / 100,000liters |
||
|
Filling Weight |
49900kg |
||
|
Tank Weight |
20410kg |
||
|
Thickness of Shell (mm) |
16 mm |
||
|
Thickness of Endplate (mm) |
18 mm |
||
|
Tank Diameter (mm) |
3100 mm |
||
|
External Dimensions (mm) (length x width x height) |
13866*3132*3722 mm |
||
|
Material of Tank and Main Pressure Parts |
Carbon Steel Q345R |
||
|
Filling Medium |
Liquefied Petroleum Gas ( Propane) |
||
|
Design Pressure |
1.77 MPa |
||
|
Corrosion Allowance |
1 mm |
||
|
Medium Density |
420-590 kg/ cbm |
||
|
Manufacturing Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels of China. |
|||
|
|
|||
|
Main parts of LPG Tank |
|||
|
Item |
Specification |
Quantity(pc) |
|
|
Discharge Pipe |
DN80 |
1 |
|
|
Inflow Pipe |
DN80 |
1 |
|
|
Outlet |
DN50 |
1 |
|
|
Gas phase balance pipes |
DN50 |
2 |
|
|
Manhole |
DN450 |
1 |
|
|
Drain Hole |
DN50 |
1 |
|
|
Main accessories: Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. Skid Parts List will be show in separated page below. |
|||

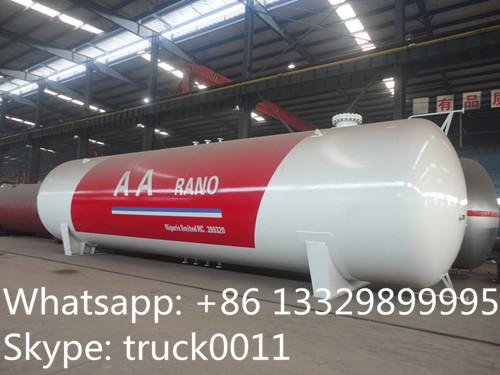

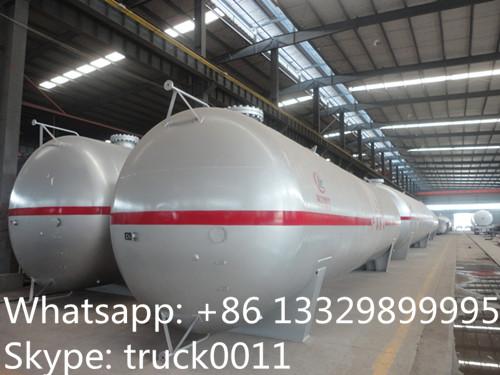

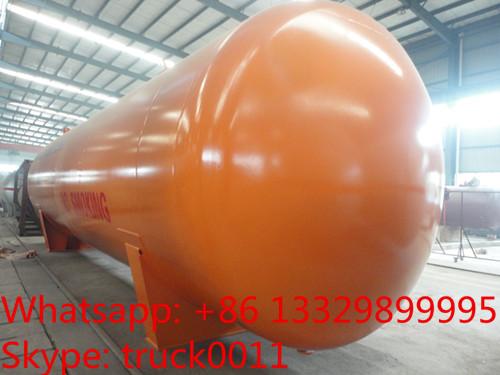

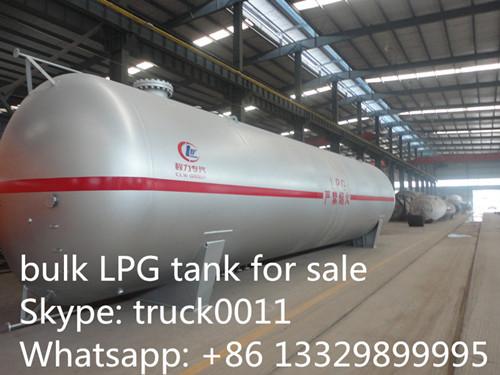

More pictures of hot sale bulk lpg gas storage tanks manufactured by Chengli Special Automobile Co., Ltd.
80,000L surface lpg gas storage tank for sale
hot sale best price surface lpg tank
