ASME standard 35,000L bullet type lpg gas storage tank for sale, factory sale 14tons bulk surface lpg gas storage tank
ASME 35,000L lpg gas storage tank for sale, factory sale 14 metric tons lpg gas storage tank, propane gas tank for cooking
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg gas pressure vessels in China. With many years’ development, Chengli Special Automobile Co., Ltd., could manufacture and sell surface lpg gas storage tank, underground lpg gas storage tank, skid lpg gas refilling station, lpg gas trailer, lpg gas truck, etc. And our CLW brand lpg gas pressure vessels have been exported to Vietnam, Mongolia, Kazakhstan, Uzbekistan, Bangladesh, Korea, Russia, Afghan, Iraq, Angola, Algeria, Nigeria, Congo, Libya, Jordan, Ethiopia, Mozambique, Mali, Niger, Trinidad, Namibia, etc.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Main parameters of CLW 35,000L lpg gas storage tank as below.
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(35000L) |
|
Product model |
|
CLG2300-35 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
8838*2324*2914 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN2300*12*8838 |
|
Tank volume |
m3 |
35 |
|
Tank thickness |
mm |
12 |
|
End heads thickness |
mm |
14 |
|
Curb mass |
kg |
8240 |
|
Loading capacity |
Kg |
13965 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|

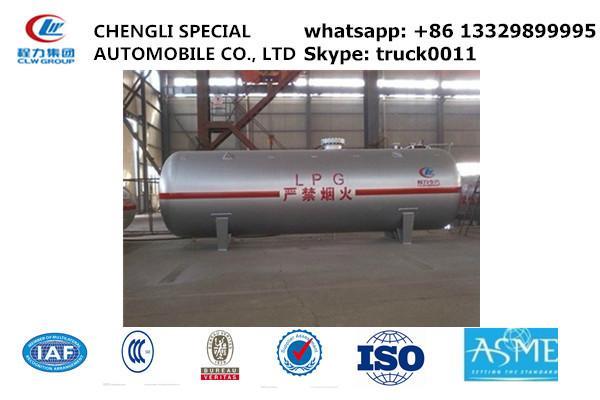

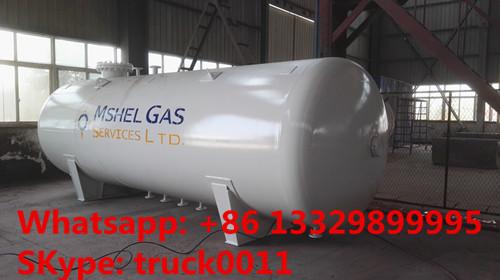

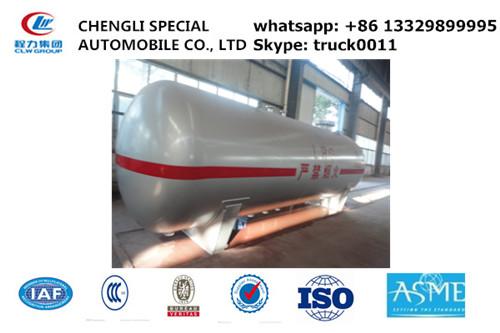

More pictures of hot sale 35,000L 14tons lpg gas storage tank as below.
high quality 35m3 lpg gas tank for sale
best price CLW brand lpg gas storage tank for sale
35,000L bulk surface lpg gas storage tank for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of lpg presure vessels in China since 2004s. With many years' development, Chengli Special Automobile Co., Ltd. could supply lpg gas tank, lpg gas truck, lpg trailer, skid mounted lpg gas filling station, etc. More information, please feel free to contact with Ms. Anita Deng. And our CLW lpg pressure vessels have passed ASME certificate in 2015s.
Whatsapp: +86 13329899995
Skype: truck0011
QQ: 504873236
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita.
