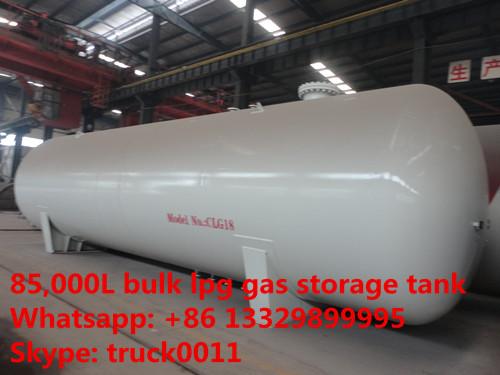

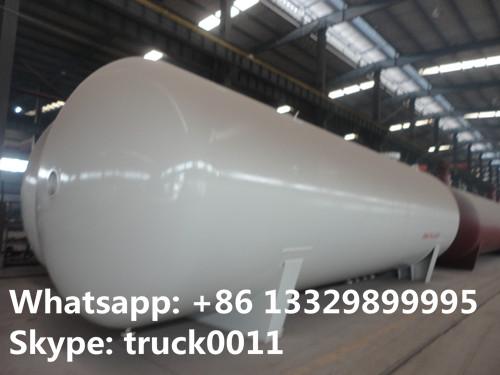

hot sale 85,000L surface lpg gas storage tank, bulk stationary surface 85m3 bulk lpg gas storage tank for sale

Item

Parameters

Product name

85cbm LPG storage tanker for propane

Trademark

CLW

Product model

CLW3200-85

Overall dimension(L*W*H)

mm

12000*3132*3722

Tanker dimension(inter diameter*thickness*length

mm

DN3200*16*12000

Full volume

m3

80

Curb mass

kg

17860

Total mass

Kg

34780

Working pressure

Mpa

≤1.62

Working temperature

℃

≤50

Designed pressure

Mpa

2.16

Others

The tanker material adopts Q345R, the tanker thickness is 18mm, the thickness of the head is 18mm. the safety valve model is A42F-2.5-80(pressure when open is 1.69Mpa); the loading medium is LPG (Propane), the medium density is 442kg/m3. And the tanker will be with the Flammable and explosive identification.

Function introduction

“CLW” brand LPG storage tanker manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature.  The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxy ethane, gasoline, butane, propane, propene, etc.

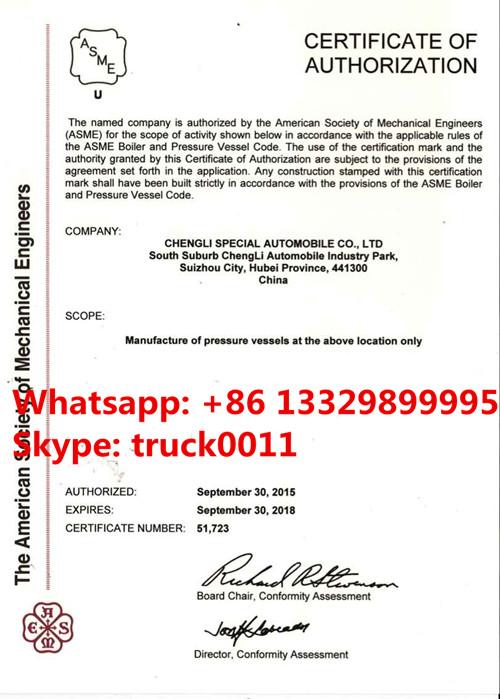

All the LPG tank trucks and LPG pressure vessels manufactured by Chengli Special Automobile Co., Ltd. are line with the GB150-1998<steel pressure vessel>, <Supervision Regulation on Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car>.
