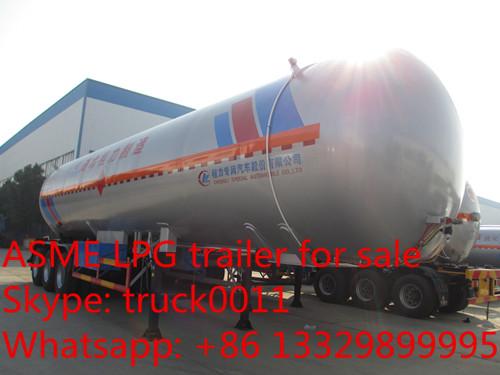

3 axles 58500L bulk lpg gas transported tank for sale, ASME standard 3 BPW/FUWA axle propane gas tank trailer for sale
Propane 3 Axle LPG Trailer 58.5CBM 3 Axle propylene LPG gas tank semi trailer ISO 3 Axle LPG gas tank trailer
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide,etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas tank, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng. Send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995
Technique Parameters of 3 axles 58.5m3 bulk lpg gas tank semitrailer as below
|
Dimension |
||
|
Tare Weight |
15000KGS |
|
|
Pay Load |
25000KGS |
|
|
Overall Length |
13000mm |
|
|
Overall Width |
2500mm |
|
|
Photo for reference, finial product can be made according to exact requirements |
||
|
Tank |
||
|
Transporting Media |
Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane |
|
|
Shape |
Round Shape |
|
|
Total Volume(m3) |
59.52CBM |
|
|
Tanker Body Steel Sheet |
Q235A/14mm |
|
|
End plate |
Q235A14mm, by punching |
|
|
Parts for Tank |
||
|
Manhole cover |
3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve |
|
|
Unloading valve |
2-3 sets of DN80 fixed at button of Tank |
|
|
Pipeline at button of tank |
4”seamless steel tube/Q235 |
|
|
Labeling system |
Oil Type Indication |
|
|
Anti-static electricity system |
pulling, wire carrier, sheet copper (6 sheet-standard layout) |
|
|
Other Parts |
||
|
Ladder |
1 unit at front of Tank |
|
|
Guard on top of Tank |
Zinc galvanized –guard-net |
|
|
Oil hose box |
Circular single hole tube, 1 unit on each side |
|
|
Oil hose |
2 unit, 3” x 6m size in black rubber |
|
|
Side guard |
cross bar-structure |
|
|
Rear button guard |
Fixed type |
|
|
Work tank deck |
Box type |
|
|
Fire extinguisher box |
2 unit at the back of each side |
|
|
Mud guard |
Steel structure in trapezoid form |
|
|
Lights and wire |
24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp |
|
|
Chassis |
||
|
Main Beams |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes |
|
|

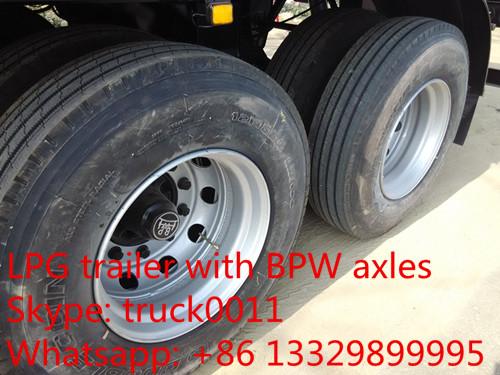

Axle |
3 axle |
|
|
BPW brand FUWA brand |
||
|
Landing Gear |
JOST Two-speed, manual operating, heavy duty landing gear |
|
|
King Pin |
JOST 2”standard bolt-in king pin |
|
|
Suspension |
German design mechanical suspension |
|
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
|
Wheel rim |
8.25R22.5 wheel rim |
|
|
Tire |
11R22.5 tubeless tire with one spare tire |
|
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|

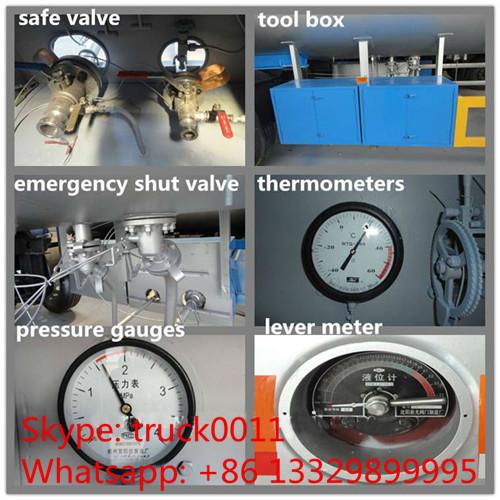

Key parts for LPG semi trailer
Propane 3 Axle LPG Trailer 58.5CBM 3 Axle propylene LPG gas tank semi trailer ISO 3 Axle LPG gas tank trailer
More information, please feel free to contact with us.
Skype: truck0011
Whatsapp/wechat: +86 13329899995
QQ: 504873236
