factory sale ASME stnadard CLW brand 5,000L-120,000L bullet type surface Liquefied petroleum gas storage tank for sale
factory sale ASME stnadard CLW brand 5,000L-120,000L bullet type surface Liquefied petroleum gas storage tank for sale
As a professional special vehicle manufacturer in China, we manufacturethe biggest LPG truck in China whose valid volume is 35.5m3,the biggest lpg trailer in the world whose valid volume is 59.52m3. And thelpg gas tank we manufacture is from 5cbm to 200cbm. We not only manufacture lpg gas storage tank on ground but also the lpg gas storage tank under ground.
We have manufacture license of A2 type of pressure vessel, C2 type of lpg trucks for sale, C3 type of lpg tank container, etc. The material of our lpg tank for sale is Q345R and thelimited service time of our lpg tank is 15 years.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995.
The main parameters of hot sale bulk surface lpg gas storage tank as below
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank (100000L) | |
| Product model | CLG3200-100 | |
| Loading medium | LPG (propane) | |
| Overall dimension(L*W*H) | mm | 13016*3236*3826 |
| Tank dimension(inner diameter*thickness*length) | mm | DN3200*18*13016 |
| Tank dimension | m3 | 100cbm |
| Tank thickness | mm | 18 |
| End heads thickness | mm | 18 |
| Curb mass | kg | 21800 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Tank and main Material pressure components | Q345R,16Mnlll | |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
| Chosen assembly | Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc. | |
More pictures of bulk LPG gas storage tanks manufactured by Chengli Special Automobile Co., Ltd.

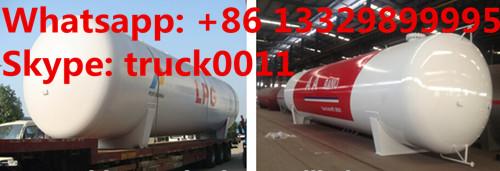

80,000L bulk surface lpg gas storage tank for sale

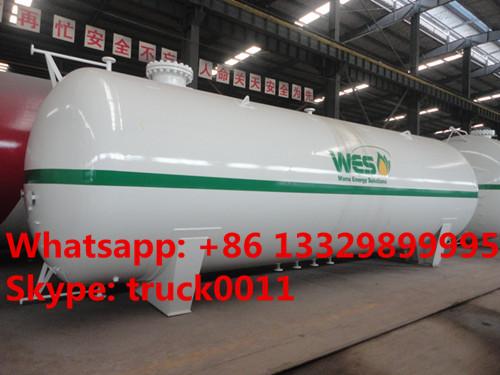

120,000L bullet type lpg gas storage tank for sale

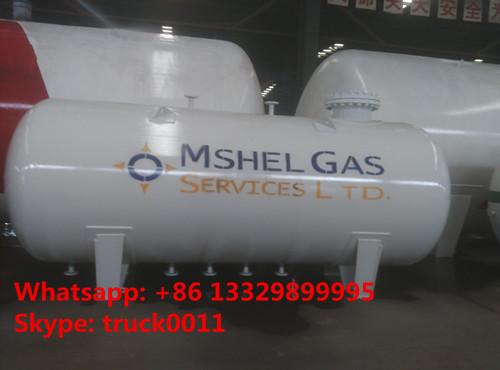

12,000L surface propane gas storage tank for sale
Safety Accessories of lpg tank for sale
Pressure Gauge, Safety relief valve , Level Gauge, Cut-off valve, Thermometer,etc.
Advantages of LPG gas storage tank:
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition. Be applied to transport varied oil, fuel and chemical material, such as natural gas, liquefied petroleum gas, liquefied ammonia, carbon bisulfide, epoxy ethane,gas, butane, dimethylmethane, propylene, etc. Cross section of tank could be oval, round and round-square. heat insulation and heating device is optional.
Why choose Chengli Special Automobile Co,Ltd?
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
What is the service time of our liquefied petroleum tank?
About 15 years.
