China famous best price CLW band 20000L LPG gas storage tank for sale, factory direct sale 20m3 lpg gas storage tank
China famous best price CLW band 20000L LPG gas storage tank for sale, factory direct sale 20m3 lpg gas storage tank
LPG Storage Tankiswidely used in storing LPG, Liquid ammonia, Propane and other chemical liquid. We can supply tank volume ranged from 12 m3to 120 m3.New type storage tank can be used on board.Experience of ten years of manufacturing pressure vessel ensure reliable quality.
More information, please feel free to contact with us.
Whatsapp/wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
Skype: truck0011
main parameters of CLW brand lpg gas storage tanks manufactued by Chengli Special Automobile Co., Ltd. as below
|
Storage tank |
NO |
Product Name |
Product Model |
Tank Volume |
Tank dimension(L×W×H)(mm) |
Thickness(mm) |
Seal shape |
Filling Quality (kg) |
Tank Weight (kg) |
|
1 |
Propane horizontal type storage tank |
CLG1600-12 |
12 m3 |
6270×1620×2255 DN1600×10 |
10 |
Double elliptic |
4840 |
3298 |
|
|
2 |
Propane horizontal type storage tank |
CLG2100-25 |
25 m3 |
7594×2124×2877 DN2100×12 |
12 |
Double elliptic |
10080 |
5688 |
|
|
3 |
Propane horizontal type storage tank |
CLG2400-32 |
32 m3 |
7508×2428×3007 DN2400×14 |
14 |
Double elliptic |
12902 |
7460 |
|
|
4 |
Propane horizontal type storage tank |
CLG2400-50 |
50 m3 |
11483×2428×3028 DN2400×14 |
14 |
Double elliptic |
20160 |
10824 |
|
|
5 |
Propane horizontal type storage tank |
CLG2600-50 |
50 m3 |
9912×2628×3215 DN2600×14 |
14 |
Double elliptic |
20160 |
10229 |
|
|
6 |
Propane horizontal type storage tank |
CLG3000-80 |
80 m3 |
11866×3032×3610 DN3000×16 |
16 |
Double elliptic |
32256 |
17900 |
|
|
7 |
Propane horizontal type storage tank |
CLG3200-100 |
100 m3 |
13010×3236×3716 DN3200×18 |
18 |
Double elliptic |
40320 |
21228 |
|
|
8 |
Liquid ammonia horizontal tank |
CLG2000-20 |
20 m3 |
6806×2028×2611 DN2000×14 |
14 |
Double elliptic |
10188 |
5585 |
|
|
9 |
Liquid ammonia horizontal tank |
CLG2200-32 |
32 m3 |
8914×2232×2810 DN2200×16 |
16 |
Double elliptic |
16301 |
8795 |
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(20000L) |
|
Product model |
|
CLG2000-20 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
6724*2024*2614 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN2000*12*6724 |
|
Tank volume |
m3 |
20 |
|
Tank thickness |
mm |
12 |
|
End heads thickness |
mm |
12 |
|
Curb mass |
kg |
5150 |
|
Rated mass |
Kg |
7980 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
More pictures of hot sale lpg gas storage tanks as below

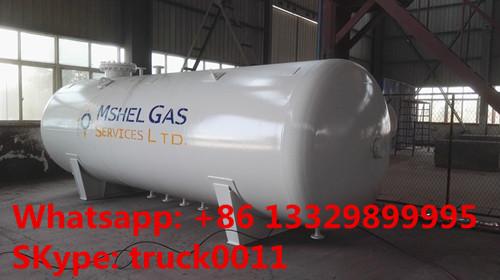

hot sale 20,000L bulk surface lpg gas storage tank
best price 20m3 bullet type lpg gas storage tank for sale
CLW brand lpg gas pressure vessels have passed US ASME standard
