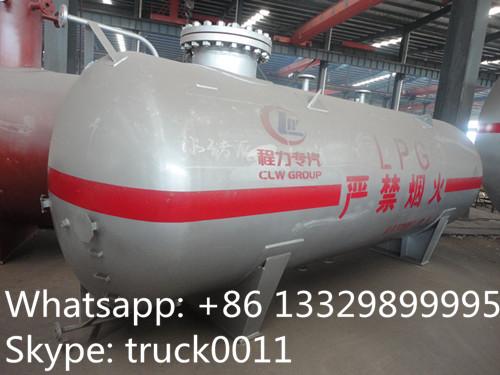

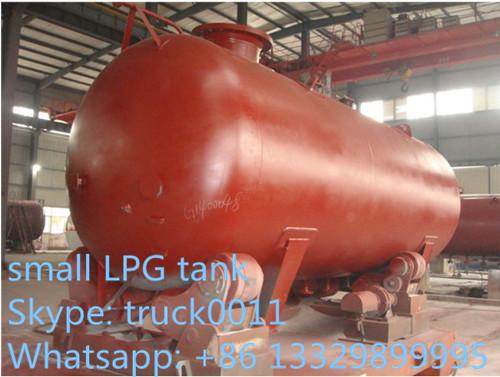

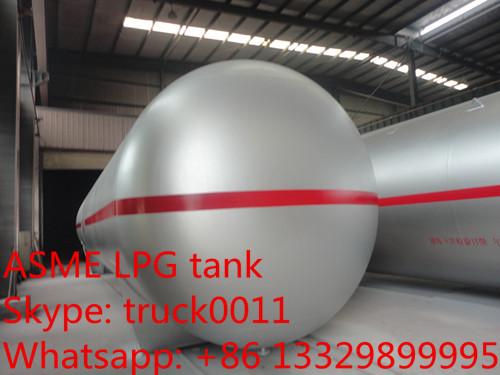

high safety factory direct sale 12tons bulk surface LPG gas storage tank, ASME standard propane gas storage tank
high safety factory direct sale 12tons bulk surface LPG gas storage tank, ASME standard propane gas storage tank
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of pressure vessels in China, such as bulk lpg gas tank, lpg gas trailer, bulk lpg gas delivery truck, lpg gas truck with dispenser machine, skid lpg gas station, etc. With many years' developing, Chengli Special Automobile Co., Ltd. could supply 5,000L to 120,000L bulk lpg gas storage tanks, 40.5cbm to 59.52cbm lpg gas trailer, 5cbm to 35cbm lpg gas truck, etc. And our CLW brand pressure vessels have been exported all over the world.
The Function Characteristic of Liquefied Gas Truck of Chengli Company
The anticorrosion coating of liquefied gas semi-trailer adopt the following process: sandblast, spray painting, purging and so on.
There are domestic or imported safety accessories with high quality, its matching is complete.
We adopt scientific advanced construction process strictly, ensure that the products are with the lowest shrinkage and the highest dimensional stability at low temperature.
We inspect the quality of product strictly , ensure that A & B type of welding seam pass the examination of level two radiographic test, C & D type of welding seam pass the examination of level one radiographic test.
If you're interested in our lpg gas pressure vessels, pelase feel free to send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
The main parameters of hot sale 32,000L surface lpg gas storage tank as below
|
Item |
Unit |
Main parameters |
|
Product name |
|
LPG gas storage tank(32000L) |
|
Product model |
|
CLG2300-32 |
|
Loading medium |
|
LPG gas (propane) |
|
Overall dimension(L*W*H) |
mm |
8158*2324*2914 |
|
Tank dimension(inner diameter*thickness*length) |
mm |
DN2300*12*8158 |
|
Tank volume |
m3 |
32 |
|
Tank thickness |
mm |
12 |
|
End heads thickness |
mm |
14 |
|
Curb mass |
kg |
7110 |
|
Rated mass |
Kg |
12768 |
|
Designed pressure |
Mpa |
1.77 |
|
Working pressure |
Mpa |
≤1.6 |
|
Working temperature |
℃ |
≤50 |
|
Hydraulic test pressure |
Mpa |
2.22 |
|
Air tight test pressure |
Mpa |
1.77 |
|
Tank and main Material pressure components |
Q345R,16Mnlll |
|
|
Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
|
Chosen safety fittings |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
