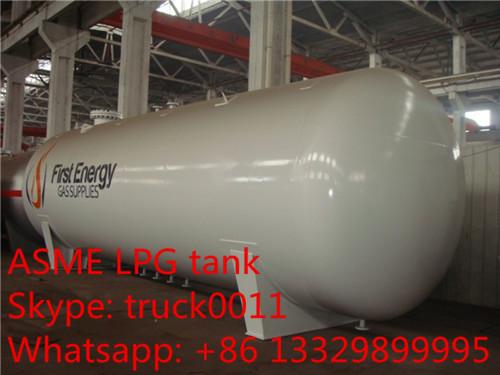

China brand best price ASME 100cbm LPG Storage Pressure Vessel, factory sale 100,000L bulk lpg gas propane storage tank
China brand best price ASME 100cbm LPG Storage Pressure Vessel, factory sale 100,000L bulk lpg gas propane storage tank
1. Specification:
Design Pressure:1.77Mpa
Withstand Test Pressure: 2.22Mpa
Max Allowed Working Pressure: 1.71Mpa
Curb Weight :21228kg
Material of Tank: Q345R
Standard: GB150, TB/T4731
X-ray testing: 100%
2. Basic Equipment:
Pressure Gauge, Safety relief valve , Content Gauge, Manhole, Emergency Valve, Sewage Outlet
3. Advantages:
a.) Fixed-point procurement of raw material manufacturer
b.) Strictly inspection for incoming material
c.) Vigorous production process
d.) Nondestructive examination / 100% X-ray testing
e.) Water pressure and air tightness testing
CLW is the Famous trademarkin china .and our factory is the only one who can produce the biggest LPG tanker in china, ourproducts fully passed ISO9001-2000 international quality system and 3Cauthentication.
we have the biggest LPG trailer and LPG truck in the world:
A. we have thebiggest LPG trailer in the world, the valid volume is
58.5cbm;you will find it only cost low transport costs, and carry more profit.
B. and of cause we havethe biggest LPG truckin China, it's valid volume is
35.5cbm;
C.you will find our LPG storage tank ranged from 10cbm to 100cbm. both on the floor ones and in the ground ones.
If you're interested in our lpg gas pressure vessels, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
main technical parameters of hot sale 100m3 surface lpg gas storage tank as below
| Item | Unit | Main parameters |
| Product name | LPG gas storage tank(100000L) | |
| Product model | CLG3100-100 | |
| Loading medium | LPG gas (propane) | |
| Overall dimension(L*W*H) | mm | 13866*3132*3722 |
| Tank dimension(inner diameter*thickness*length) | mm | DN3100*16*13866 |
| Tank volume | m3 | 100 |
| Tank thickness | mm | 16 |
| Endplates thickness | mm | 18 |
| Curb mass | kg | 20410 |
| Loading capacity | Kg | 39900 |
| Designed pressure | Mpa | 1.77 |
| Working pressure | Mpa | ≤1.6 |
| Working temperature | ℃ | ≤50 |
| Hydraulic test pressure | Mpa | 2.22 |
| Air tight test pressure | Mpa | 1.77 |
| Filling ratio | 0.95 | |
| Corrosion allowance | 1mm | |
| Heat treatment | Stress relief | |
| Propane density | Ton/cubic meters | 0.42(50℃) |
| Service time | Years | 15 |
| Tank and main Material pressure components | Q345R,16Mnlll | |
| Standard |
<<GB150steel pressure vessel>>,<<Supervision Regulation on Safety Technology for Pressure Vessel>>
|
|
| Chosen assembly |
Safety valve, magic level gauge, pressure gauge, temperature gauge, cut-off valve, etc.
|
|

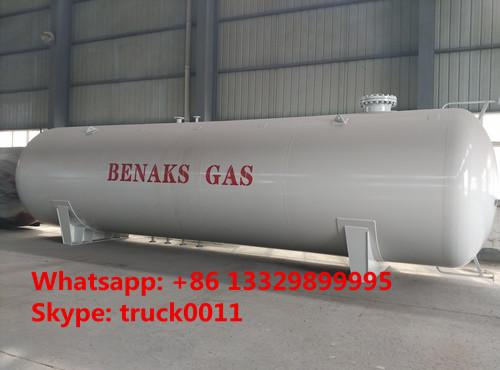

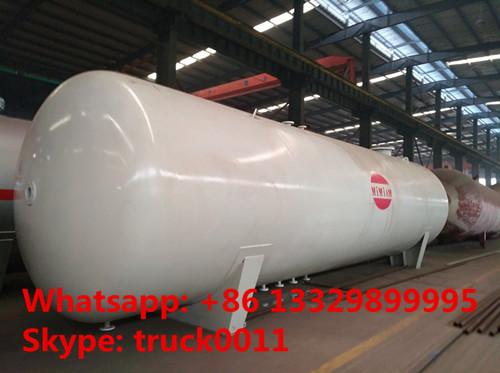

Surface lpg gas storage tank for sale
high quality ASME 80,000Liters surface lpg gas storage tank for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
