3 axles 45ft refrigerated van trailer for sale, factory sale refrigerator van body trailer, 45tons cold room semitrailer
3 axles 45ft refrigerated van trailer for sale, factory sale refrigerator van body trailer, 45tons cold room semitrailer
And the insulation body adopts high quality fiberglass for exterior and interior layers, 80mm PU foam sheets with one-formed vacuum negative pressure as the middle insulation layer. And the insulation body van is a sealed sheets, adopting high quality safe adhesive glued them the sheets tog, fastened by buried with high strength screws. And there will be aluminum alloy ventilating slots at the bottom for the long van. The cooling unit of the refrigerated semitrailer adopts USA K brand SK1800 model trailer independent cooling unit, and the temperature can be adjusted with below 12 degree. The insulation van trailer can installed ith meat hooks.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of refrigerated trucks, such as ISUZU refrigerated truck, dongfeng reefer van truck, Foton refrigerated truck, JMC freezer van, Chang'an freezer minivan, etc. More information, please feel free to contact with Ms. Anita Deng.
If you're interested in our truck, please feel free to send email to truck0011@163.com or talk to Anota directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
main parameters of hot sale CLW brand 45tons refrigerated van box semitrailer manufactured by Chengli Special Automobile Co., Ltd. as below
|
Main Dimensions |
|
|
Overall Dimensions |
14600*2500*4000mm |
|
Van Dimensions |
13820*2330*2360mm |
|
Tare Weight |
10000kg |
|
Loading Capacity |
30000kg |
|
Photo only for reference, final product can be made according to exact requirements. |
|
|
Van Body |
|
|
Van Body Stuff |
FPR, Roofing iron, PPGI Aluminum, Duralumin |
|
Fact Cubage(m3) |
55~65 |
|
Insulation Material |
Polyurethane |
|
Insulation Thickness |
8cm |
|
Door |
Rear door, optional for side door |
|
Temperature Range |
-25° to +27° |
|
Refrigerator System |
|
|
Brand |
US brand, Thermo King |
|
Refrigerant |
R404A |
|
Coefficient of Heat Insulation |
0.4 |
|
Chassis |
|
|
Main Beams |
Special design I beam, connected by bolts and nuts with van body, removable from van body for separate transportation; |
|
Axle |
3 axles |
|
BPW 13Ton, FUWA, L1 brand are optional |
|
|
Landing Gear |
JOST brand Two-speed, manual operating, heavy duty landing gear |
|
King Pin |
JOST brand 2” bolt-in king pin |
|
Suspension |
German design heavy duty mechanical suspension |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
Wheel rim |
8.25-22.5 wheel rim, 13 pieces including one spare |
|
Tire |
11R22.5 tubeless tire, 13 pieces including one spare |
CLW refrigerated van trailer, adopts high quality HUWA/BPW 3 axles, 12 sets of 11.00-20, 28ton outriggers, 7 spring steel, 90#/50# traction pin, 1.5m length tool box, and one spare tire frame, etc.

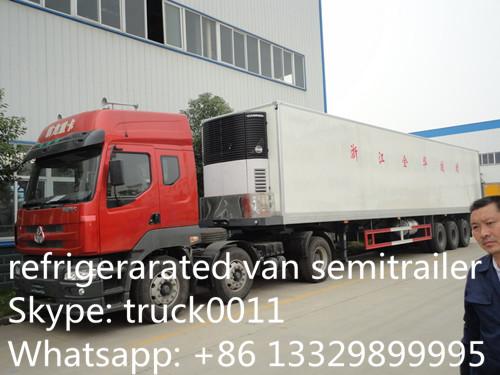

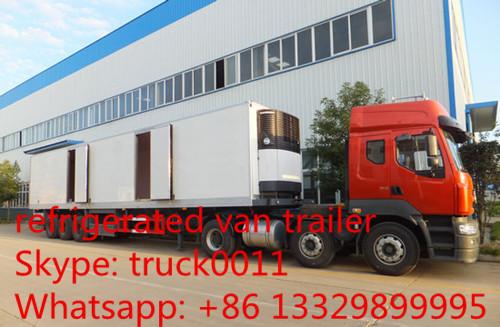

More pictures of hot sale CLW brand 40ft refrigerator van semitrailers as below
best price and high quality cold room van semitrailer as below
