dongfeng 95hp diesel 4*2 3ton frozen food transported truck, hot sale dongfeng brand 5tons frozen food dolc room truck
dongfeng 95hp diesel 4*2 3ton frozen food transported truck, hot sale dongfeng brand 5tons frozen food dolc room truck
Chengli Special Automobile Co., Ltd manufactures refrigerator trucks since 2004s in China. With so many years’ experience in manufacturing, we Chengli Special Automobile Co. Ltd could manufacture and sell vaccine delivery vehicle, meat hook refrigerated truck, fruit and vegetables refrigerated truck, milk food transport refrigerator truck, insulation van truck, van refrigerated truck, freezer minibus, small refrigerated truck, medium freezer van truck, big refrigerated truck, refrigerator semi-trailer, freezer refrigerated vehicles, dongfeng brand cold room truck, ISUZU brand refrigerated truck, FAW refrigerated truck, FOTON refrigerated truck, Chang’an freezer van truck, Yuejin refrigerated truck, JMC refrigerated truck, CMAC refrigerator truck, Aoling refrigerated truck, the smallest refrigerated truck, etc. More information, please feel free to contact with Ms. Anita.
If you're interested in our dongfeng frozen food truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995.
Website: www.trucksinchina.com
Technical parameters of 3ton Dongfeng brand diesel Euro III frozen food truck for sale
|
Main Technical Parameter |
||||
|
Brand |
CLW |
Product Name |
Refrigerated Van |
|
|
Gross Vehicle Weight (kg) |
6495 |
Overall Dimension (mm) |
5995x2020x3000 |
|
|
Rated Payload (kg) |
2865 |
Box inner Dimension(mm) |
4000x1850x1800 |
|
|
Curb Weight (kg) |
3500 |
Cab Allowed Persons |
2 |
|
|
Appr/Dep Angle(º) |
19/10 |
F/R Suspension (mm) |
1032/1663 |
|
|
Axle No. |
2 |
Wheelbase (mm) |
3300 |
|
|
Axle Load (kg) |
2385/4110 |
Max Speed (km/h) |
90 |
|
|
Others |
1. External/internal of the van are glass fiber, between them is Polyurethane foam material. All joint glued and urethane sealed and with hightensile screw to fasten. External corner capped with radius aluminum extrusions
2. Floor: one layer cold-rolled steel plate, one layer polyurethane, one player bamboo plywood and cover with antiskid checkered plate floor.
3. Door: double rear doors with stainless steel door furniture and refrigeration furniture door seals. door buffers and stainless steel door retainers included.
4. Equipped with perfect refrigeration unit to down the temperature to -18degree©.
5. External fittings: mudguard, side guard system, block buffers, side and rear marker lights, side and rear marker plates, step, etc.
6. Accessories: driver's tool, manual |
|||
|
Chassis Technical Parameter |
||||
|
Chassis Model |
EQ1060TJ20D3 |
Chassis Name |
Truck Chassis |
|
|
Chassis Brand |
Dongfeng |
Manufacturer |
Dongfeng Automobile Co.,Ltd |
|
|
Overall Dimension (mm) |
5820×1940×2080 |
Tyre No. |
6 with 1 spare tyre |
|
|
App./ Dep. Angle(º) |
19/15 |
Tyre Spec. |
7.00-16 |
|
|
Leaf Spring No. |
8/9+5 |
Front Track (mm) |
1506 |
|
|
Fuel Type |
Diesel |
Rear Track (mm) |
1466 |
|
|
Drive Type |
4 x 2 |
Brake System |
Air brake |
|
|
Emission Standard |
Euro III |
Gear Box |
5 speed forward and 1 reverse |
|
|
Engine Technical Parameter |
||||
|
Engine Model |
CY4102-C3F |
Engine Brand |
CHAOCHAI |
|
|
Displacement ( mL ) |
23856 |
Power |
70KW/95HP |
|

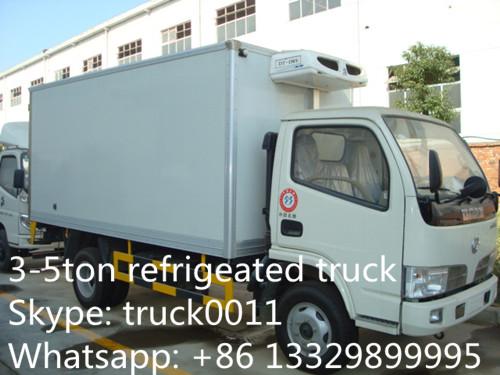

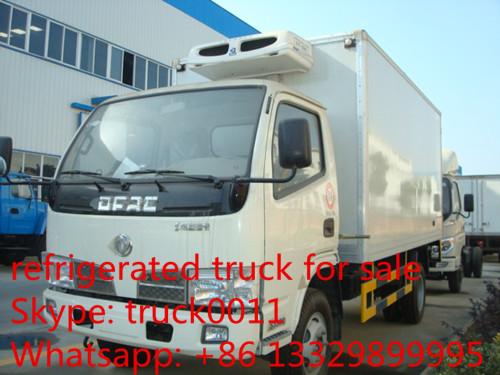

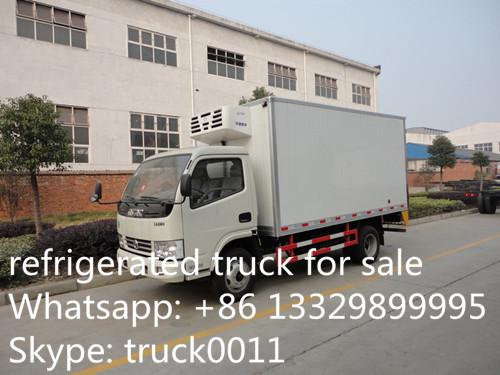

More pictures of hot sale dongfeng 3ton frozen food truck as below.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
