Dongfeng XBW Scissor type truck with bucket lift, 2020s new manufactured high altitude operation truck for sale
Dongfeng XBW folded lifter truck, is also called high aerial working truck, truck with bucket lift, lamp maintain truck, etc.
The truck with bucket lift adopt Scissor type Vertical lifting platform, with cargo van, the working height is from 6m to 12m. People can operate up and down, the bucket with operation system controlled by hydraulic; people can operate the lifting at the working bucket. The truck with bucket lift adopts imported and China-made high quality proportional reversing valve and hydraulic cylinders, reversing even, flexible operation. There are two sets of hydraulic outriggers, hydraulic control telescopic, assuring the reliability and safety when operation.
If you're interested in our hydraulic bucket lift truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995
Website: www.trucksinchina.com
The main technical parameters of dongfeng XBW scissor type truck with bucket lift manufactured by Chengli Special Automobile Co., Ltd. as below.
| Product name | Dongfeng XBW Scissor type truck with bucket lift | |
| Chassis | EQ1050NJ20D3 | |
| Working height(M) | 6-12 | |
| Parameters | Overall dimension(L*W*H)mm) | 5995×2000×2600 |
| Total mass(kg) | 5495 | |
| Rated mass(kg) | 1970,1905 | |
| Curb mass(kg) | 3200 | |
| Approach/departure angle(mm) | 19/15 | |
| Front/rear suspension(mm) | 1032/1663 | |
| Fuel type | Diesel | |
| Oil consumption of 100km(L) | 9 | |
| Max speed(km/h) | 90 | |
| Engine | Model | YC4F90-30 / CY4102-C3F |
| Displacement/power (kw) | 2659 / 66,3856/70 | |
| Manufactucturer | Yuchai/Chaochai | |
| Type | 4 cylinders in line diesel engine | |
| Chassis | Drive type | 4×2 |
| Wheelbase(mm) | 3300 | |
| Front/rear tread(mm) | 1404 / 1458 | |
| Front bridge | 1.5T | |
| Rear bridge | 3.0T | |
| Power steering | Two spoke steering wheel,Recirculating Ball Steering Gear | |
| transmission | Five speed forward speed and one reverse speed, mechanism transmission,flexible drawing style manipulation | |
| clutch | Single chip, dry type diaphragm spring clutch | |
| brake | Hydraulic system drum type； | |
| Driver cab | Flat head with double rows | |
| Steel spring(front/rear) | 8/9+5,6/8+4 | |
| tyre | 6.50-16,7.00-16 | |
| Air-conditioner | Chosen to install | |
| Bucket lift truck | Working height | 8-12m |
| Special functions | The rated mass of the working bucket | 300-500kg |
| Persons in bucket | 2-3 | |

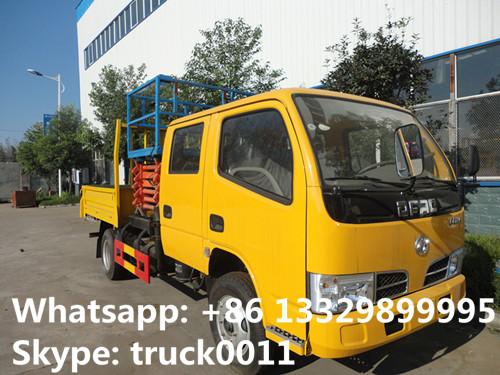

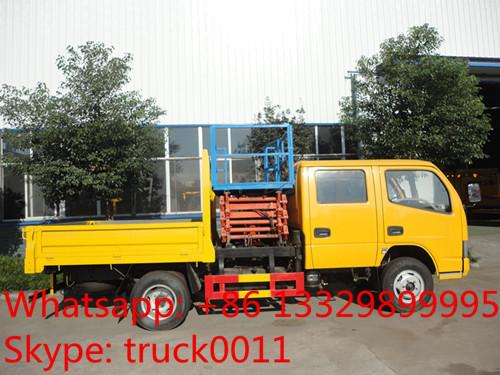

More pictures of CLW Brand hydraulic bucket truck manufactured by Chengli Special Automobile Co., Ltd. as below.
HOT SALE! Dongfeng XBW Scissor type truck with bucket lift for sale
