CLW 12m-24m aerial working platform truck with factory price, best price CLW brand hydraulic bucketr truck for sale
CLW 12m-24m aerial working platform truck with factory price, best price CLW brand hydraulic bucketr truck for sale
Chengli Special Automobile Co., Ltd. is the leading manufacturer of aerial working platform truck, high altitude operation truck, bucket truck, hydraulic lifting truck with bucket, etc. in China since 2004s. With many years' experience in manufacturing, special automobile aera, our aerial platform has more advantages than the trucks made by any other manufacturers. The high effiecny, high safety are the main feature of our aerial work platform.
As for the leading manufacturer and supplier of altitude operation trucks in China, let me Chengli Special Automobile Co., Ltd. tell you why customers purchase our aerial working platform truck?
If you're interested in our high altitude operation truck, please feel free to send email to truck0011@163.com or talk to Anita directly by Whatsapp/Wechat/Mob.: +86 13329899995
Website: www.trucksinchina.com
More pictures of CLW Brand aerial working platform truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Advantages:
1.Imported electro-hydraulic ration control valve, step less speed regulation
2.Ground & basket electro-hydraulic control
3.Little folding beam,outreach widely
4.Large load capacity of platform, loading capacity 200kg
5.Telescopic lifting beam, higher lifting height
6.Function of position restriction, alarm in dangerous working status, high security performance
7.Large span of triggers, higher stability, triggers can be operated simultaneously or respectively
8.Euipped with urgent motor, more safe in emergency.
9.Inter-lock performance, safe and reliable operation.
10. the working height is from 14m to 22m.
main parameters of hot sale DONGFENG 18-22M aerial working platform truck as below
| Whole Truck Main Technical Parameter | ||||
| Product Name | Dongfeng Tianjin 18m high altitude operation truck | Gross Vehicle Weight (kg) | 9625(Kg) | |
| Curb Weight (kg) | 9430(Kg) | Overall Dimension(mm) | 10110×2460×3730(mm) | |
| Working Height(m) | 18m-22m | Cab Allowed Persons | 2 | |
| Axle No. | 2 | Wheelbase (mm) | 4700/5000 | |
| Chassis Technical Parameter | ||||
| Chassis Model | DFL1120B | Chassis Name | Truck Chassis | |
| Chassis Brand | Dongfeng | Manufacturer | Dongfeng company | |
| App./ Dep. Angle(º) | 20/12(°) | Tire Spec. | 6.50-16*6 with 1 spare tire | |
| Leaf Spring No. | 8/9+5 | Front/rear suspension (mm) | 1100/1500 | |
| Fuel Type | Diesel | Front/rear tread(mm) | 1414/1435 | |
| Drive Type | 4x2 | Driver cab | Dongfeng Tianjin luxurious driver cab | |
| Steering Type | Power steering | Gear Box | 6 speed forward and 1 reverse | |
| Brake | Oil braking | Driver cab person | 2, 3 | |
| Max speed(km/h) | 90 | Rear axle | ISUZU rear axle | |
| Emission standard | EuroⅢ | Air-conditioner | Yes | |
| Engine Technical Parameter | ||||
| Engine Model | ISDe185 30 | Emission Standard | Euro Ⅲ | |
| Displacement ( ml ) | 6700 | Power (KW) | 136(185hp) | |
| Cylinder No. | 6 in line | Engine Type | 6cylinders | |
| Work platform parameter | 1. Working platform rating load 200kg; | |||
| 2. Max operation height: 16m; | ||||
| 3. Max working platform height: 18-20m | ||||
| 5. Max rotation angle:360° | ||||
|
Superstructure parameter: 1. Rotational alert lamp on the top of the cabin. 2. Four hydraulic outriggers which can be operated independently or simultaneously. 3. Insulated bucket for worker to operation. 4. Imported electro-hydraulic ratio control valve. 5.Working height: 11m; working arms: 3 folded telescopic arm, 360° continuous rotation, 6. Equipped with auxiliary lifting hanger loading 1 ton. |
||||

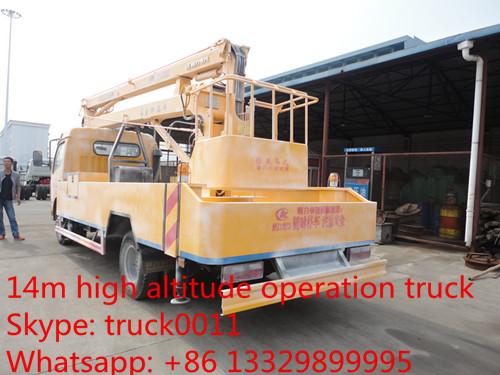

More pictures of high altitude operation truck as below.
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
