forland RHD 8cbm animal feed discharging truck, high quality and competitive price poultry bulk feed pellet truck
forland RHD 8cbm animal feed discharging truck, high quality and competitive price poultry bulk feed pellet truck
Forland 8cbm feed pellet transportation truck, adopts forland jieshun 1800 truck body, front-reversible driver cab, chaochai 100hp Euro 3 diesel engine, 5-30 transmission, 7.00-16 tyre, 5ton rear tread, 170 boom, and with warm air, etc.
The bulk feed tank volume of 8cbm, adopts high quality 4mm carbon steel, transferring feeds by electronic auger, working with putting on 380volts electronic power. The electronic motor drives the Mechanical auger screw type to discharge with high discharging speed of 0.55ton/min. The Barrel type auger at the tank top is driven by the hydraulic motor, and the electronic bottom control lifting up and down, rotation left and right, with the horizon range of 6.2m and vertical range of 7.2m. So little Residual rate, less than 0.1. And the feed pellet semitrailer can be continuous working, highly improving the working productiveness.
There are two compartments of the feed tank semitrailer, separate compartment with different kinds of feeds. Every unit is with simple structure, easy and flexible operation, easy to maintenance, etc.
If you're interested in our bulk feed truck, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.
Website: www.trucksinchina.com

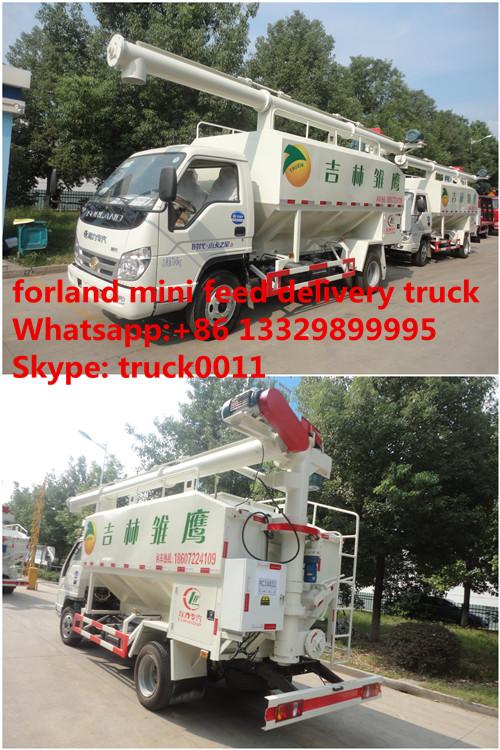

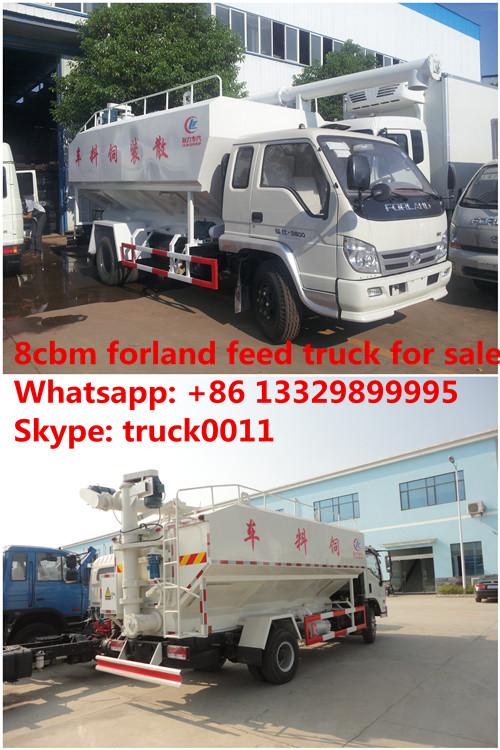

More pictures of hot sale forland RHD animal feed delivery truck as below.
More information, please feel free to contact with Ms. Anita Deng.
main technical parameters of forland 4*2 LHD poultry feed tank truck for sale
| Forland 8cbm bulk feed delivery truck, forland 4ton animal feed transported truck | |||
| Product name | Bulk feed transportation truck | Overall dimension(L*W*H) | 6550×2000×3260 |
| Tank volume | 6-8cbm | Compartments | 2 compartments with 2 different feeds |
| Driving type | 4*2 LHD, RHD is selective | Gearbox | 5 speed gearbox |
| Axle | 4tons rear axle | Total mass | 7495 (kg) |
| Driver cab | Forland 4*2 LHD D1695mm single row driver cab with warm air | Rated mass | 3000,3065 (kg) |
| Tyre nos. | 6.50-16*6+1 | Curb mass | 4300 (kg) |
| Max speed | 90 (km/h) | Wheelbase(mm) | 3360mm |
| Remark | 1, the tank material adopts high quality carbon steel, 2,The feed tank is with 2compartments to load 2 kinds of feeds with separate discharging operation system. 3, Sealed transportation and reducing wastage, saving manpower and bag price, easy operation and maintenance. 4, choose electronic system discharging way or hydraulic system discharging way 5, Low centre of gravity, reliable loading and discharging, good appearance with high quality |
||
| CLW5161ZSLD3 bulk feed truck chassis | |||
| Chassis model | BJ1073VEJEA-A | Fuel type | Diesel |
| Axle nos. | 2 | Emission standard | Euro 1 |
| Tyre nos. | 6+1 | Tyre specification | 6.25-20 |
| Engine | Xichai 98hp diesel engine | Wheelbase | 3600 |
| Rear axle | 4ton rear axle | Gearbox | 5 speed transmission |
| Chassis remark | Forland D1695 single row driver cab with warm air and power steering , xichai 98hp diesel engine,5 speed transmission, 6.50-16, 3360mm wheelbase, etc. | ||
The main parameters of 8m3 feed tank as below
| Feed tank parameters | ||
| Volume | 6-8 cubic meters | |
| Feed tank material | High quality Q235B carbon steel sheets | |
| Loading capacity | 3-4tons | |
| Discharging way | Electronic system discharging or Hydraulic system discharging | |
| Compartments | 2 compartments for two different feed pellets | |
| Discharging auger length | 6.36m | |
| Average discharging speed(kg/min) | 500-600 | |
| Full discharging time (minutes) | 15 | |
| Rotation angle of auger when discharging | ±180 degree | |
| max elevation angle of auger when discharging | 70 degree | |
| Delivery distance | Horizontal max range(m) | 6.5 |
| Vertical max range(m) | 8.2 | |
| Residual rate | No more than 0.10 |
|
