High quality and cheapest price dongfeng 4m3 90hp concrete mixer truck for sale,factory sale mixer dum mounted on truck
High quality and cheapest price dongfeng 4m3 90hp concrete mixer truck for sale,factory sale mixer dum mounted on truck
It is can loading and unloading by itself. After discharging the concrete, the mixer drum will be
cleaning automatically by its water suppling system. Our concrete mixer truck consists of seven main parts. They are hydraulic pump, reducer, mixing drum, operation system, water supply system,
feed hopper, outlet hopper.
The concrete mixertruckwe produceadopts Euro modern style, featuring attractive appearance,
rational structure and stable performance. The capacity ranges of our concrete mixer is from
3 to 15m3, meeting customers' various needs.
Structure drawing of mixer truck
Technical parameters of Dongfeng 4m3 small cement mixer
|
Items |
Descriptions |
Specifications and Types |
|
General |
Truck Name |
Concrete mixertruck |
|
Drive Type |
4*2 |
|
|
Gross Vehicle Weight(kg) |
14950 |
|
|
CurbWeight (kg) |
5980 |
|
|
Overall Dimensions L*W*H(mm) |
6650×2460×3300 |
|
|
Engine |
Engine Brand |
Yuchai |
|
Power |
140HP/ 103kw |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
EuroIV |
|
|
Displacement(ml) |
4214 |
|
|
Engine Type |
4 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling |
|
|
Chassis |
ChassisBrand |
Dongfeng |
|
Tire No. |
6 |
|
|
Tire Specification |
8.25-16 Steel tire |
|
|
Wheelbase (mm) |
3400 |
|
|
Axle No. |
2 |
|
|
Steering Wheel |
Left Hand Drive with power assisted |
|
|
Gear Box |
5speedforward with 1 reverse,manual |
|
|
Brake |
Airbrake |
|
|
Axle Capacity |
2.3T/6T |
|
|
Air conditional |
Suitable for tropical climate |
|
|
Superstructure |
Valid mixingvolume |
4m³ |
|
Mixing drum |
Pyriform Structure,Q345 |
|
|
PTO Type |
Full power take off |
|
|
Water tank volume |
400 liter |

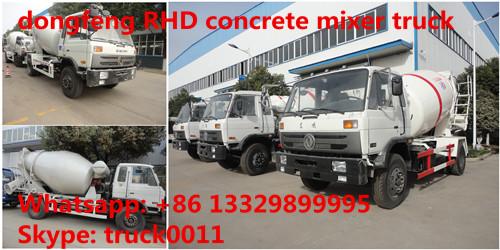

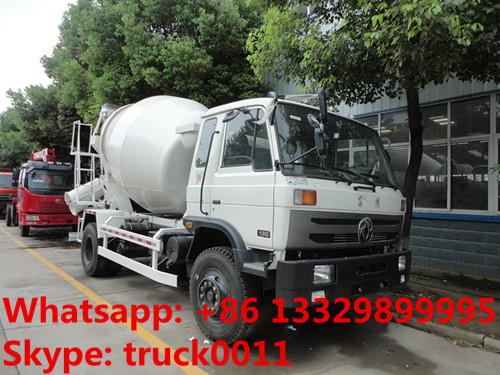

More Pictures of dongfeng 4x2 best price4cbm concrete mixer truck
dongfeng mixer truck for sale
high quality and best price dongfeng 4m3 concrete mixer truck for sale
Above parameters is just for your reference. We, Chengli Special Automobile Co.,Ltd located in Suizhou City, Hube Province, China is a professional trucks manufacturer. We can customize many special trucks according to your requirement. If you are interested in our products and have some demand, please let me know throught following contact information without any hesitate.
More pictures, please feel free to contact with Ms. Anita Deng.
