factory direct sale dongfeng brand 8,000L milk tank truck, hot sale dongfeng 8,000L stainless steel liquid food truck
factory direct sale dongfeng brand 8,000L milk tank truck, hot sale dongfeng 8,000L stainless steel liquid food truck
The milk tanker truck is also called fresh milk transporter, milk tanker, liquid food transporter, mobile liquid food transported vehicle. The tank body is made of food grade stainless steel plate. The outer part of the tank body needs to be used as insulation layer to prevent the deterioration of fresh milk. The inside of the tank body needs smooth and no acute angle. A CIP (cleaning device) is added to each milk tank.
Fresh milk transport vehicle modification configuration: the tank structure is divided into three layers: insulation layer, insulation layer and tank body.
One. The body of the frame can be made of food grade 304 material stainless steel plate, and the tank body can be made into 2-3 cabins. The tank body requires smooth and no acute angle. A cip (cleaning device) tank is provided in each milk tank with a washer.
Second, the middle of the tank is an insulation layer, which has a heat preservation effect to prevent deterioration of fresh milk. The temperature change does not exceed 1 degree for 24 hours at a temperature difference of 30 degrees. The insulation material is insulated with 80 (mm) thick polyurethane foam material.
Third, the outer layer of the tank (protective layer of the insulation layer) is made of 2mm thick 304L stainless steel. The outer skin and trunk of stainless steel are beautiful in appearance, the whole body is beautiful in appearance, scientific in structure, light in weight and good in strength.
4. Each single warehouse has a separate discharge port (self-flow port) and a feed port (can port).
5. Optional chiller, rock wool insulation, exhaust gas circulation heating, and stainless steel pump to make the vehicle have a suction function.
main parameters of hot sale dongfeng 8,000L milk tank truck as below
|
Truck chassis: Dongfeng duolika truck chassis, new model 2030 single row truck body, chaochai 136hp Euro 4 diesel engine, 5 speed transmission, 8.25-20tryes*6+1, 2.2ton front axle/4.2tons rear axle, 191mm beam, power steering, air cut braking, etc. Milk tank device: milk tan adopts 304-2B foodgrade stainless steel, 8mm thickness PU foam, standard 2 compartments with two self-discharging outlet and PIC cleaning device. The insulation function: the temperature will be changed one degree within 24 hours |
|
||||||
|
Product name |
Dongfeng duolika 8,000L milk delivery truck for sale |
Overall dimension(L*W*H) |
7000X2300X2650(mm) |
|
|||
|
Truck chassis model |
DFA1110SJ11D3 |
Tank dimension |
XX |
|
|||
|
Total mass |
11495(Kg) |
Rated mass |
6000(Kg) |
|
|||
|
Curb mass |
5300(Kg) |
Max speed |
90(km/h) |
|
|||
|
Chassis main parameters |
|||||||
|
Truck chassis model |
DFA1110SJ11D3 |
Fuel type |
Diesel |
||||
|
Axle nos. |
2 |
Oil cunsuption |
21.2L/100km |
||||
|
Wheelbase |
3800 |
Tyre nos. |
6 |
||||
|
Seated person |
3 |
Tyre specification |
8.25-20 14PR,8.25R20 14PR |
||||
|
Emission standard |
Euro Ⅳ |
||||||
|
Engine parameters |
|||
|
Engine model |
Manufacturer |
Displacement (ml): |
Power (kw): |
|
CY4102-CE4B |
Chaochai power |
3856 |
100 |
There are three layers of the milk semi-trailer, the inner tanker is manufactured by 4mm thick 304/2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed one degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel.
The inner tanker has cleaning device, cleaning rod(cleaning ball), cleaning pipe(with the diameter of 38mm), turntable cleaning sprayer, etc. Automatically cleaning when with water source.
More pictures of hot sale dongfeng 8,000L foodgrade milk tank truck as below .

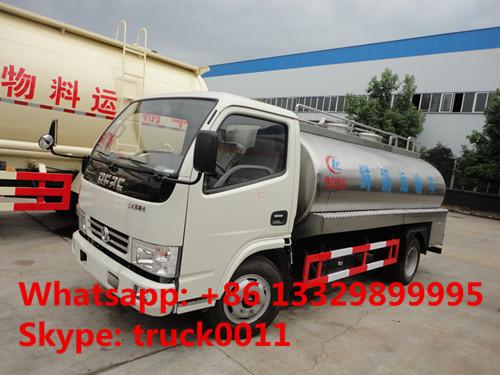

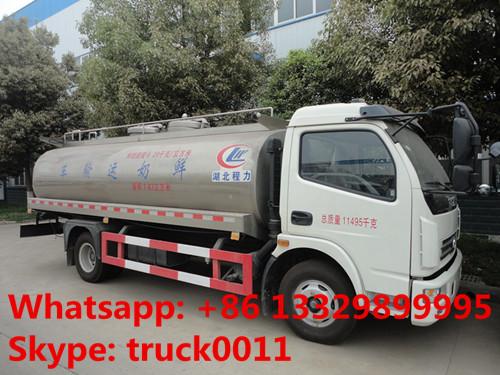

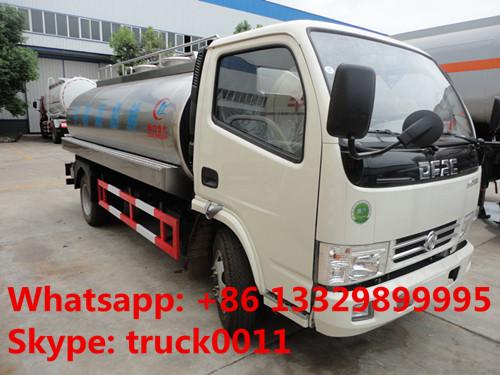

dongfeng 8,000L milk tank truck for sale
high quality and best price stainless steel 8m3 fresh milk tank truck for sale
