FAW J6 13,000L stainless steel foodgrade milk tank truck for sale, China famous FAW brand liquid food truck for sale
FAW J6 13,000L stainless steel foodgrade milk tank truck for sale, China famous FAW brand liquid food truck for sale
The milk tanker truck is also called fresh milk transporter, milk tanker, liquid food transporter, mobile liquid food transported vehicle. The tank body is made of food grade stainless steel plate. The outer part of the tank body needs to be used as insulation layer to prevent the deterioration of fresh milk. The inside of the tank body needs smooth and no acute angle. A CIP (cleaning device) is added to each milk tank.
Fresh milk transport vehicle modification configuration: the tank structure is divided into three layers: insulation layer, insulation layer and tank body.
One. The body of the frame can be made of food grade 304 material stainless steel plate, and the tank body can be made into 2-3 cabins. The tank body requires smooth and no acute angle. A cip (cleaning device) tank is provided in each milk tank with a washer.
Second, the middle of the tank is an insulation layer, which has a heat preservation effect to prevent deterioration of fresh milk. The temperature change does not exceed 1 degree for 24 hours at a temperature difference of 30 degrees. The insulation material is insulated with 80 (mm) thick polyurethane foam material.
Third, the outer layer of the tank (protective layer of the insulation layer) is made of 2mm thick 304L stainless steel. The outer skin and trunk of stainless steel are beautiful in appearance, the whole body is beautiful in appearance, scientific in structure, light in weight and good in strength.
4. Each single warehouse has a separate discharge port (self-flow port) and a feed port (can port).
5. Optional chiller, rock wool insulation, exhaust gas circulation heating, and stainless steel pump to make the vehicle have a suction function.
The main parameters of FAW 13,000L stainless steel foodgrade liquid food milk tank truck as below
|
FAW 13,000L food grade milk tank truck for sale Truck chassis: FAW J6L flathead driver cab, xichai BF6M2012-18E4 180hp Euro 4 diesel engine, FAW 6 speed transmission, 10.00R20*6+1, 435 rear axle, 237 double layers beam, original air conditioner, electronic wondow, with ABS, etc. Milk tank device: milk tan adopts 304-2B foodgrade stainless steel, 8mm thickness PU foam, three compartments with three self-discharging outlets and PIC cleaning device. The insulation function: the temperature will be changed one degree within 24 hours |
|||
|
Product name |
FAW J6 13,000L fresh milk tank truck for sale |
Overall dimension(L*W*H) |
8800X2490X3200(mm) |
|
Chassis model |
CA1160P62K1L2A1E4Z |
Cargo body dimension |
XX (mm) |
|
Total mass |
16000(Kg) |
Rated mass |
7455(Kg) |
|
Curb mass |
8350(Kg) |
Max speed |
90(km/h) |
|
Chassis main parameters |
|||
|
Truck chassis model |
CA1160P62K1L2A1E4Z |
Fuel type |
Diesel |
|
Axle nos. |
2 |
Oil cunsuption |
24.1L/100km |
|
Wheelbase |
4700 |
Tyre nos. |
6 |
|
Seated person |
3 |
Tyre specification |
10.00-20 18PR,10.00R20 18PR |
|
Emission standard |
Euro Ⅳ |
||
|
Engine main parameters |
|||
|
Engine model |
Manufacturer |
displacement(ml): |
Power (kw): |
|
BF6M2012-18E4 |
Yiqi FAW |
6060 |
139 |

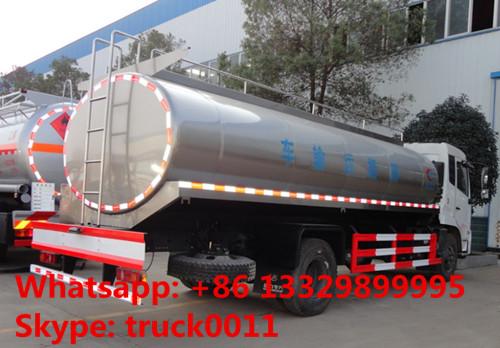

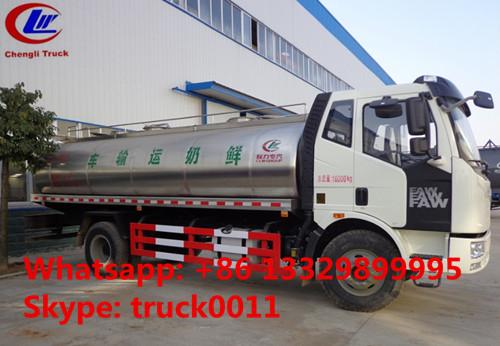

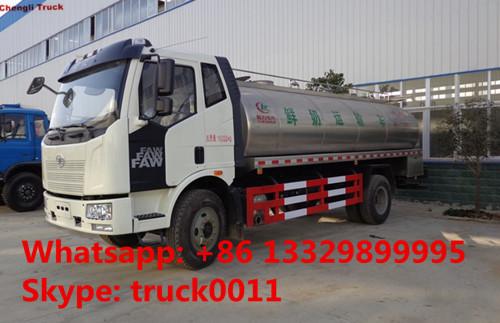

More pictures of hot sale FAW brand 13,000L stainless steel milk tank truck manufactured by Chengli Special Automobile Co., Ltd. as below.
Hot sale FAW brand liquid food transported truck
high quality and best price FAW brand stainless steel milk tank truck for sale
There are three layers of the milk semi-trailer, the inner tanker is manufactured by 4mm thick 304/2B food grade stainless steel; the middle is 80mm PU foam insulation layer, and 60mm PU foam of the manhole part, the temperature will be changed one degree within 24 hours; the exterior of the tanker is 1.2mm thick 304 stainless steel mirror panel.
The inner tanker has cleaning device, cleaning rod(cleaning ball), cleaning pipe(with the diameter of 38mm), turntable cleaning sprayer, etc. Automatically cleaning when with water source.
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of milk truck, milk tank, milk tank trailer, tank truck for milk, stainless steel milk tank, food grade tanker, farm pickup tank truck, liquid food tank, milk trailer, etc. With many years’supplying, Chengli Special Automobile Co., Ltd. could supply 5000L-25000L milk tank truck, 30000L-50000L milk tank trailer, dongfeng milk tank truck for sale, FAW food grade milk truck for sale, ISUZU milk truck for sale, Forland milk truck, liquid food transported tank truck,etc. More information, please feel free to contact with Ms. Anita.
