59600 liters ASME Material tri-axle Gas delivery trailer for sale, lpp trailer for sale, 25tons bulk propan gas trailer

Price Negotiable
Price: negotiable
MOQ: 1 unit
Delivery Time: 50 days
Brand: CLW
Product Description



59600liters ASME standard Material tri-axle Gas delivery trailer for sale, factory direct sale 25tons bulk propane gas tank semitrailer with cheapest price



1.Introduction of LPG tank trailer



LPG tank trailer is used to transport LPG gas/Liquefied Petroleum Gas/propane/LPG gas, this kind of semi trailer is widely used in third world countries, LPG tank trailer has very strict requirements to it's tank so there are not many factories in China can manufacture LPG tank trailer, but our factory Chengli Special Automobile Co.,LTD can not only manufacture it but also passed the AMSE standard, we will offer you 100% good quality product and we hope you can find the satisfied one in here!



2.Countries which we exporting LPG tank trailer



Africa and Asia are the two major exporting regions of our's. We mostly export our products to the following countries:



Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.



3.Advantages of our LPG tank trailer



    • The anti-corrosion coating surface use sand-blasting, flame plating, purging and other advanced technology.
    • High-quality China make and imported security accessories to be selected with complete facilities.
    • Strict, scientific and advanced construction technology, to ensure the lowest contraction percentage in the low temperature and the highest stability.
    • Strict quality test: 100% weld ray detection to weld in A and B Class, level II qualified. 100% magnetic particle detection to weld in C and D Class, level I qualified.
    • ASME standard available.
    •
    •
    •
    •
    • More information, please feel free to send email truck0011@163.com; or talk to Anita by whatsapp/wechat: +86 13329899995



4.Detailed data of LPG tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below.



Item

unit

Parameters

Products name



LPG tank semi-trailer

Volume

50

G.W

kg

36132

Net weight



15300

Rated loading



20832

Overall dimention

mm

12740×2480×3800

Number of axles



3

Wheel base



6800+1310+1310

Tread

Front wheel



-

Back wheel



1840/1840/1840

Front overhang/rear overhang

mm

-/1650

Number of plate spring(front/back)



-/7/7/7

Semi-trailer saddle maximum permissible load mass

kg

14260

Specification of tire



12.00-20, 12.00R20, 11.00-20, 11.00R20



Material



Q345R

Standard configuration

13 tons BPW axles, safety valve cover, single-fluid two-valve boxes, Jost legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency cut off valves, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders

Other specs



  • Filling medium: liquefied petroleum gas (propane)
  • Design pressure: 1.61Mpa
  • Design temperature: 50℃
  • Filling factor: 0.42t/m3
  • Corrosion margin: 1mm
  • Tank dimension DN×T×L: 2300×12×12372 mm

Standard

GB150-1998 Steel Pressure Vessels, Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedure

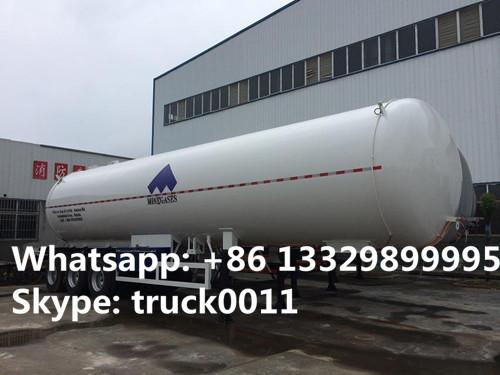

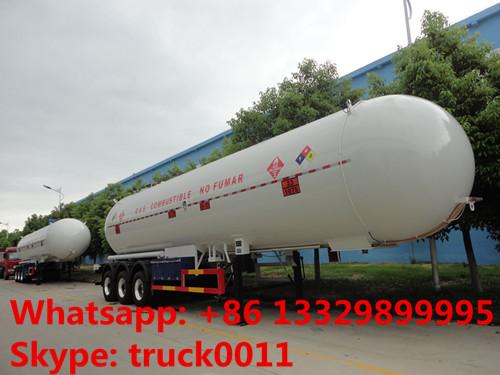

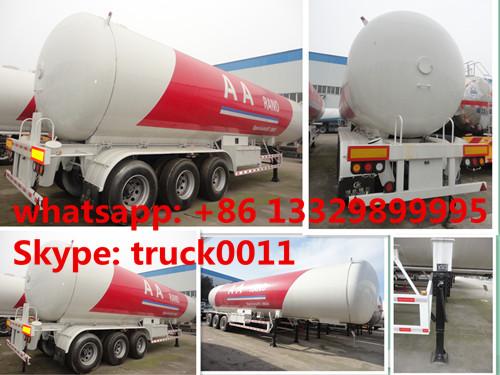

More pictures of hot sale 59600L lpg gas trailer as below.



More information, please feel free to contact with Ms. Anita.

Whatsapp/wechat: +86 13329899995

Skype: truck0011

QQ: 504873236
