FUWA leaf spring suspension triple axles 25ton lpg gas trailer for sale, lpg gas trailer for AA RANO COMPANY in Nigeria
FUWA 3 axles steel spring suspension triple axles 25ton lpg gas trailer for sale, lpg gas trailer for AA RANO COMPANY in Nigeria
1.Introduction of LPG tank trailer
LPG tank trailer is used to transport LPG gas/Liquefied Petroleum Gas/propane/LPG gas, this kind of semi trailer is widely used in third world countries, LPG tank trailer has very strict requirements to it's tank so there are not many factories in China can manufacture LPG tank trailer, but our factory Chengli Special Automobile Co.,LTD can not only manufacture it but also passed the AMSE standard, we will offer you 100% good quality product and we hope you can find the satisfied one in here!
2.Countries which we exporting LPG tank trailer
Africa and Asia are the two major exporting regions of our's. We mostly export our products to the following countries:
Tajikistan, Nigeria, Angola, Mongolia, Garner, Philippines, Kenya, Papua, New Guinea, Zimbabwe, Saudi Arabia, Congo, Laos, Kyrgyzstan, Owe Ning, Burma, Sultan, Indonesia, Zambia, Vietnam, Kazakhstan, Kampuchea, North Korea, Liberia, Algeria, Azerbaijan, Mexico, Uzbekistan, Maldives, Fiji, Namibia, The Democratic Republic of the Congo, Afghanistan, Chile, Equatorial Guinea, Mozambique, Djibouti, Peru Bolivia, Mauritanian, The Ivory Coast, Eritrea, Russia, Benin, Iraq, Brazil, Libya, Qatar, Vanuatu, Australia, Suriname, Iran, Cuba, Cameroon, New Zealand, The Marshall Islands, South Africa, Ethiopia, St. Kitts and Nevis, Sri Lanka, Niger, Malaysia, Trinidad and Tobago, Botswana.
More information, please feel free to send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.
3.Advantages of our LPG tank trailer
-
- The anti-corrosion coating surface use sand-blasting, flame plating, purging and other advanced technology.
- High-quality China make and imported security accessories to be selected with complete facilities.
- Strict, scientific and advanced construction technology, to ensure the lowest contraction percentage in the low temperature and the highest stability.
- Strict quality test: 100% weld ray detection to weld in A and B Class, level II qualified. 100% magnetic particle detection to weld in C and D Class, level I qualified.
- ASME standard available.
4.Detailed data of LPG tank trailer
|
Item |
unit |
Parameters |
||
|
Products name |
|
LPG tank semi-trailer |
||
|
Volume |
M³ |
50 |
||
|
G.W |
kg |
36132 |
||
|
Net weight |
|
15300 |
||
|
Rated loading |
|
20832 |
||
|
Overall dimention |
mm |
12740×2480×3800 |
||
|
Number of axles |
|
3 |
||
|
Wheel base |
|
6800+1310+1310 |
||
|
Tread |
Front wheel |
|
- |
|
|
Back wheel |
|
1840/1840/1840 |
||
|
Front overhang/rear overhang |
mm |
-/1650 |
||
|
Number of plate spring(front/back) |
|
-/7/7/7 |
||
|
Semi-trailer saddle maximum permissible load mass |
kg |
14260 |
||
|
Specification of tire |
|
12.00-20, 12.00R20, 11.00-20, 11.00R20 |
||
|
Material
|
Q345R |
|||
|
Standard configuration |
13 tons BPW axles, safety valve cover, single-fluid two-valve boxes, Jost legs, traction pins, liquid level gauge, pressure gauge, thermometer, emergency cut off valves, fire extinguishers, fire star cover, anti-static grounding tape, fence, tire fenders |
|||
|
Other specs
|
|
|||
|
Standard |
GB150-1998 Steel Pressure Vessels, Pressure Vessel Safety technical monitoring procedures, liquefied gas tanker safety inspection procedure | |||

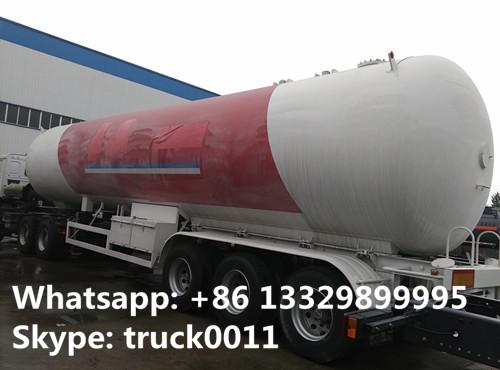

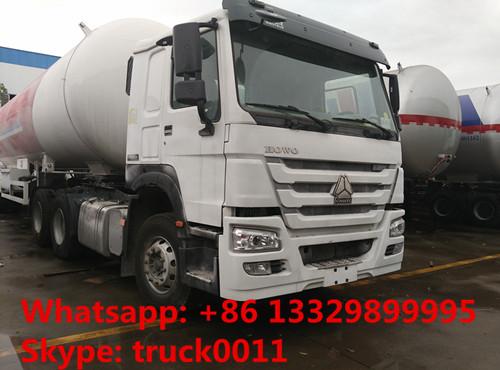

More pictures of hot sale 25tons BPW steel spring suspension axles bulk lpg gas tank trailer as below.
59520Liters cooking gas road transported tank for sale
59.52m3 propane gas trailer for sale

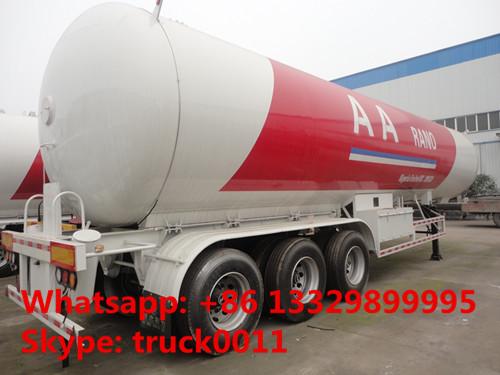

25ton FUWA 3 axles lpg gas trailer for AA RANO COMPANY in Nigeria
