best price triple axles LPG gas tank semitrailer for sale, export model lpg gas propane BPW semitrailer for sale
best price triple axles LPG gas tank semitrailer for sale, export model lpg gas propane BPW semitrailer for sale
First, the surface of anticorrosive coating of the LPG truck, adopts the leading crafts, such as derusting by sandblast treatment, flame plating,purging, etc.

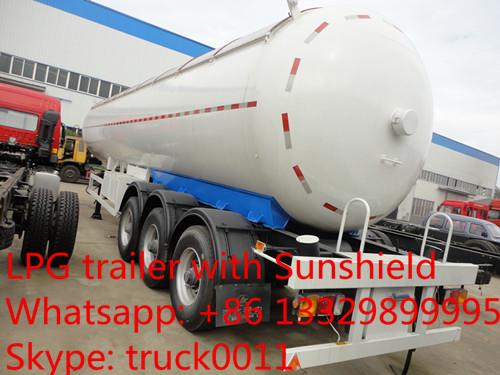

triple axles LPG tank semitrailer
Second, the customers can choose the high quality of China-made or imported safe assemblies, pumps, etc. withwell-equipped.
Third, the LPG trucks and pressure vessels, strictly adopts leading construction technology, making sure the lowest Shrinkage at the low temperature and the stability of the max dimension.
More information, please feel free to email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.
LPG truck for delivery propane
The pressure vessels and LPG trucks from Chengli are inspected strictly.
First, strict quality inspections for the pressurized componentsmaterials, overall dimension, tanker head, welding quality, installing quality, interior devices, and safety assembly, etc.
CLW LPG storage tanker
Second, commonphysical and chemical inspection of the tanker materials, such as mechanical properties and Chemical composition, etc.
Third, strict X-ray nodestructive inspectionandhelium mass spectrometric check for the welding couplings, welding, tanker head, andthe mutualgeometry of inclusions of every pressurized components, etc.
Fourth, inspect tests of thetechnical indicators, such as the sealing of the pressure vessels, the performance of pressure durablity, etc.
Fifth, the LPG tanker semi-trailer from Chengli Special Automobile Co., Ltd are line with the GB150-1998, Supervision Regulation On Safety Technology for Pressure Vessel, Regulation of Safety Supervision for Liquefied Gas Tank Car.
Chengli Special Automobile Co., Ltd as the manufacturer of LPG tank, pressure vessles in China since 2004s, it could offer double axles LPG tank, triple axles LPG tank semitrailer, LPG storage tanker, ISO tank, etc. The LPG tank semitrailers are used to transporting and storaging propane, liquid ammonia, isobutane, etc.
The main parameters of hot sale LPG gas trailer manufactured by Chengli Special Automobile Co., Ltd. as below
| list | product model | main parameters |
Pri ce |
||||||||||||
| chassis model |
overall (L*W*H) |
tank dimension (inner diameter* tank thickness* length) (mm) |
end head type and thickness | tank volume(m3) | medium | filling ratio | designed pressure | rated weight (kg) |
curb weight (kg) |
total weight (kg) |
material | ||||
| 1 | CLW5250GYQD4 | DFL1250A11 (dongfeng 6×4 LPG truck) |
10200*2500 *3450 |
2100*12* 7534 |
double oval shape δ12 | 24 | LPG | 0.42 | 1.61MPa | 10420 | 14385 | 25000 | Q345R | ||
| 2 | CLW5311GYQD4 | DFL1311A10 (dongfeng 8×4 Lpg truck) |
11700*2500 *3690 |
2350*11* 8960 |
double ball shape δ8 | 35.5 | LPG | 0.42 | 1.61MPa | 14910 | 15895 | 31000 | Q370R | ||
| 3 | CLW5310GYQC4 | CA5310GYYP63K1L6T4E4 (FAW 8×4 LPG truck) |
11700*2495 *3690 |
2350*11* 8960 |
double ball shape δ8 | 35.5 | LPG | 0.42 | 1.61MPa | 14910 | 15895 | 31000 | Q370R | ||
| 4 | CLW5240GYQ | CA5250P7K2L3T1E4 (FAW 6×4 LPG truck) |
10200*2500*3450 |
2100*12* 7534 |
double oval shape δ12 | 24 | LPG | 0.42 | 1.61MPa | 10420 | 14385 | 25000 | Q345R | ||
| 5 | CLW9409GYQ | 3 axles LPG semitrailer | 13000*2500*3977 |
2474*11* 12615 |
double oval shape δ13 | 58.5 | LPG | 0.42 | 1.61MPa | 24570 | 15430 | 40000 | Q370R | ||
| 6 |
2470*12* 12840 |
one ball and one oval shape end headδ8mm for ovalδ12 for ball | 24570 | 15430 | 40000 | Q345R | |||||||||
| 7 | CLW9400GYQA | 3 axles LPG semitrailer | 13000*2500*3990 |
2475*11.5* 12837 |
double oval δ11.5 | 59.52 | LPG | 0.42 | 1.61MPa | 25000 | 15000 | 40000 | Q370R | ||
| 8 | CLW9390GYQ | 3 axles LPG semitrailer | 12700*2500*3975 | 2450×11.5*12340 | double ovalδ11.5 | 56 | LPG | 0.42 | 1.61MPa | 23520 | 15480 | 39000 | Q370R | ||
| 9 | CLW9406GYQ | 3 axles LPG semitrailer | 12640*2490*3980 | 2450*8*12311 | double ovalδ8 | 56 | LPG | 0.49 | 0.70MPa | 27440 | 12560 | 40000 | Q345R | ||
| 10 | CLW9402GYQA | 3 axles LPG semitrailer | 13000*2500*3990 | 2450*13*12756 | double ball δ8 | 57.1 | LPG | 0.43 | 1.95MPa | 24550 | 15450 | 40000 | Q370R | ||
| 11 | CLW9310GYQ | 2 axles LPG semitrailer | 11324*2500*3730 | 2200*12*11044 | double oval shape δ12 | 40.5 | LPG | 0.42 | 1.61MPa | 17010 | 13415 | 30425 | Q345R | ||
| 12 | hot sale | 3 axlesLPG semitrailer | 12740*2480*3800 | 2300×12×12372 | double oval δ12 | 49.6 | LPG | 0.42 | 1.61MPa | 20832 | 15300 | 36132 | Q345R | t | |
| hot sale | EQ1141KJ(dongfeng 4×2 LPG truck ) | 7600*2462*3250 | 2000×10×5140 | double oval shape δ10 | 15 | LPG | 0.42 | 1.61MPa | 6300 | 8700 | 15000 | Q345R | |||
| hot sale | CA1313P7K1L11T4E FAW 8×4 LPG truck |
10625*2490*3740 | 2450×12×7769 | double oval shape δ12 | 34.5 | LPG | 0.42 | 1.61MPa | 14490 | 16510 | 31000 | Q345R | |||
| hot sale | EQ1110GLJ(dongfeng 4×2 LPG truck | 7100*2230*2810 | 1600×8×4266 | double oval shapeδ8 | 8 | LPG | 0.42 | 1.61MPa | 3360 | 7100 | 10460 | Q345R | |||
| The standard devices of the LPG tank semitrailer are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges (FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc. | |||||||||||||||
More information, please feel free to contact us.
