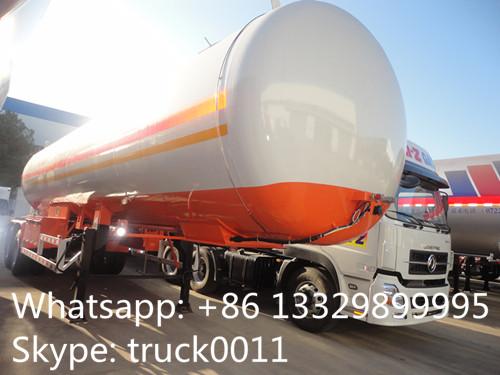

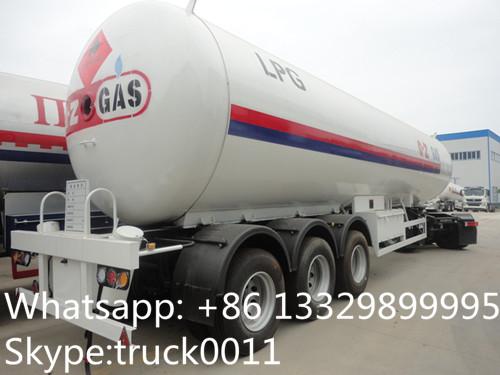

best price bulk lpg gas propane trailer for sale, factory direct sale CLW gas cooking lpg gas propane tanker semitrailer
best price bulk lpg gas propane trailer for sale, factory direct sale CLW gas cooking lpg gas propane tanker semitrailer
LPG storage tanks are kinds of the LPG tank mounted on the frame. It is the new type LPG pressure vessels of Chengli Special Automobile Co., Ltd. LPG storage tanks and LPG pressure vessels belong to the new time exchanging products, in line with the world logistics developing directions. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc.
The functional advantages of the LPG container tank trailer as below.
LPG container tanker is not only used as the storage tank device, but also LPG pressure vessel. LPG container tanker and pressure vessel can adopt the following transporting ways such as, road, rail way, by ship, by sea, etc. And the pressure vessel and LPG tanker is approved by State Bureau of Technical Supervision.
More information, please feel free to send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.
LPG tank container, pressure vessel and LPG storage tanker adopts derusting by sandblast treatment, flame plating, Puffing, etc.
The propane design pressure is 1.61Mpa, designed temperature is 50 degree, filling volume is 0.42ton/cbm, and corrosion allowance is 1mm. The tanker thickness is 11.5mm, two ellipse heads (11.5mm thick). The loading medium is LPG propane. And the tanker will be with the Flammable and explosive identification. And the LPG trailer installs aluminum alloy sun shield with slow heat transfer and fast heat dissipation.

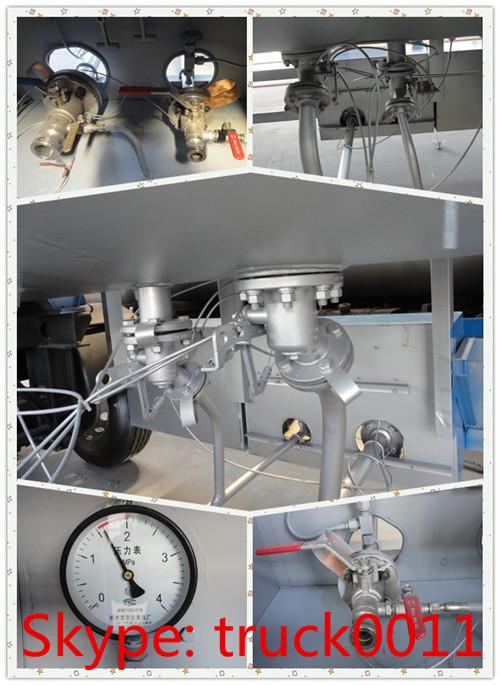

The standard devices of the 56cbm LPG tank semitrailer for propane are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, two extinguisher bottles, steel flippers, with ABS, etc.
The main parameters of lpg gas trailers manufactured by Chengli Special Automobile Co., Ltd. as below
| list | product model | main parameters |
Pri ce |
||||||||||||
| chassis model |
overall (L*W*H) |
tank dimension (inner diameter* tank thickness* length) (mm) |
end head type and thickness | tank volume(m3) | medium | filling ratio | designed pressure | rated weight (kg) |
curb weight (kg) |
total weight (kg) |
material | ||||
| 1 | CLW5250GYQD4 | DFL1250A11 (dongfeng 6×4 LPG truck) |
10200*2500 *3450 |
2100*12* 7534 |
double oval shape δ12 | 24 | LPG | 0.42 | 1.61MPa | 10420 | 14385 | 25000 | Q345R | ||
| 2 | CLW5311GYQD4 | DFL1311A10 (dongfeng 8×4 Lpg truck) |
11700*2500 *3690 |
2350*11* 8960 |
double ball shape δ8 | 35.5 | LPG | 0.42 | 1.61MPa | 14910 | 15895 | 31000 | Q370R | ||
| 3 | CLW5310GYQC4 | CA5310GYYP63K1L6T4E4 (FAW 8×4 LPG truck) |
11700*2495 *3690 |
2350*11* 8960 |
double ball shape δ8 | 35.5 | LPG | 0.42 | 1.61MPa | 14910 | 15895 | 31000 | Q370R | ||
| 4 | CLW5240GYQ | CA5250P7K2L3T1E4 (FAW 6×4 LPG truck) |
10200*2500*3450 |
2100*12* 7534 |
double oval shape δ12 | 24 | LPG | 0.42 | 1.61MPa | 10420 | 14385 | 25000 | Q345R | ||
| 5 | CLW9409GYQ | 3 axles LPG semitrailer | 13000*2500*3977 |
2474*11* 12615 |
double oval shape δ13 | 58.5 | LPG | 0.42 | 1.61MPa | 24570 | 15430 | 40000 | Q370R | ||
| 6 |
2470*12* 12840 |
one ball and one oval shape end headδ8mm for ovalδ12 for ball | 24570 | 15430 | 40000 | Q345R | |||||||||
| 7 | CLW9400GYQA | 3 axles LPG semitrailer | 13000*2500*3990 |
2475*11.5* 12837 |
double oval δ11.5 | 59.52 | LPG | 0.42 | 1.61MPa | 25000 | 15000 | 40000 | Q370R | ||
| 8 | CLW9390GYQ | 3 axles LPG semitrailer | 12700*2500*3975 | 2450×11.5*12340 | double ovalδ11.5 | 56 | LPG | 0.42 | 1.61MPa | 23520 | 15480 | 39000 | Q370R | ||
| 9 | CLW9406GYQ | 3 axles LPG semitrailer | 12640*2490*3980 | 2450*8*12311 | double ovalδ8 | 56 | LPG | 0.49 | 0.70MPa | 27440 | 12560 | 40000 | Q345R | ||
| 10 | CLW9402GYQA | 3 axles LPG semitrailer | 13000*2500*3990 | 2450*13*12756 | double ball δ8 | 57.1 | LPG | 0.43 | 1.95MPa | 24550 | 15450 | 40000 | Q370R | ||
| 11 | CLW9310GYQ | 2 axles LPG semitrailer | 11324*2500*3730 | 2200*12*11044 | double oval shape δ12 | 40.5 | LPG | 0.42 | 1.61MPa | 17010 | 13415 | 30425 | Q345R | ||
| 12 | hot sale | 3 axlesLPG semitrailer | 12740*2480*3800 | 2300×12×12372 | double oval δ12 | 49.6 | LPG | 0.42 | 1.61MPa | 20832 | 15300 | 36132 | Q345R | t | |
| hot sale | EQ1141KJ(dongfeng 4×2 LPG truck ) | 7600*2462*3250 | 2000×10×5140 | double oval shape δ10 | 15 | LPG | 0.42 | 1.61MPa | 6300 | 8700 | 15000 | Q345R | |||
| hot sale | CA1313P7K1L11T4E FAW 8×4 LPG truck |
10625*2490*3740 | 2450×12×7769 | double oval shape δ12 | 34.5 | LPG | 0.42 | 1.61MPa | 14490 | 16510 | 31000 | Q345R | |||
| hot sale | EQ1110GLJ(dongfeng 4×2 LPG truck | 7100*2230*2810 | 1600×8×4266 | double oval shapeδ8 | 8 | LPG | 0.42 | 1.61MPa | 3360 | 7100 | 10460 | Q345R | |||
| The standard devices of the LPG tank semitrailer are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges (FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc. | |||||||||||||||
ASME lpg gas tank semitrailer for sale
hot sale and best price lpg gas trailer
More information, please feel free to contact with us.
Skype: truck0011
Whatsapp/wechat: +86 13329899995
QQ: 504873236
