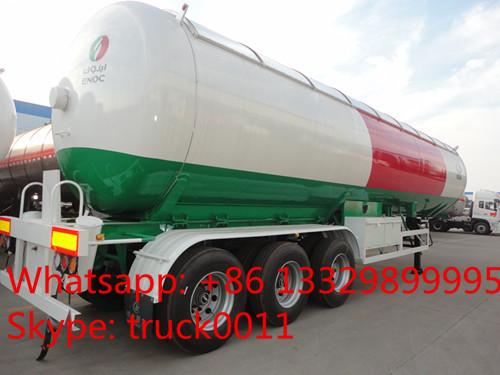

New Product Q345R/Q370R 56m3 lpg tank trailer with sun shield for sale, CLW brand BPW 3 axles bullet lpg gas trailer
bullet type 56m3 bulk lpg gas trailer for sale, factory direct sale 56,000Liters propan gas tank trailer, hot sale ASME standard road transported lpg gas tank
Chengli Special Automobile Co., Ltd. is the leading manufacturer and supplier of LPG gas semitrailer and LPG gas storage tank, etc. And the LPG gas semitrailer tank volume is from 40000L to 60000L. And the loading medium can be propane, liquid ammonia, propene, dimethyl , isobutane, etc. More information, please feel free to contact with us.
Send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Our factory passed the international quality in ISO9001:2008 system attestation completely. Products passed 3C attestation.CLW, a well-known brand, believed in China.
|
Item |
Unit |
Parameters |
||
|
Product name |
|
LPG Tank Semi-trailer(CLW9390GYQ) |
||
|
Fact Volume |
M3 |
56 |
||
|
Loading capacity |
kg |
23520 |
||
|
GVW |
39000 |
|||
|
Mass in working order |
15480 |
|||
|
Overall dimensions |
mm |
12700×2500×3975 |
||
|
Number of axles |
3 |
|||
|
Wheel base |
6865+1310+1310 |
|||
|
Track base |
Front |
- |
||
|
Rear |
1840 |
|||
|
F/R overhang |
mm |
-/1550 |
||
|
The quality of the maximum allowable bearing saddle |
kg |
16000 |
||
|
Tire specification |
|
12R22.5 12PR |
||
|
Special configuration |
Tank material |
Q345R/Q370R |
||
|
Standard configuration |
13 tons BPW axle,Single fluid, double side loading and unloading, double valve box, double toolbox, relief valve, thermometer, pressure gauge, emergency shut-off valve, JOST leg, JOST drawing pin, fire bottle, static adhesive tape, plastic fender. |
|||
|
Others |
Filling medium: LPG; Design pressure 1.61 Mpa, the design temperature of 50°C, filling ratio: 0.42 t/m3, corrosion allowance: 1 mm; The shape of tank size: 12340×2473 mm |
|||
|
Manufacturing standards |
GB150 "pressure vessel" and “the transportable pressure vessel safety technology supervision regulation”. |
|||
|
FOB SHANGHAI |
USD |
|||
Function characteristic of liquefied gas truck of chengli factory
The anti corrosion coating of liquefied gas semi-trailer adopt the following process:sandblast,spray painting,purging and so on
There are domestic or imported safety accessories with high quality ,its matching is complete
We adopt scientific advanced construction process strictly,ensure that the products are with the lowest shrinkage and the highest dimensional stability at low temperature
We inspect the quality of product strictly,ensure that A and Btype of welding seam pass the examination of level two radiographic test C and D type of welding seam pass the examination of
Level one radiographic test .
Price:FOB/DAF/CNF/CIF
Payment term:T/T, prepay 30-50% as subscription, balance will be paid after the clients inspect the trucks in our factory before delivery.
high quality and best price CLW brand road transported propane gas tank for sale

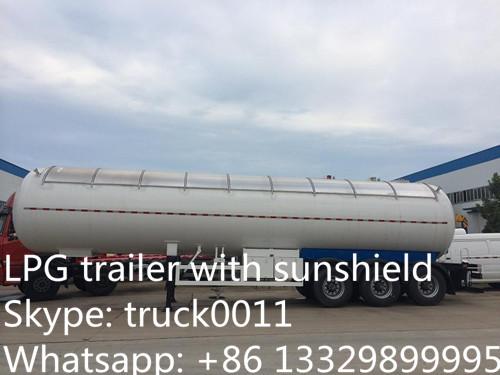

lpg gas trailer with sunshield for sale
