factory direct sale 2 axles 17ton lpg gas tank semitrailer, 17MT ASME standard cooking gas tank semitrailer for sale
factory direct sale 2 axles 17ton lpg gas tank semitrailer, 17MT ASME standard cooking gas tank semitrailer for sale
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
The data above is for your reference, we reserve the right of technical alteration/change for better improvement without prior notice. The detail is line with the contract.
The LPG tanker semi-trailer manufactured by Chengli Special Automobile Co., Ltd. is line with the GB150-1998
More information, please feel free to contact Ms. Anita. Email: truck0011@163.com; whatsapp/wechat: +86 13329899995.
The main technical parameters of 17metric tons bulk lpg gas tank semitrailer as below
|
Dimension |
||
|
Tare Weight |
13415KGS |
|
|
Pay Load |
17010KGS |
|
|
Overall Length |
11324mm |
|
|
Overall Width |
2500mm |
|
|
Photo for reference, finial product can be made according to exact requirements |
||
|
Tank |
||
|
Transporting Media |
Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane |
|
|
Shape |
Round Shape |
|
|
Total Volume(m3) |
40.5CBM |
|
|
Tanker Body Steel Sheet |
Q235A/14mm |
|
|
End plate |
Q235A14mm, by punching |
|
|
Parts for Tank |
||
|
Manhole cover |
3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve |
|
|
Unloading valve |
2-3 sets of DN80 fixed at button of Tank |
|
|
Pipeline at button of tank |
4”seamless steel tube/Q235 |
|
|
Labeling system |
Oil Type Indication |
|
|
Anti-static electricity system |
pulling, wire carrier, sheet copper (6 sheet-standard layout) |
|
|
Other Parts |
||
|
Ladder |
1 unit at front of Tank |
|
|
Guard on top of Tank |
Zinc galvanized –guard-net |
|
|
Oil hose box |
Circular single hole tube, 1 unit on each side |
|
|
Oil hose |
2 unit, 3” x 6m size in black rubber |
|
|
Side guard |
cross bar-structure |
|
|
Rear button guard |
Fixed type |
|
|
Work tank deck |
Box type |
|
|
Fire extinguisher box |
2 unit at the back of each side |
|
|
Mud guard |
Steel structure in trapezoid form |
|
|
Lights and wire |
24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp |
|
|
Chassis |
||
|
Main Beams |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes |
|
|
Axle |
3 axle |
|
|
BPW brand FUWA brand |
||
|
Landing Gear |
JOST Two-speed, manual operating, heavy duty landing gear |
|
|
King Pin |
JOST 2”standard bolt-in king pin |
|
|
Suspension |
German design mechanical suspension |
|
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
|
Wheel rim |
8.25R22.5 wheel rim |
|
|
Tire |
11R22.5 tubeless tire with one spare tire |
|
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|

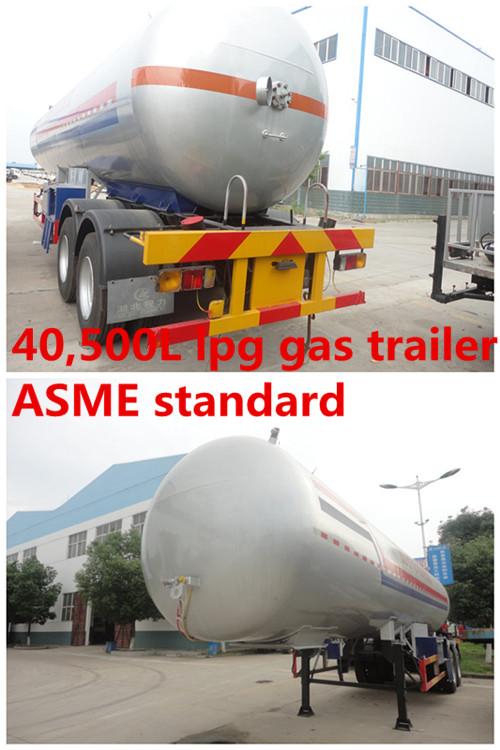

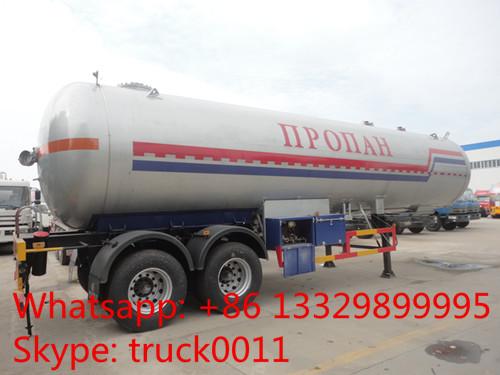

More pictures of hot sale 2 axles 17tons bulk propane gas tank trailer as below .
best price 17tons bulk propane gas tank trailer for sale
CLW brand 2 axles BPW 40500L lpg gas tank trailer for sale
More information, please feel free to contact Ms. Anita.
Whatsapp/wechat: +86 13329899995
QQ: 504873236
Skype: truck0011
