CLW brand 25ton bulk lpg gas propane trailer for sale,best 3 axles BPW/FUWA gas cooking propane tank trailer for sale
25ton bulk lpg gas propane trailer for sale, 3 axles BPW gas cooking propane tank trailer, biggest 59.52cbm lpg gas trailer for sale
CLW brand Liquefied gas tanker is a pressure vessel, "Pressure Vessel Safety Technology Supervision" promulgated by the State Bureau of Technical Supervision, "Liquefied Gas Tanker Safety Supervision" and GB150 "steel pressure vessel", the use of lightweight design, manufacture of special vehicles. With a reasonable structure, safe, reliable, easy operation, easy maintenance.
Liquefied gas tanker surface corrosion coatings are used sand blasting, painting, purging and other advanced technology.
A liquefied gas tanker truck belonging to a type of gas that a single shipment of a professional body material is strictly prohibited mixed shipment.
Take rigorous scientific construction advanced technology, ensuring a minimum of shrinkage, the highest dimensional stability at low temperatures.
Strict quality inspection: A, Class B 100% weld-ray detection, II level qualified
C, D welds 100% magnetic particle inspection, qualified level.
More information, please send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
59.52cbm lpg gas trailer
simple drawing pictures of hot sale 59.52m3 road transproted propane gas storgae tank for sale
|
Loading medium |
Propane |
|
Medium characteristic |
flammable and combustible |
Safety vavle 2*DN80 |
|
Curb mass(kg) |
15000 |
Tanker |
Designed pressure(MPa) |
1.61 |
Designed standard 1,GB150-2011 <<Pressure Vessel>> 2,GB/T19905-2005 << Regulation of Safety Supervision for Liquefied Gas Tank Car>> |
|
Loading mass(kg) |
25000 |
Filling ratio(kg/m3) |
420 |
||
|
Total mass(kg) |
40000 |
Main material |
Q370R |
||
|
Wheelbase(mm) |
7230+1310+1310 |
Cylinder thickness(mm) |
11.43 |
||
|
Front/rear suspension(mm) |
-/1540 |
Head thickness(mm) |
11.41 |
Chengli Special Automobile Co., Ltd. |
|
|
Overall dimension(L*W*H) |
13000*2500*3990 |
Tanker dimension(inner diameter*thickness*length)(mm) |
2475*11.5*12826.5 |
The standard devices of the 40.5cbm LPG tanker semitrailer for propane:
single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 2 axles 13ton FUHUA bridge, 8 sets 12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, oe extinguisher bottle, steel flippers, with ABS, etc.

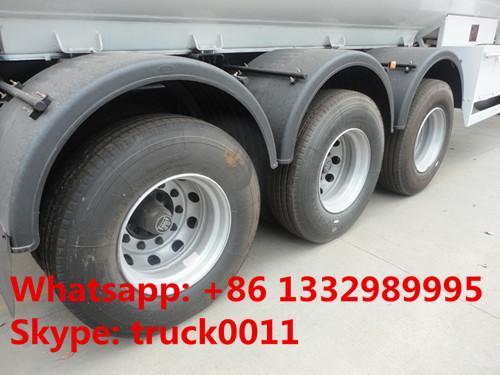

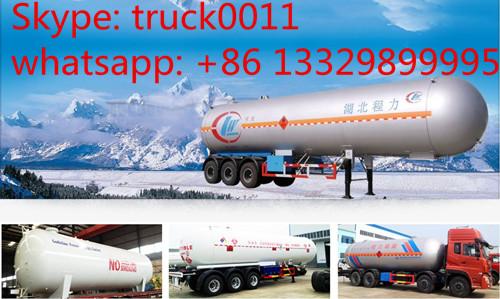

More pictures of hot sale 3 axles BPW/FUWA lpg gas trailer as below.
hot sale lpg gas tank trailer
high quality and best price propane gas tank transported semitrailer for sale
Chengli Special Automobile Co., Ltd. could supply LPG gas trailers at home and all over the world. We can also supply ASME LPG gas truck, LPG gas trailer, LPG gas storage tank, etc.
Our company is specialised in produce LPG trailer for several years,we can produce the size of semi trailer as coustoms require.if you want to know more about our cargo semi trailer please do not hestiate to contact me.any questions about semi trailer will be highly apperciated.
We can provide other tanker trailers, like 2 axles or 3 axles, carbon steel, aluminum alloy, stainless steel material liquid tanker trailer, bulk cement tanker trailer, full trailer, tank container etc.
