2020s hot sale CLW brand 25metric tons propane gas tank semitrailer, road transported lpg gas storage tank for sale
2020s hot sale CLW brand 25metric tons propane gas tank semitrailer, road transported lpg gas storage tank for sale
“CLW” brand LPG tanker trailer manufactured by Chengli Special Automobile Co., Ltd. adopts scientific leading treatments, assuring the lowest Shrinkage and highest dimension stability at the low temperature. The advantages of the LPG storage tanker are low-temperature storage, easy transporting, safe and reliable, easy maintain, etc. The LPG storage tankers are suitable for storing LPG, liquid ammonia, carbon disulfide, epoxyethane, gasoline, butane, propane, propene, etc.
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995
main technical parameters of hot sale 59.52cbm lpg gas trailer as below
|
Loading medium |
Propane |
|
Medium characteristic |
flammable and combustible |
Safety vavle |
|
Curb mass(kg) |
15000 |
Tanker |
Designed pressure(MPa) |
1.61 |
Designed standard |
|
Loading mass(kg) |
25000 |
Filling ratio(kg/m3) |
420 |
||
|
Total mass(kg) |
40000 |
Main material |
Q370R |
||
|
Wheelbase(mm) |
7230+1310+1310 |
Cylinder thickness(mm) |
11.43 |
||
|
Front/rear suspension(mm) |
-/1540 |
Head thickness(mm) |
11.41 |
Chengli Special Automobile Co., Ltd. |
|
|
Overall dimension(L*W*H) |
13000*2500*3990 |
Tanker dimension(inner diameter*thickness*length)(mm) |
2475*11.5*12826.5 |
59.52cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
More pictures of hot sale CLW brand road transported lpg gas storage tank as below
Flow chart of operating system for lpg gas trailer

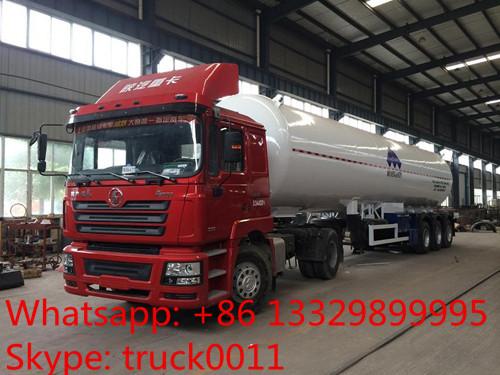

25tons bulk road transported lpg gas tank for sale

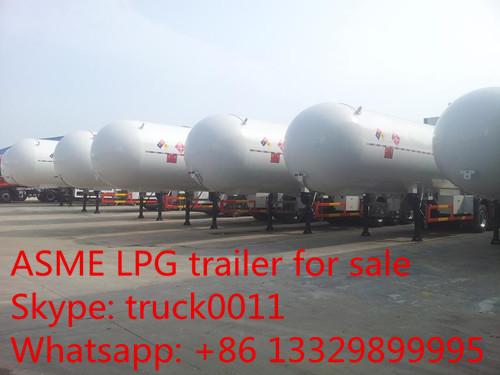

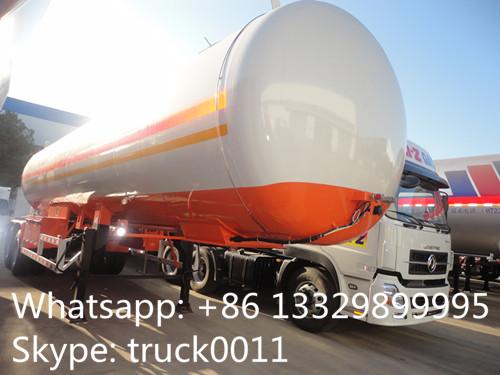

25tons propane gas tank semitrailer for sale
