Hot sale 20,000kgs road transported bullet lpg gas tank, high quality and best price 20tons propane gas tank semitrailer
Hot sale 20,000kgs road transported bullet lpg gas tank, high quality and best price 20tons propane gas tank semitrailer for sale
Chengli Special Automobile Co., Ltd. is one of the leading manufacturer of LPG tanker truck, LPG semitrailers, pressure vessels in China since 2004s. With many years' experience in manufacturing and selling, Chengli Special Automobile Co., could offer LPG propane 3 axles semitrailer, propane 2 axles semitrailer, 3 axles isotane semitrailer, propene 3 axles semitrailer,methoxymethane 3 axles semitrailer, liquid ammonia 3 axles semitrailer, propane tank truck, liquid ammonia truck, methoxymethane truck, pressure vessels, etc.
As the leading manufacturer of pressure vessles, LPG truck, LPG semitrailers, in China. Chengli has exported LPG tank truck, LPG semitrailers, pressure vessles, etc. to ny countries.
And recently, one of our Ethiopia customer place an order of 10 units 3 axles 58cbm propane LPG semitrailers. And this is not the first order, before this they had a trial order of 5 units. And they are satisfied with them. Then placing 10 units LPG semitrailers.
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
CLW 20MT propane cooking gas trailer for sale

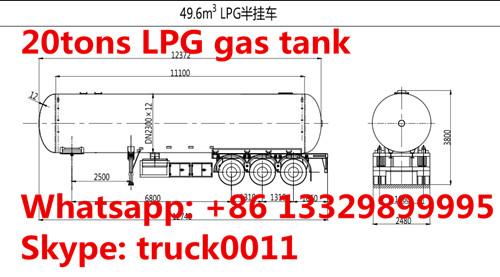

main technical parameters of hot sale 20tons propane trailer as below
|
Loading medium |
LPG gas |
Medium characteristic |
flammable and combustible |
Safety valve |
2*DN80 |
|
|
Curb mass (kg) |
15,300 |
Tanker |
Designed pressure(Mpa) |
1.61MPa |
Designed standard |
|
|
Loading mass(kg) |
20,832 |
Filling ratio(kg/cbm) |
420 |
|||
|
Max total mass (kg) |
36,132 |
Tanker material |
Q345R |
|||
|
Wheelbase(mm) |
6800+1310+1310 |
Tanker designed thickness(mm) |
11.05 |
|||
|
Front/rear suspension(mm) |
-/1650 |
Head designed thickness(mm) |
11.03 |
|||
|
Overall dimension(L*W*H)(mm) |
12740×2480×3800 |
Tanker body dimension(L*W*H)(mm) |
2300*12*12,372 |
Chengli Special Automobile Co., Ltd. |
||
49.6cbm LPG tanker semitrailer for LPG GAS adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
More pictures of CLW 20tons lpg gas trailer as below.

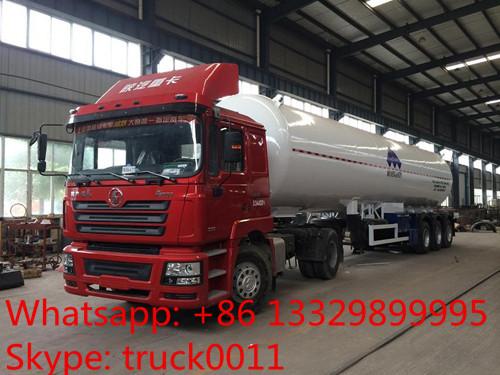

lpg gas trailer with tractor head
CLW Brand 20tons lpg gas tank trailer for sale
high quality and best price Propane gas tank semitrailer for sale
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
