ASME standard 57.1m3 CH2 propene gas tank trailer, 24.5ton propylene CH2 semitrailer propylene tank trailer for sale

ASME standard 57.1m3 CH2 propene gas tank trailer, 24.5ton propylene CH2 semitrailer propylene tank trailer for sale

Chengli Special Automobile Co., Ltd. is one of the biggest LPG trailers manufacture in Suizhou city ,HuBei province , China .

We can produce all kinds LPG gas pressure vessels , such as LPG trailer , LPG truck , LPG storage tank , lpg gas dispenser truck, skid lpg gas filling station, LPG pump .LPG valves .Welcome you visit my factory and inspect our products.

More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.

Product Description of CLW brand lpg gas pressure vessels as below

Products name

ASME 57.1m3 CH2 propene trailer,propylene CH2 semitrailer propylene tank trailer CH2 propylene tank semitrailer

Products information

Storage Vessel Introduction:

1) Types: LPG storage tank, ammonia storage tank ,dimethy l storage tank , air storage tank, liquid storage tank, horizontal storage tank, spherical tank, carbon steel storage tank,low-alloy steel storage tank, stainless steel storage tank and so on.

2) Materials: carbon steel Q345R , low-alloy steel, SS304 stainless steel and non-ferrous metals: titanium, nickel, copper, aluminum, molybdenum, zinc, cobalt etc and their alloy materials.

3) Pressure: 1.77Mpa ,1.15Mpa , 2.05Mpa low-pressure, medium-pressure and high-pressure.

4) Temperature: +- 50 low-temperature heat exchanger, medium-temperature heat excahnger but also high-temperature heat exchanger.

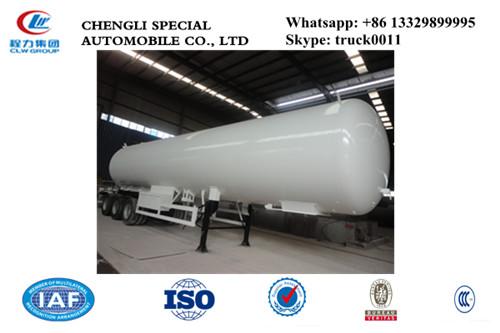

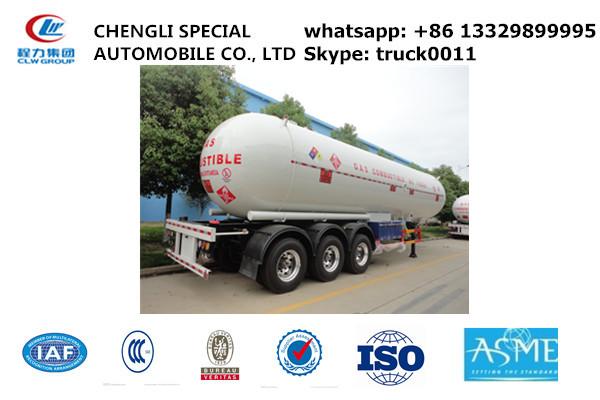

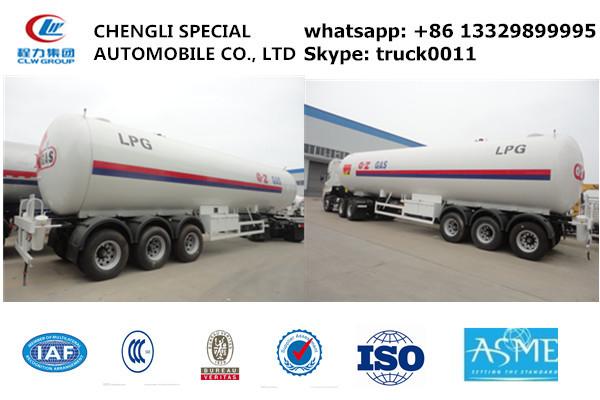

More LPG trailer showing here

Material: low-alloy steel Q345R conbon steel 09G2S (P355NL), 12mm thickness;

Tank:57.1m3;

Trailer size: 13000x2500x3990mm

Trailer wheelbase :6710+1310+1310mm

Tanker size:2470x13x12756mm

Test pressure:2,3 MPa test pressure;

Work pressure:1,95MPa design pressure .

Suspension:

• 3 axles, pneumatic suspension

• axles load capacity 3x 10 000 kg, one tire for wheel;

• front lifting axle;

• drum brakes 420x180mm;

Valves:

• pneumatic bottom valve, DN80;

• pneumatic bottom valve, DN50;

• pneumatic bottom valve , DN50;

• unloading ball valves , DN80;

• unloading ball valves , DN40;

• unloading ball valves , DN40;

Safety valves :3".

Landing leg:Telescopic, double-speed, 24 ton of static load BPW (Germany)

King pin:

Brake system:Wabco (Germany);

• ABS - 2S/2M;

• EBS;

• parking brake drive from pneumatic accumulators on 2 axles;

Wheels:

• tubeless – 6 pc + 1 spare,

• tires dimension 385/65 R22,5 – GT-Radial

Electric equipment:

• ASME performance, 24V, Aspock (Austria);

• rear multifunctional lamps – 2 pc;

• side overall lamps with reflectors – 8 pc;

• backlight of numberplate – 2 pc;

• front overall lamps with deflectors – 2 pc;

• backlight of technological box – 1 pc;

Painting:

• grit blasting, grounding;

• white painting;

• logotypes of the Customer;

Equipment:

• fire extinguisher 6kg in plastic case – 2 pc;

• grounding circuit (coil with cable 15m, 4 grounding points on the body;

• winch of spare wheel – 1 pc;

• separate plastic wings – 6 pc;

• underride guard plastic – 2 pc;

• rear protective device with mudguard;

• mudguards on rear wings – 2 pc;

• tool box – 1 pc;
