ASME standard lpg semi trailer 571000L propene tank trailer PL tri-axle trailer proplene semi trailer for sale
ASME standard lpg semi trailer 571000L propene tank trailer PL tri-axle trailer proplene semi trailer for sale
Specifications of lpg gas trailer manufactured by Chengli Special Automobile Co., Ltd. as below
1. propene Semi trailer propene trailer propene tank trailer propene tanker trailer
2.propenestorage tank
3.propeneThree Axle Semi Trailer
4.40 CBM, 45CBM. 50CBM, 60CBMpropeneSemi Trailer
5. Certification: ISO9001 CCC SGS ASME
propene semitrailer simple introduction as below
1)Designing pressure: 1.95MPa Designing temperature: -20C-50C
2)The various typespropenetanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating ofpropenetanker adopt the following process, sandblast, spray painting, purging and so on.
More information, please feel free to contact with Ms. Anita Deng. Send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Main technical parameters of hot sale 57.1cubic meters propene gas tank trailer as below
|
Item |
Unit |
Parameter |
|||
|
Product name |
|
ASME 2 axle 3 axle 4 axle trailer 40cbm 45cbm 50cbm 56cbm 60cbm LPG Trailer |
|||
|
Practical capacity |
M3 |
57.1 |
|||
|
Gross weight |
kg |
40000 |
|||
|
Curb weight |
15450 |
||||
|
rated loading capacity |
24550 |
||||
|
Overall dimension |
mm |
13000*2500*3990 |
|||
|
Axle |
3 |
||||
|
Wheelbase |
6710+1310+1310 |
||||
|
Tread |
Front tread |
- |
|||
|
Rear tread |
1840/1840/1840 |
||||
|
Front/rear suspension |
mm |
-/1745 |
|||
|
Leaf spring |
|
-7/7/7 |
|||
|
Fifth wheel max loading |
kg |
16000 |
|||
|
Tyre specification |
|
12.00-20 |
|||
|
Exclusive configuration |
Tank material |
Q345R |
|||
|
Standard configuration |
13T BPWor FUWAaxle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield. |
||||
|
Other |
Filling Medium:propene:design pressure 1.95Mpa, design temperature 50°C,filling ratio:0.43t/m3, corrosion allowance:1mm:dimension of tank:12756*13*2450mm . |
||||
|
Standard configuration |
GB150-1998,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck. |
||||

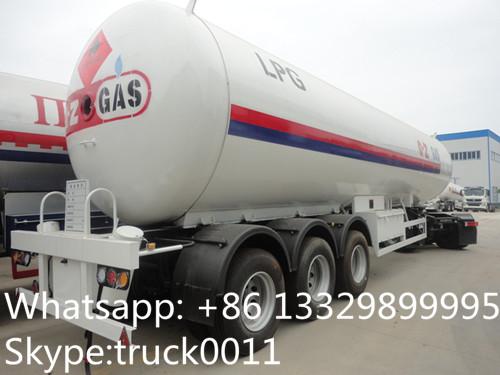

More pictures of hot sale 57.1m3 propene gas tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below
best price propene gas tank trailer for sale
More information, please feel free to contact Ms. Anita.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
