CLW brand double BPW axles 40.5cubic road transported lpg gas tank for sale, 17tons lpg gas tank trailer for sale
CLW brand double BPW axles 40.5cubic road transported lpg gas tank for sale, 17tons lpg gas tank trailer for sale
Double axle lpg road tanker trailer 40.5cbm Propane tanker trailer 17ton lpg Road tanker trailer for sale, double BPW axles propane gas trailer for sale, lpg gas pressure vessels with competitive price and high quality, ASME passed lpg gas trailer for sale
Specifications---
1. LPG Semi trailer LPG trailer LPG tank trailer LPG tanker lpg Road tanker
2. LPG storage tank lpg Road tanker
3. LPG Three Axle Semi Trailer lpg Road tanker
4.40 CBM, 45CBM. 50CBM,54cbm 56cbm 60CBM propane Semi Trailer lpg Road tanker
5. Certification: ISO9001 CCC, ASME lpg Road tanker.
More information, please feel free to send email to truck0011@163.com or talk to Anita by whatsapp/wechat: +86 13329899995.
lpg Road tanker ---
1)Designing pressure: 1.61MPa Designing temperature: -20C-50C
2)The various types LPG tanker is researched and manufactured by stress analysis design and has obvious advantage of large capacity. Light weight and high efficiency.
3)We inspect the quality of product strictly, ensure that A and B type of welding seam pass the examination of level two radiographic test, C and D type of welding seam pass the examination of level one radiographic test.
4)There are domestic or imported safety accessories with high quality, its matching is complete.
5)The anticorrosion coating of LPG tanker adopt the following process, sandblast, spray painting, purging and so on
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test. The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection.
Seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
A, B Class 100% ray weld inspection, II level qualified
C, D Class welds 100% magnetic particle inspection, I level qualified
Parameter of 17tons bulk LPG Gas Road tanker
|
40.5 CBM LPG Trailer Parameter |
|
|
Tanker Essential Information |
|
|
Volume of Tank (cbm) |
40.5 |
|
Overall Dimensions(L*W*H)(mm) |
11324*2500*3730 |
|
Tank Dimensions(Inner Diameter*thickness*Length) |
2200*12*11044 |
|
Estimated Tare Weight (kg) |
13415 |
|
Payload(kg) |
17010 |
|
Total Weight(kg) |
30425 |
|
Wheelbase(mm) |
6720+1320 |
|
Shell of Tanker |
|
|
Products |
Liquefied Petroleum Gas (propane) |
|
Fluid Property |
Flammable |
|
Design Temperature(℃) |
50℃ |
|
Design Pressure(MPa) |
1.61 |
|
Corrosion Allowance(mm) |
1.00 |
|
Weld Joint Factor |
1 |
|
Major Materials of Bearing Pressure |
Tanker body:Q345,12mm, |
|
End plate:Q345R,12mm |
|
|
Main beam:16Mn |
|
|
Detection |
|
|
Heat Treatment |
Overall treatment in a furnace,600℃ to 640 ℃ |
|
Flaw Detection |
100% Flaw detection |
|
Test Pressure(MPa) |
1.61 |
|
Hydraulic Test(MPa) |
2.1 |
|
Magnaflux Inspection |
Aim at welding place that flaw detection can not cover |
|
Manhole (As Customer’s Requirement) |
|
|
Quantity |
1;on top |
|
Safety Valve(As Customer’s Requirement) |
|
|
Quantity |
1 |
|
Location |
On the top of tanker |
|
Size |
DN100 or As Customer’s Requirement |
|
Level Gauge 3*13T Fuwa |
|
|
Type |
Float-operated |
|
Location |
At the rear of the end plate |
|
Running System |
|
|
Axles |
3*13T Fuwa or BPW |
|
Tire |
12R22.5 Tubeless tire ,13 with one spare tire |
|
Landing leg |
JOST |
|
King Pin |
#50 or #90 |
|
Control System |
|
|
Emergency Cut-off Valves |
2 |
|
Ball Valve |
2 |
|
Liquid Gauge |
1 |
|
Pressure Indicating Thermometer |
1 |
|
Pressure Gage |
1 |
|
Accessories |
|
|
Small Tool Box |
2 |
|
Wheel Carrier |
2 |
|
Fire Extinguisher |
2 |
|
Fender |
6 |
|
Paint |
As Customer’s Requirement |
|
Standard: Pressure vessels, Supervision Regulation on Safety Technology for Stationary Pressure Vessels |
|

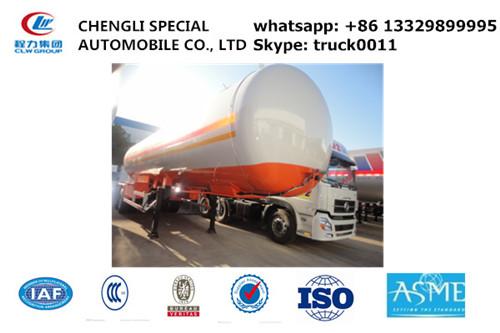

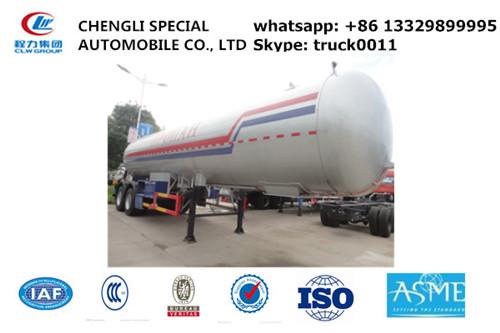

More pictures of doubles axle lpg trailer as below.
