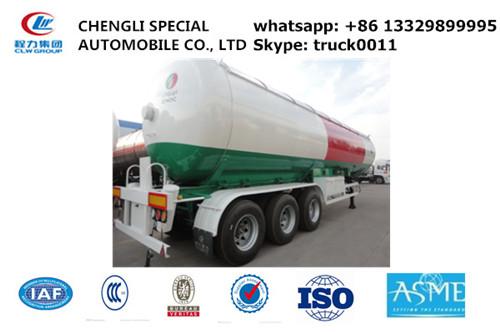

ASME lpg gas trailer with sun-shield for sale, factory direct sale cheapest propane gas trailer with sunshield cover
lpg gas trailer with sun-shield for sale, factory direct sale cheapest customized propane gas trailer with sunshield cover for sale
CLW functional characteristics of liquefied petroleum gas tank:
1, pressure components of the product materials, dimensions and weld quality, operation quality, installation quality,safety devices and accessories within the strict qualification
2, conventional tank materials on physical and chemical tests such as: mechanical properties and chemical composition.Their welded joints, weld, tank head, the pressure of the geometric location of each component through rigorous X-ray non- destructive testing and magnetic particle testing inspection.
3, seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
4, A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle inspection, I level qualified.
More information, please send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995
main technical parameters of the lpg gas tank trailer manufactured by Chengli Special Automobile Co., Ltd. as below.
|
Dimension |
||
|
Tare Weight |
15000KGS |
|
|
Pay Load |
25000KGS |
|
|
Overall Length |
13000mm |
|
|
Overall Width |
2500mm |
|
|
Photo for reference, finial product can be made according to exact requirements |
||
|
Tank |
||
|
Transporting Media |
Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane |
|
|
Shape |
Round Shape |
|
|
Total Volume(m3) |
59.52CBM |
|
|
Tanker Body Steel Sheet |
Q235A/14mm |
|
|
End plate |
Q235A14mm, by punching |
|
|
Parts for Tank |
||
|
Manhole cover |
3 sets of 500mm/Q235 manhole fixed on top of Tank, with breather valve |
|
|
Unloading valve |
2-3 sets of DN80 fixed at button of Tank |
|
|
Pipeline at button of tank |
4”seamless steel tube/Q235 |
|
|
Labeling system |
Oil Type Indication |
|
|
Anti-static electricity system |
pulling, wire carrier, sheet copper (6 sheet-standard layout) |
|
|
Other Parts |
||
|
Ladder |
1 unit at front of Tank |
|
|
Guard on top of Tank |
Zinc galvanized –guard-net |
|
|
Oil hose box |
Circular single hole tube, 1 unit on each side |
|
|
Oil hose |
2 unit, 3” x 6m size in black rubber |
|
|
Side guard |
cross bar-structure |
|
|
Rear button guard |
Fixed type |
|
|
Work tank deck |
Box type |
|
|
Fire extinguisher box |
2 unit at the back of each side |
|
|
Mud guard |
Steel structure in trapezoid form |
|
|
Lights and wire |
24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp |
|
|
Chassis |
||
|
Main Beams |
Heavy duty and extra durability designed; Opting for high tensile steel Q345B,welded by automatic Submerged-Arc processes |
|
|
Axle |
3 axle |
|
|
BPW brand FUWA brand |
||
|
Landing Gear |
JOST Two-speed, manual operating, heavy duty landing gear |
|
|
King Pin |
JOST 2”standard bolt-in king pin |
|
|
Suspension |
German design mechanical suspension |
|
|
Pneumatic Braking System |
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks. |
|
|
Wheel rim |
8.25R22.5 wheel rim |
|
|
Tire |
11R22.5 tubeless tire with one spare tire |
|
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
More pictures of hot sale ASME lpg gas trailer as below.

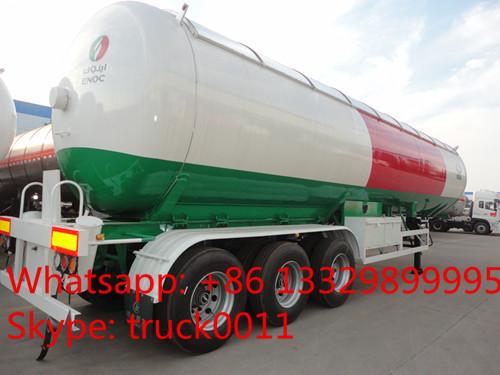

hot sale lpg gas trailer with sunshield for sale

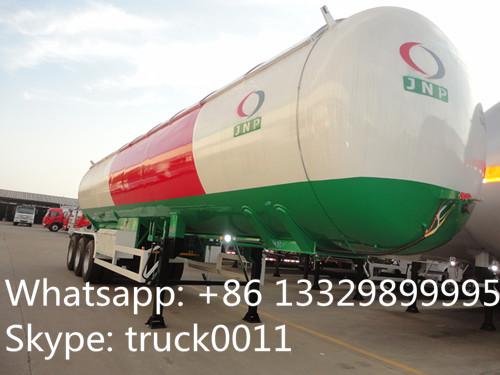

56,000Liters lpg gas trailer with sunshield
More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/wechat: +86 13329899995
Skype: truck0011
QQ: 504873236
