CLW brand best price lpg gas trailer with sunshield for sale, hot sale lpg gas tank trailer for Propylene
CLW brand best price lpg gas trailer with sunshield for sale, hot sale lpg gas tank trailer for Propylene
LPG Trailer with Insulation layer is also called LPG Semi -trailer truck , LPG semitrailer transport truck,is widely used in transporting kinds of Liquefied petroleum gas,such as propane, isobutane, propylene, dimethyl , ammonia, etc. This seimtrailer with Insulation layer can load 23.5 ton Propane, suitable for using in Equatorial ,etc high temperature regions, use more safely and reliably.
Production of lpg propane transport semi-trailers:
1 10 years professional technology
2 Whole process quality control
3 Loading Propane 56m3, 23.52ton
4 Use safely and reliably
5 With Insulation layer, suitable for using in Equatorial ,etc high temperature regions.
More information, please feel free to send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995
Specifications of lpg propane transport semi-trailers manufactured by Chengli Special Automobile Co., Ltd. as below.
|
vehicle |
Vehicle Type |
Propylene Semi-trailer |
|
Vehicle Name |
Liquefied gas semi-trailer |
|
|
Overall dimension |
13000*2500*3990 |
|
|
Actual Capacity |
59.52M3 |
|
|
Curb weight |
15000 |
|
|
Real capcity |
25000Kg |
|
|
Axle |
Frong axle:15390Kg Rear axle:23040Kg |
|
|
rear overhang |
1450 |
|
|
departure angle |
-/26 |
|
|
axles load |
24000(three axles) |
|
|
wheel base |
72301310+1310 |
|
|
Number of tires |
12 |
|
|
tire specification |
12R22.5 |
|
|
capacity |
59.52M3 |
|
|
heat treatment |
Whole body |
|
|
tank dimension |
2475*11.5*12837mm |
|
|
Tank thickness |
10mm |
|
|
tank material |
Q70R |
|
|
designed pressure |
2.66Mpa |
|
|
Special function |
Actual capacity is 59.52M3,BPW axle 13T,safety valve ,JOST outrigger ,Liquid Indicator ,pressure indicator,termperature indicator,Emergeny Cut-off Valves ,fire bottle ,antistatic earthing tape ,protective guard ,tire security board , |

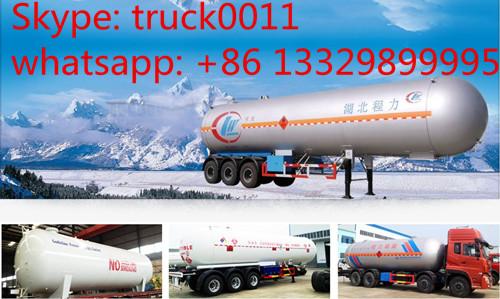

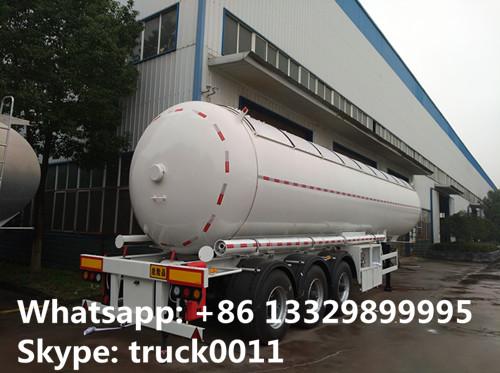

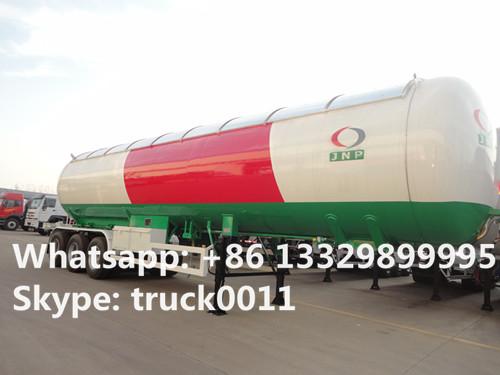

More pictures of hot sale lpg gas trailer as below.
hot sale lpg gas trailer

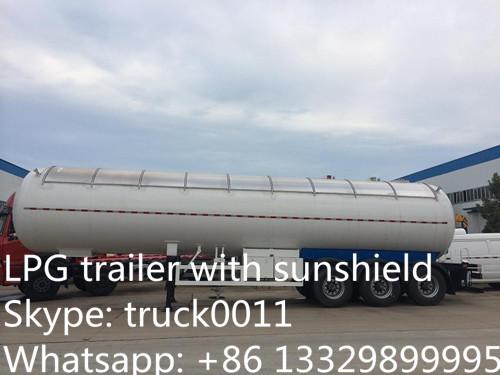

lpg gas trailer with sunshield cover for sale
best price 25tons bulk lpg gas trailer with sunshield for sale
high quality and best price CLW Brand lpg gas tank trailer for sale
LPG Tanker Truck (liquefied gas tanker), also known as LPG trucks, LGP transporting tanker and semi-trailer. It is used to transport propane, propylene, dimethyl , ammonia, acetaldehyde and other gases in the Special Purpose Vehicle. CLW brand Liquefied gas tank is a pressure vessel, "Pressure Vessel Safety Technology Supervision" promulgated by the State Bureau of Technical Supervision, "Liquefied Gas Tanker Safety Supervision" and GB150 "steel pressure vessel", the use of lightweight design, manufacture of special vehicles. With a reasonable structure, safe, reliable, easy operation, easy maintenance.
From the use of liquefied gas tankers, manufacturing and supervisory inspection is divided into the following categories:
(1) according to the loading material can be divided into: Propane tank truck, propylene tank truck , dimethyl tank truck, ammonia tank truck , acetaldehyde tank truck, etc.
(2) according to the process and the role of loading capacity can be divided into: LPG vehicles, liquefied gas transport semi-trailer, liquefied gas storage tanks. the liquefied gas storage tanks can be designed for two kinds there`s underground storage tanks and ground storage tanks.
