factory price 25.1 metric tons lpg gas propene trailer for sale, hot sale road transported propene tank semitrailer
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton BPW bridges(FUHUA bridge), 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
The data above is for your reference, we reserve the right of technical alteration/change for better improvement without prior notice. The detail is line with the contract.
The loading capacity of the lpg gas trailer for isobutane is 27.44MT, the lpg gas trailer mass of 12,560kgs, adopting high quality Q345R material.
More information, please feel free to send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.
main technical parameters of hot sale propane gas tank semitrailer as below
|
Main parameters |
|||
|
Product name |
Lpg gas trailer for propene
|
Product model |
CLW9402GYQB propene trailer for sale |
|
Total mass(Kg) |
40000 |
Tank volume(m3) |
58.35 |
|
Rated mass(Kg) |
25090 |
Overall dimension(mm) |
13000×2500×3990 |
|
Curb mass(Kg) |
14910 |
Cargo body dimension(mm) |
×× |
|
Approach/departure angle(°) |
-/19 |
Front/rear suspension (mm) |
-/1400 |
|
Axle nos. |
3 |
Wheelbase(mm) |
7350+1320+1320 |
|
Axle load(Kg) |
-/24000(triple axles) |
Max speed(Km/h) |
|
|
Remark |
The transporting medium: propene, and the density: 0.43tons/cbm. The lpg gas tank volume: 58.35 cubic meters. Tank overall dimension(Length*diameter): 12819*2472(mm), |
||
|
Chassis main parameters |
|||
|
Overall dimension (mm) |
13000×2500×3990 |
Tyre nos. |
12 |
|
Approach/departure angle(°) |
-/19 |
Tyre specification |
11.00R20 12PR,12R22.5 12PR |
|
Steel spring |
-/4/4/4,-/7/7/7 |
Front tread(mm) |
|
|
Fuel type |
|
Rear tread(mm) |
1840/1840/1840 |

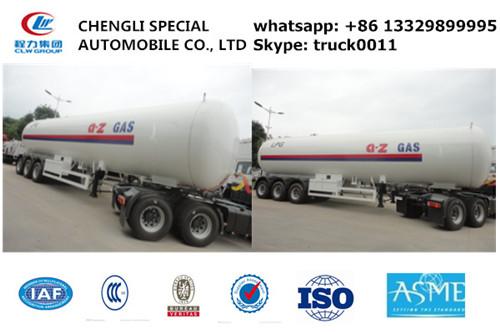

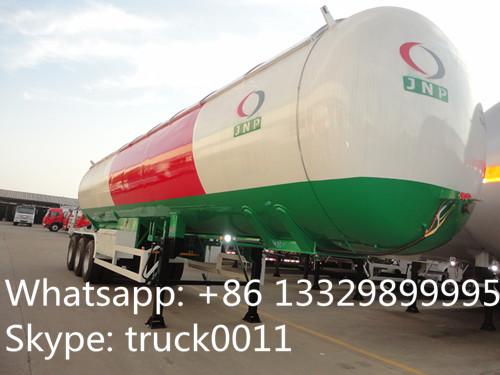

More pictures of hot sale propene trailer as below.
hot sale propene gas trailer
LPG tank semitrailer for LPG GAS(propene) adopts 13ton FUWA triple axles, 12 sets 12.00-20 vacuum tyre, and another spare tyre, JOST 28ton outrigger, JOST traction pin, fire extinguisher bottle, anti-static tape.
The standard devices are single outlet, double side loading and unloading, double valves boxes, double toolboxes, safety valve, temperature gauge, pressure gauge, cut off valves, 3 axles 13ton FUWA bridges, 12 sets12.00 vacuum tyres and 1 set spare tyre, JOST outriggers, JOST traction pin, one extinguisher bottle, steel flippers, with ABS, etc.
The LPG tanker semi-trailer is line with the GB150-1998, <<Supervision Regulation On Safety Technology for Pressure Vessel>>, <<Regulation of Safety Supervision for Liquefied Gas Tank Car>>.
We can also manufacture ASME standard lpg gas trailer, lpg gas tank, lpg gas truck, skid lpg gas filling plant, etc. And we can design and produce lpg gas pressure vessels customized.
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng.
Whatsapp/Wechat/Mob.: +86 13329899995
Skype: truck0011
QQ: 504873236
