CLW brand ASME standard 25tons bulk lpg gas trailer for sale, hot sale 25 metric tons lpg gas propane tank trailer
CLW brand ASME standard 25tons bulk lpg gas trailer for sale, hot sale 25 metric tons lpg gas propane tank trailer
Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl , methanol, butadiene, butane, ethylene oxide, etc.in low pressure liquefied gases at room temperature; volume from 10 cubic meters --- 120 cubic optional. Besides, the lpg gas tank, Chengli Special Automobile Co., Ltd. could offer lpg gas pressure vessels, such as lpg gas trailer, lpg gas delivery truck, lpg gas dispenser vehicle, lpg gas tank, skid lpg gas filling plant, etc. More information, please feel free to contact with Ms. Anita Deng. send email to truck0011@163.com; or talk to Anita directly by whatsapp/wechat: +86 13329899995.
|
Technical Parameter of 25ton LPG Tank trailer |
||||||
|
Item |
Unit |
Data |
||||
|
Semi-trailer |
Curb weight |
kg |
1500 |
|||
|
payload |
kg |
2500 |
||||
|
Gross vehicle weight |
kg |
40000 |
||||
|
capacity |
M3 |
59.52 |
||||
|
Pressure of leak test |
Mpa |
1.77 |
||||
|
Vehicle dimensions(L*W*H) |
13000*25000*3990 |
|||||
|
Full load |
Fifth wheel load |
kn |
15970 |
|||
|
Rear axle load |
kn |
23980 |
||||
|
Max. Vehicle roll angle |
≥350 |
|||||
|
Designed limited velocity |
Straight road |
Km/h |
80 |
|||
|
Turning |
Km/h |
20 |
||||
|
Tank |
Designed pressure |
Mpa |
1.61 |
|||
|
Designed temperature |
℃ |
50 |
||||
|
Filling medium |
Propane gas |
|||||
|
Tank material |
Q370R,Q345R |
|||||
|
Corrosion allowance |
mm |
1.0 |
||||
|
Tank mass |
kg |
10720 |
||||
|
Hydraulic test pressure |
Mpa |
2.66 |
||||
|
External dimensions (Diameter*thickness*length) |
mm |
2475*11.5*12840 |
||||
|
Vessel's sort |
The third kind |
|||||
|
Service years |
Ten years |
|||||
|
Urgent discount device |
Type |
Mpa |
QCY43-2.5 |
|||
|
Nominal pressure |
PN2.5 |
|||||
|
Nominal diameter |
Gas phase |
mm |
25 |
|||
|
Liquid phase |
mm |
25 |
||||
|
Operation way |
Hydraulic type |
|||||
|
Closing time |
sec |
less than 10 |
||||
|
Melting switch temperature |
℃ |
65~75 |
||||
|
Safety valve |
type |
A412F-2.5-16 |
||||
|
model |
Inner full lift |
|||||
|
Nominal pressure |
Mpa |
PN2.5 |
||||
|
Nominal diameter |
mm |
80 |
||||
|
Opening pressure |
Mpa |
1.86~1.94 |
||||
|
Closing pressure |
Mpa |
1.49~1.55 |
||||
|
Complete opening pressure |
Mpa |
<2.12 |
||||
|
Indicator Gauge |
type |
ZGM2.42/2.5 |
||||
|
Model |
Rotary type |
|||||
|
Nominal pressure |
Mpa |
2.5 |
||||
|
Surveying range |
mm |
0~2400 |
||||
|
precision |
2.5 grade |
|||||
|
Loading & unloading valve |
Valve type |
YKAG-3.3-6 YKAG-3.3-7 |
||||
|
model |
Quick tie-in |
|||||
|
Nominal diameter |
gas phase |
mm |
25 |
|||
|
Liquid phase |
mm |
50 |
||||

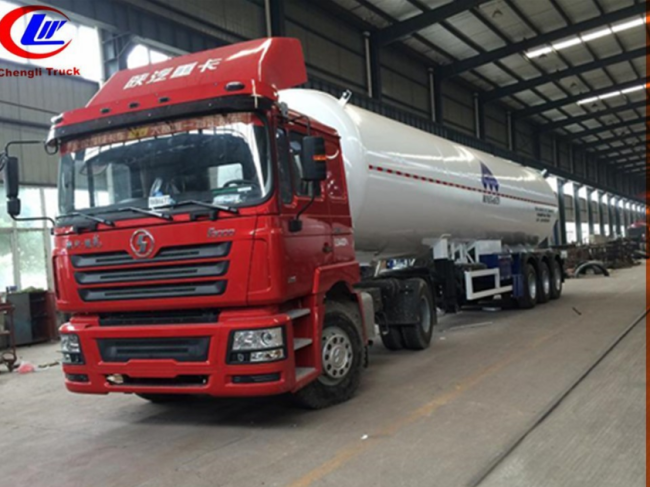

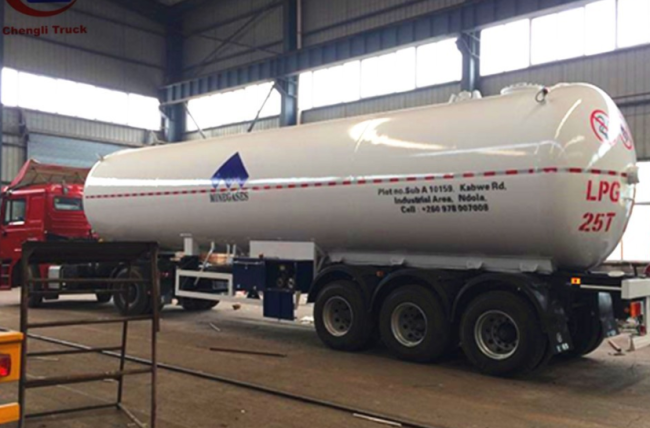

More pictures of hot sale ASME 25tons lpg gas trailer as below.
