CLW factory suppiy biggest 25.2t 60CBM 60000l 3 axles 12 wheels LPG gas trailer for sale, ASME standard lpg gas trailer

CLW factory suppiy biggest 25.2t 60CBM 3 axles 12 wheels LPG gas trailer for sale, ASME standard lpg gas trailer

60CBM LPG semitrailer,lpg tank trailer,lpg tanker trailer,liquid gas trailer,propane transport trailer,LPG tank semi trailer

China Hubei CLW factory suppiy biggest 25.2t 60CBM 60000l 3 axles 12 wheels LPG tank trailer

60CBM LPG semitrailer
1*30m3 to 60m3 trailer produced
2*BPW axles mounted
3*leaf spring suspension or air suspension
4*3C

1:DN2450*8
2:cylinder head
3:2.22Mpa water test pressure

Our company provide LPG tanks .LPG trucks and LPG trailers to wide range of customers across all over the world . We offer cylindrical and toroidal types of tanks for trucks.

Our products are ISO 9001:2000 Certified and also have CCC certificate . Our highest priority is to supply the best quality products and to prove superior service to our customers..We will be pleased to fulfill any further information you may require.

If you're interested in our CLW brand lpg gas tank trailer, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat: +86 13329899995.

"The best quality product at the lowest prices in the auto gas industry".

• 10 and 40ft and frame types
• Capacity range 10000 litres to 100000 litres
• Higher Capacities available on request
• Swap tank frame and 30ft beam-type frame available on request

Key Specifications/Special Features:

• Axle: three
• Rated loading capacity: 25000kg
• Kerb weight: 15,000kg
• Total weight: 40,000kg
• Overall dimensions: 13,000 x 2,490 x 3,990mm
• Wheel base: 6,610 + 1,350 + 1,350mm
• Wheel track: 1,830mm
• Tire: 11.00R20, 12.00R20, 11.00R22.5, 12.00R22.5
• Suspension: leaf spring
• Front overhang: 1,310mm
• Load capacity of fifth wheel: 15,800kg
• Capacity of axle: 24,000kg

• Items			Data	Items			Data
  Semi-trailer	Kerbweight		15000 Kg	Tank	Design pressure		1.61 Mpa
  	Payload (Product weight)		25000Kg		Design temperature		+-50
  	Gross Vehicles Weight (GVW)		40000 Kg		Filling medium		LPG
  	Water capacity		59.62m3		Tank material		16MnR,Q345R
  	Pressure of leak test		1.61Mpa		Corrosion allowance		1.0mm
  	External Dimensions (length×width×height)		13000x2500x3990		Tank mass		15000Kg
  					Hydraulic test pressure		2.66 Mpa
  	Full load	Fifth wheel load	16030KN		External Dimensions Internal diameter×Thickness×Length		DN2475x11.5x12837
  		Rear axle load	23970KN
  	Max. vehicle roll angle		≥350
  	Design the limited velocity	Straight road	80 Km/h		Vessel's sort		The third kind
  		Turning	20 Km/h		Service Years		Ten years
  U. V	Type		QGY43-2.5	S . V	Type		A412F-2.5-16
  	Nominal pressure		PN2.5Mpa		Model		Inner full lift
  	Nominal diameter	Gas phase	DN 25mm		Nominal pressure		PN2.5 MPa
  		Liquid phase	DN 50mm		Nominal diameter		DN80mm
  	Operation way				Opening pressure		1.86~1.94 MPa
  	Closing time		≤10 Sec		Closing pressure		1.49~1.55MPa
  	Melting switch temperature		70±5		Complete opening pressure		<2.12 MPa
  I. L	Type		ZGM2.42/2.5	L.U. S	Valve type		YKAG-3.3-6 /YKAG-3.3-7
  	Model		Rotary type		Model		Quick tie-in
  	Nominal pressure		PN2.5Mpa		Nominal Diameter	Gas phase	DN25mm
  	Surveying range		02400mm			Liquid phase	DN50mm
  	Precision		2.5 Grade
  Standard configuration : BPW(12T)JOST Supporting legking pintwo outlets valve case(two pressure meterthermometeremergency cutting valve and ball valve) safe valvetwo tool cases and spare wheel

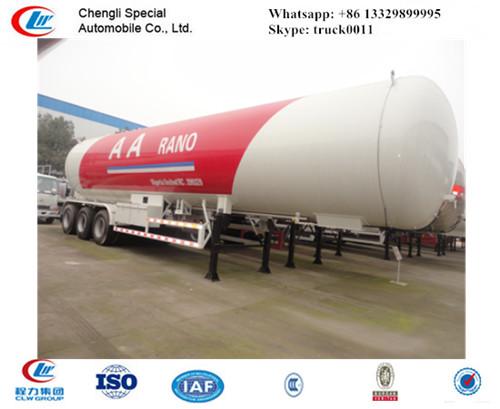

More pictures of hot sale CLW brand 60cbm 3 axles bulk lpg gas trailer as below.

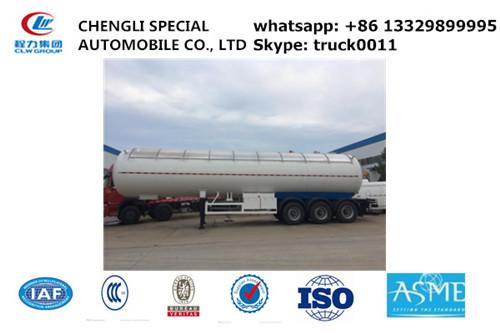

25tons lpg gas trailer with sunshield for sale

China leading manufacturer and supplier of lpg gas pressure vessels

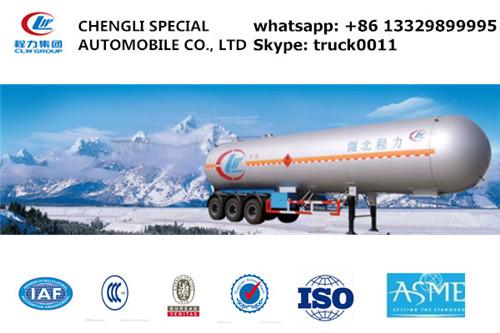

25tons bulk propane gas trailer for sale
