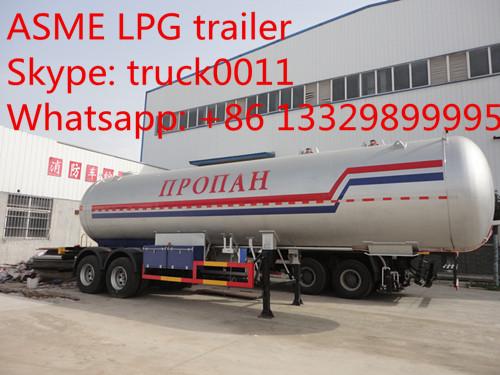

ASME 2 axle LPG tank trailer 40500L for sale, factory direct sale 2 axles BPW propane gas tank semitrailer for sale
ASME 2 axle LPG tank trailer 40500L for sale, factory direct sale 2 axles BPW propane gas tank semitrailer for sale

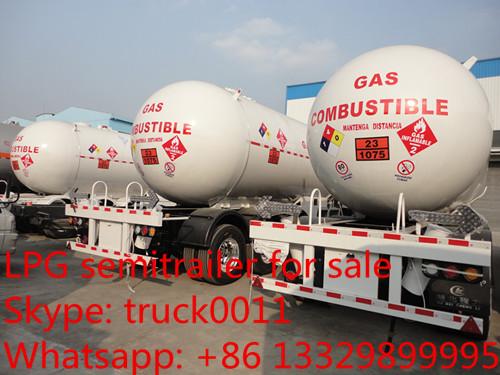

LPG tank semi traileris also calledLPG tank Semi -trailer, LPG tank semi trailer transport trailer,iswidely used in transporting kinds of LPG. It has large loading quality , safe, stable,etc features.
Production notes:
1, certificate ISO9001,3C, ASME standard
2 High quality, low price.
3 Loading LPG tanker volume40.5m3 to 58.5m3

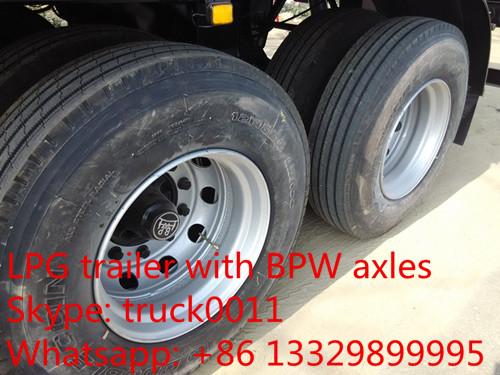

4 Fuwa, L1 or BPW 2 axles or 3 axles.
5,Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Technical Parameterof3 axles LPG tank semi trailer:
|
Items |
Data |
Items |
Data |
||||
|
LPG Tanker Semi-trailer |
Kerbweight |
16950 Kg |
Tank |
Design pressure |
2.16Mpa |
||
|
Payload (Product weight) |
23000 Kg |
Design temperature |
50℃ |
||||
|
Gross Vehicles Weight (GVW) |
39950 Kg |
Filling medium |
liquid ammonia |
||||
|
Capacity |
56.76 m3 |
Tank material |
16MnR |
||||
|
Pressure of leak test |
1.77 Mpa |
Corrosion allowance |
1.0mm |
||||
|
VehicleDimensions (L x W x H)
|
12700x2500x3975
|
||||||
|
Tank mass |
10720Kg |
||||||
|
Hydraulic test pressure |
2.66 Mpa |
||||||
|
Full load |
Fifth wheel load |
15970KN |
External Dimensions Diameter×Thickness×Length |
DN2420x14x12398
|
|||
|
Rear axle load |
23980KN |
||||||
|
Max. vehicle roll angle |
≥350 |
||||||
|
Design the limited velocity |
Straight road |
80 Km/h
|
Vessel's sort |
The third kind |
|||
|
Turning |
20 Km/h |
Service Years |
Ten years |
||||
|
Urgent Discount Device |
Type |
QGY43-2.5 |
SafetyValve |
Type |
A412F-2.5-16 |
||
|
Nominal pressure |
PN2.5Mpa |
Model |
Inner full lift |
||||
|
Nominal diameter |
Gas phase |
DN 25mm |
Nominal pressure |
PN2.5 MPa |
|||
|
Liquid phase |
DN 50mm |
Nominal diameter |
DN80mm |
||||
|
Operation way |
hydraulic |
Opening pressure |
1.86~1.94 MPa |
||||
|
Closing time |
≤10 Sec |
Closing pressure |
1.49~1.55MPa |
||||
|
Melting switch temperature |
70±5℃ |
Complete opening pressure |
<2.12 MPa |
||||
|
IndicatorGauge |
Type |
ZGM2.42/2.5 |
Loading and unloading valve |
Valve type |
YKAG-3.3-6 /YKAG-3.3-7 |
||
|
Model |
Rotary type |
Model |
Quick tie-in |
||||
|
Nominal pressure |
PN2.5Mpa |
Nominal Diameter |
Gas phase |
DN25mm |
|||
|
Surveying range |
0~2400mm |
Liquid phase |
DN50mm |
||||
|
Precision |
2.5 Grade |
||||||
