ASME SONCAP 56000L LPG gas tank semi trailer,best price CLW Brand 56cubic meters lpg gas propane trailer for sale
ASME SONCAP 56000L LPG semi trailer, BRAND NEW 56000L LPG tank, 56000L LPG tank trailer for Nigeria, ASME SONCAP 40000L LPG gas tank trailer, used LPG tank semi-trailer, 56000L LPG tanker trailer for Nigeria
LPG Tank Semi-Trailer is also called LPG transport tanker trailer, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality , safe, stable,etc features.
ASME SONCAP 56000L LPG semi trailer, BRAND NEW 56000L LPG tank, 56000L LPG tank trailer for Nigeria ,ASME used LPG transport trailer, LPG transport semi-trailer, used truck LPG transport semi trailer for sale
Production notes:
1, certificate ISO9001,3C, ASME
2, High quality, low price.
3, Loading LPG volume, 40cbm, 50cbm, 56cbm, 59.52cbm
4 Fuwa, L1 or BPW 3 axles.
5,Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
6, Q345R, Q370R high tensile strength steel.
7, With Sun visor as optional.
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.

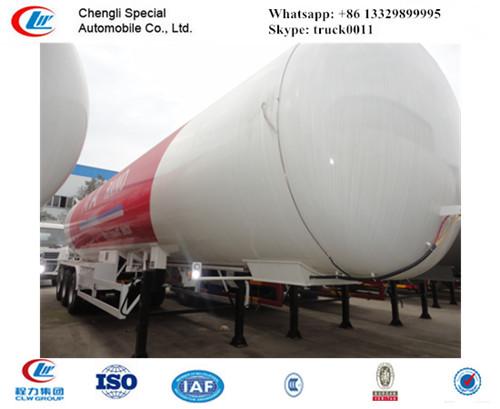

The pictures of ASME SONCAP 56000L LPG semi trailer, BRAND NEW 56000L LPG tank, 56000L LPG tank trailer for Nigeria :
Technical Parameter of ASME BPW axle LPG tank trailer, 56 cubic meters LPG transport tanker, 56000L LPG tanker trailer for Africa:
|
Items |
Data |
Items |
Data |
||||
|
Semi-trailer |
Kerb weight |
16950 Kg |
Tank |
Design pressure |
2.16 M pa |
||
|
Payload (Product weight) |
23000 Kg |
Design temperature |
50 ℃ |
||||
|
Gross Vehicles Weight (GVW) |
39950 Kg |
Filling medium |
liquid ammonia |
||||
|
Capacity |
56.76 m3 |
Tank material |
16MnR |
||||
|
Pressure of leak test |
1.77 M pa |
Corrosion allowance |
1.0mm |
||||
|
Vehicle Dimensions (L x W x H )
|
12700x2500x3975
|
||||||
|
Tank mass |
10720Kg |
||||||
|
Hydraulic test pressure |
2.66 M pa |
||||||
|
Full load |
Fifth wheel load |
15970KN |
External Dimensions Diameter× Thickness ×Length |
DN2420x14x12398
|
|||
|
Rear axle load |
23980KN |
||||||
|
Max. vehicle roll angle |
≥350 |
||||||
|
Design the limited velocity |
Straight road |
80 Km/h
|
Vessel's sort |
The third kind |
|||
|
Turning |
20 Km/h |
Service Years |
Ten years |
||||
|
Urgent Discount Device |
Type |
QGY43-2.5 |
Safety Valve |
Type |
A412F-2.5-16 |
||
|
Nominal pressure |
PN2.5Mpa |
Model |
Inner full lift |
||||
|
Nominal diameter |
Gas phase |
DN 25mm |
Nominal pressure |
PN2.5 MPa |
|||
|
Liquid phase |
DN 50mm |
Nominal diameter |
DN80mm |
||||
|
Operation way |
hydraulic |
Opening pressure |
1.86~1.94 MPa |
||||
|
Closing time |
≤10 Sec |
Closing pressure |
1.49~1.55MPa |
||||
|
Melting switch temperature |
70±5℃ |
Complete opening pressure |
<2.12 MPa |
||||
|
Indicator Gauge |
Type |
ZGM2.42/2.5 |
Loading and unloading valve |
Valve type |
YKAG-3.3-6 /YKAG-3.3-7 |
||
|
Model |
Rotary type |
Model |
Quick tie-in |
||||
|
Nominal pressure |
PN2.5Mpa |
Nominal Diameter |
Gas phase |
DN25mm |
|||
|
Surveying range |
0~2400mm |
Liquid phase |
DN50mm |
||||
More pictures of CLW lpg trailer as below.
